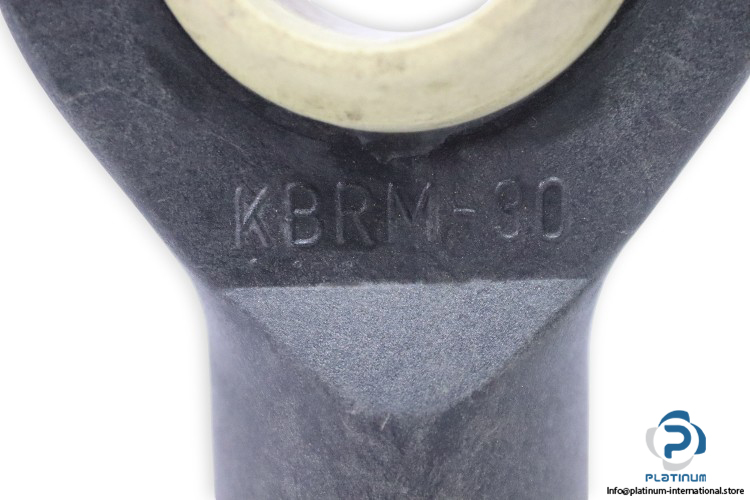

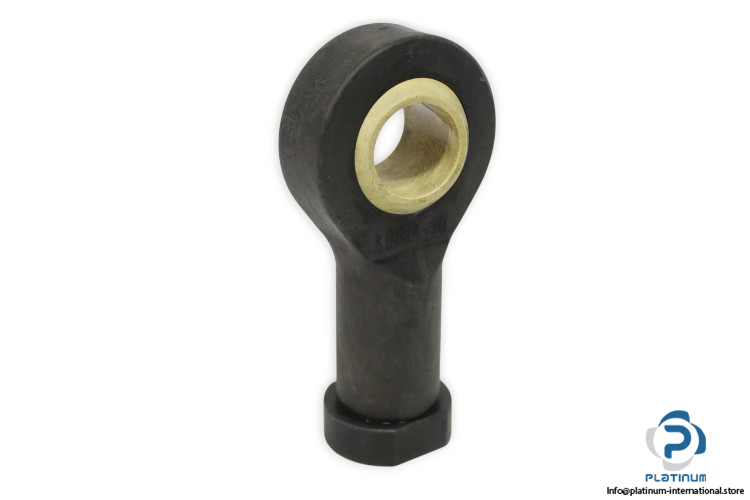

Igus KBRM30 Right-Hand Rod End with Female Thread
The Igus KBRM30 is a precision-engineered right-hand rod end with a female thread, designed for reliable linkage and mechanical connection in motion systems and automation setups.
Manufacturer: Igus
Type: Right-Hand Rod End with Female Thread
Model: KBRM30

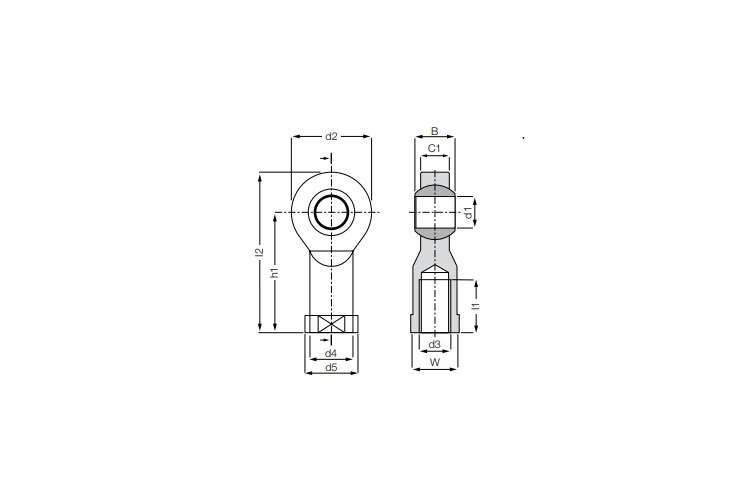

| Width B | 37 mm |
| Thread d3 | M30 x 2.0 |
| Hole Diameter d1 | 30 mm |
| Max. Pivot Angle | 22° |
| d2 | 70 mm |
| d4 | 37.0 mm |
| d5 | 50 mm |
| C1 | 25 mm |
| h1 | 110 mm |
| L1 | 50 mm |
| L2 | 145 mm |
