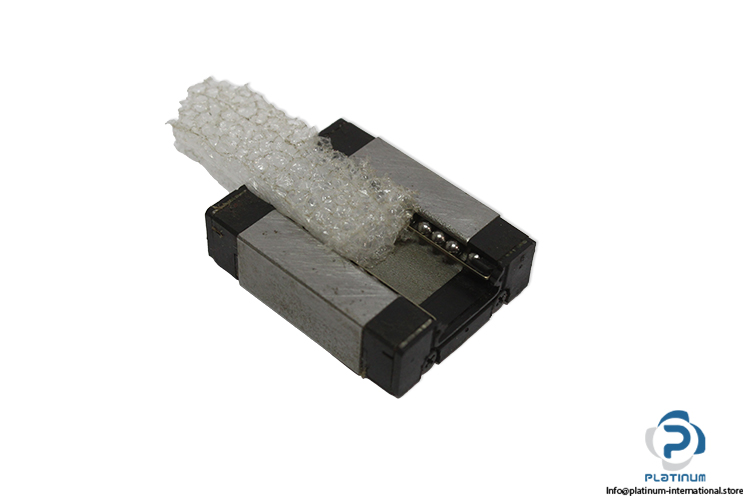

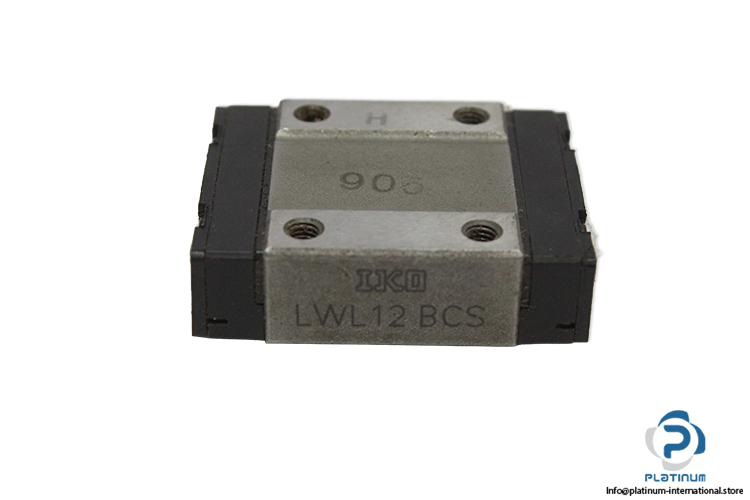

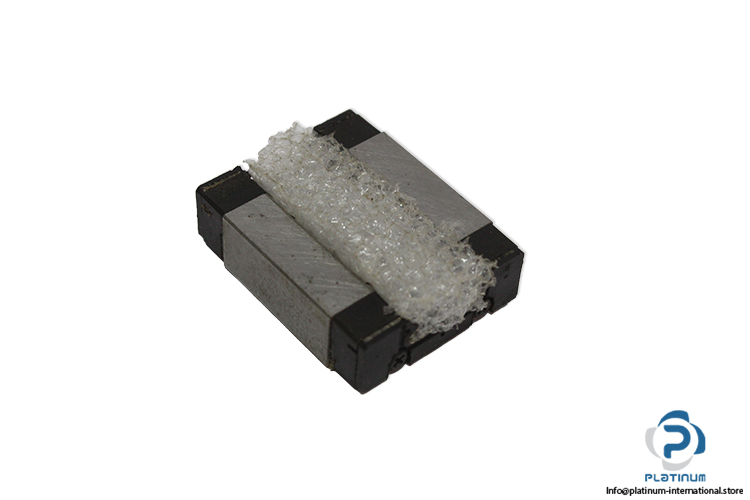

IKO LWL12 BCS Linear Guideway Block
IKO LWL 12 BCS Linear Guideway Block
The IKO LWL 12 BCS linear guideway block is a precision square-type slide unit designed for smooth linear motion and high load capacity in compact automation systems.
Manufacturer: IKO
Type: Linear Guideway Block
Model: LWL 12 BCS
Size: 12
Ideal for precision positioning systems, CNC machinery, semiconductor equipment, and compact automation assemblies.
Please contact us via Ask for assistance with any inquiries.
| Basic Dynamic Load Rating (C) | 3330 N |
| Basic Static Load Rating (C0) | 4290 N |
| Block Type | Square Type |
| Structure | Ball-Retained Type |
| Block Material | BCS, High Carbon Steel Made |
| Static Moment Rating | T0: 26.6 Nm, TX: 93.1 Nm, TY: 78.2 Nm |
| Mounting Part of Slide Unit Corner Radius (R1) | 0.4 mm |
| Total Height (H) | 13 mm |
| Block Width (W2) | 27 mm |
| Block Length (L1) | 35 mm |
| W3 | 20 mm |
| L2 | 15 mm |
| H3 | 2.7 mm |
