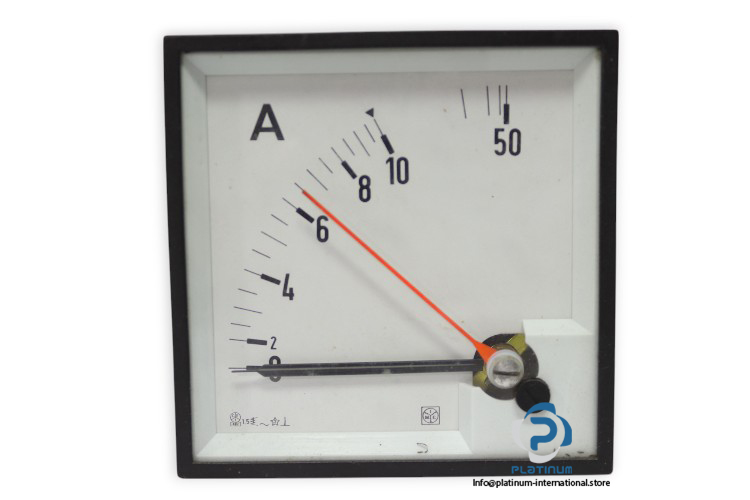

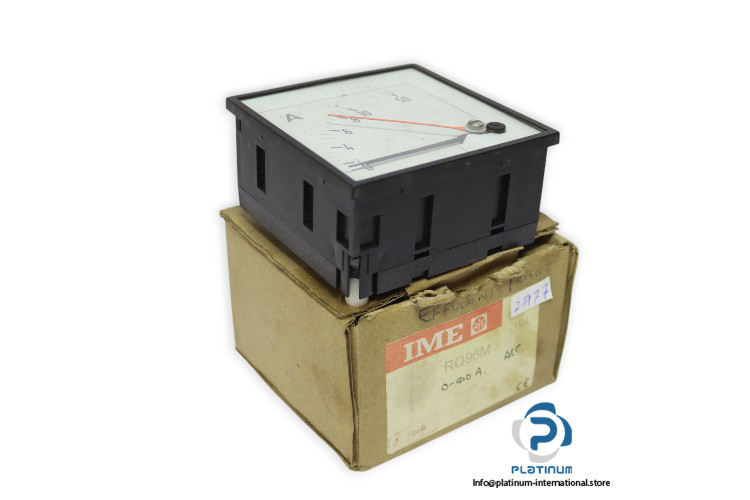

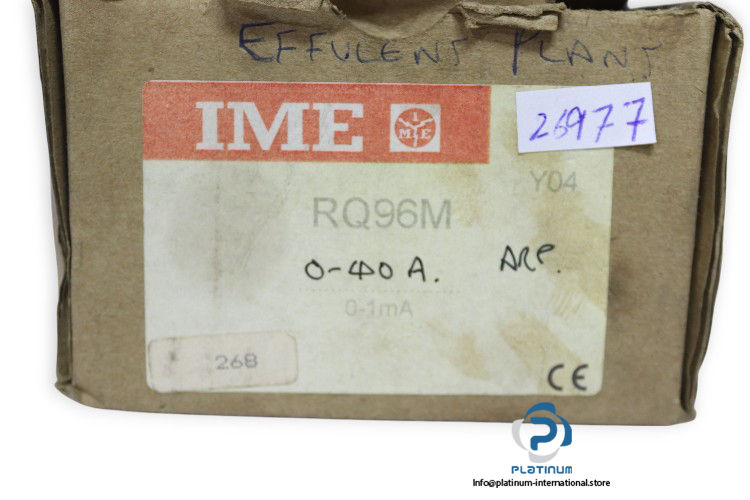

IME RQ96M ANALOG AMMETER
Precision analog ammeter from IME for real-time current monitoring. The RQ96M features direct connection, high-visibility scale, and durable construction for panel installations.
Manufacturer: IME
Type: Analog Ammeter
Model: RQ96M
Ref. Code: Y04
Ref. No.: 268
Technical Specifications
- Measuring Range: 0 to 50 A
- Meter Type: Instantaneous Current
- Movement Type: Moving Coil
- Dimensions: 96 × 96 mm
- Panel Cut-out: 92 × 92 mm
- Depth: 69 mm
- IP Rating: IP52 (front), IP20 at terminals
- Connection: Direct (no external shunt required)
- Scale: 90 degrees deflection, 0 to full scale
- Operating Temperature: -25 to 50¯°C
