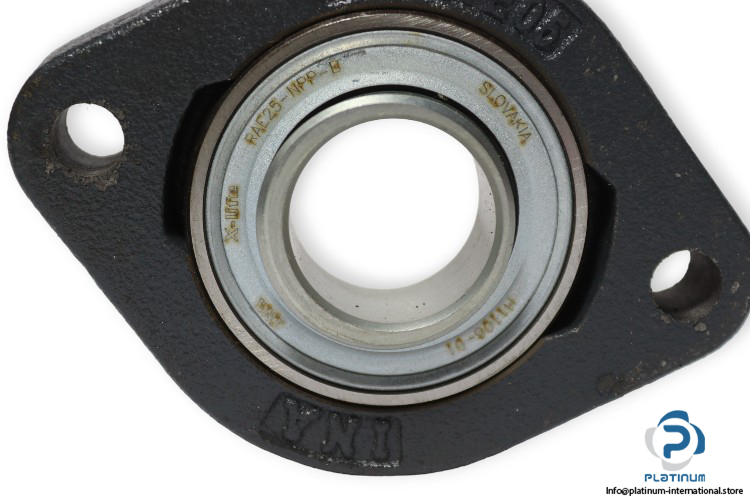

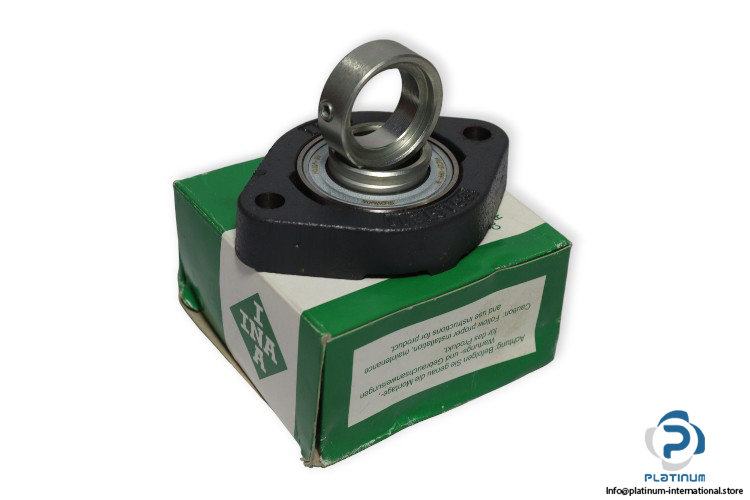

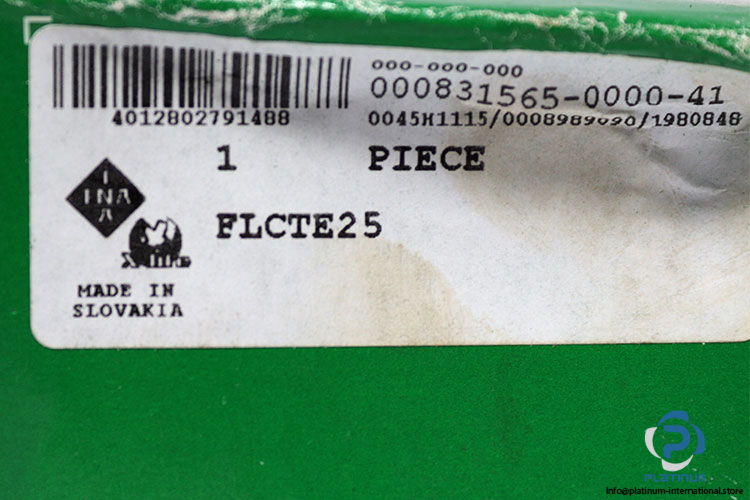

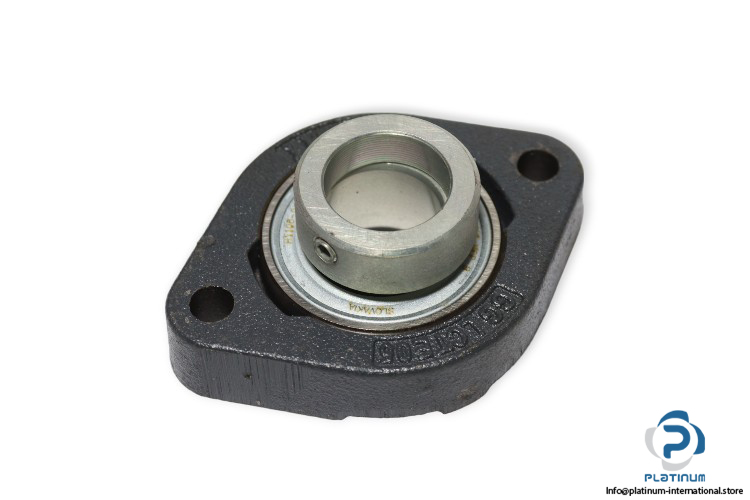

INA FLCTE25 Flanged Housing Unit

Name: INA FLCTE25 FLANGED HOUSING UNIT
SKU: 1030805
Availability: LimitedAvailability

ina-FLCTE25-flanged-housing-unit-(new)-(carton)

ina-FLCTE25-flanged-housing-unit-(new)-(carton)-1

ina-FLCTE25-flanged-housing-unit-(new)-(carton)-2

ina-FLCTE25-flanged-housing-unit-(new)-(carton)-3

ina-FLCTE25-flanged-housing-unit-(new)-(carton)-4

신제품

재고 있음23 단위즉시 배송 가능

제조사: INA 유형: 플랜지 하우징 유닛 모델: FLCTE25 교체품: FLCTE25-XL 하우징: LCTE05 베어링 명칭: RAE25-XL-NPP-B

SKU

1030805

카테고리

Plummer Block Housing Units

상태

신제품

2-Bolt 25 bearing bearings flanged Housing Ina mm Oval Schaeffler Unit Units Žhousing

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: INA
Type: Flanged Housing Unit
Model: FLCTE25
Replaces: FLCTE25-XL
Housing: LCTE05
Bearing designation: RAE25-XL-NPP-B

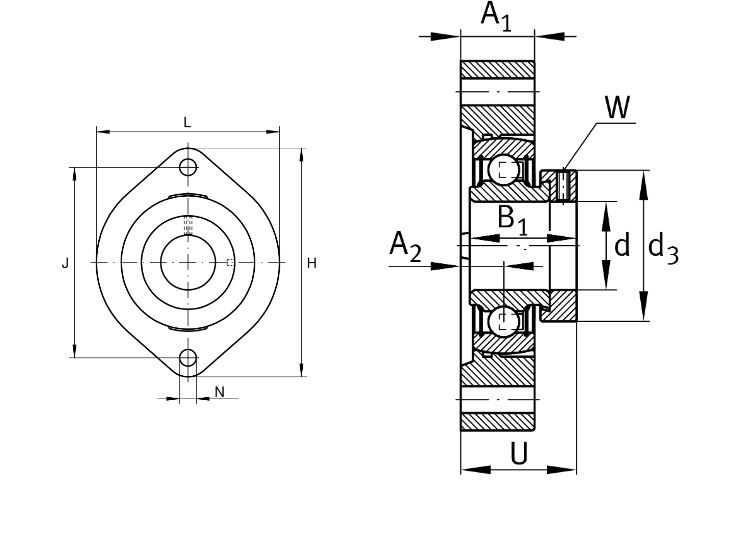

Bore Diameter d: 25 mm
Flange width L: 71 mm
Height flange H: 97 mm
Total height unit U: 33.4 mm
Distance fixing bore J: 76.2 mm
Fixing bore N: 9 mm
Basic dynamic load rating: 14000 N
Basic static load rating: 7800 N
Fatigue load limit: 410 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron
Locking device: eccentric locking collar
