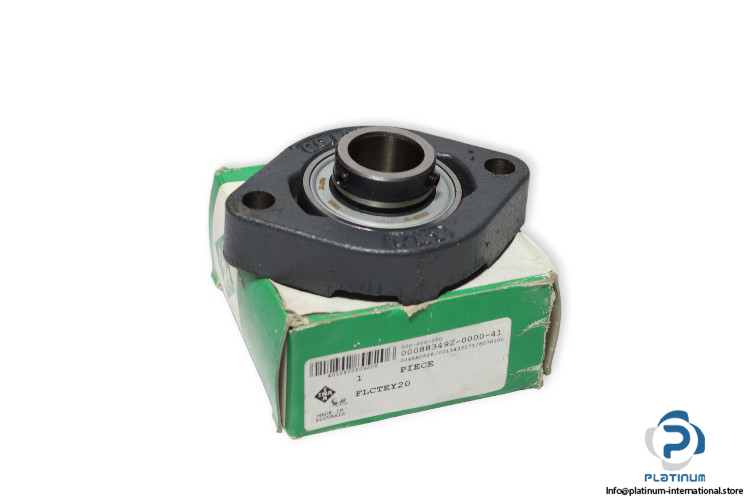

INA FLCTEY20 Flanged Housing Unit
Manufacturer: INA
Type: two-bolt flanged housing units
Model: FLCTEY20
Replaces: FLCTEY20-XL
Housing: GG.LCTE04

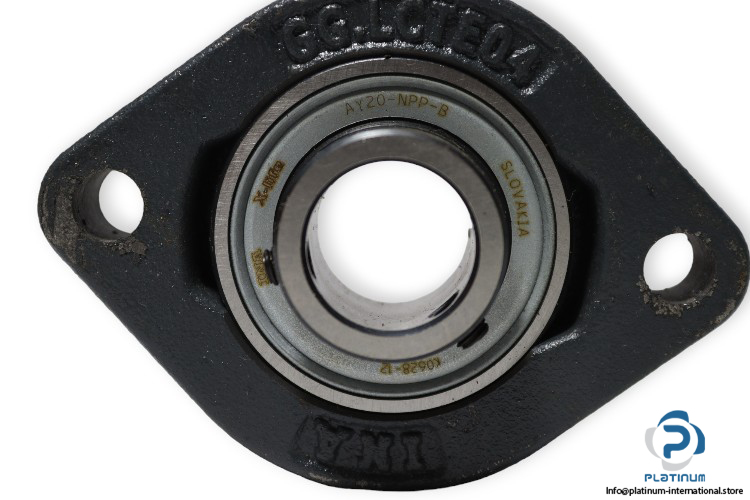

Bearing designation: AY20-NPP-B

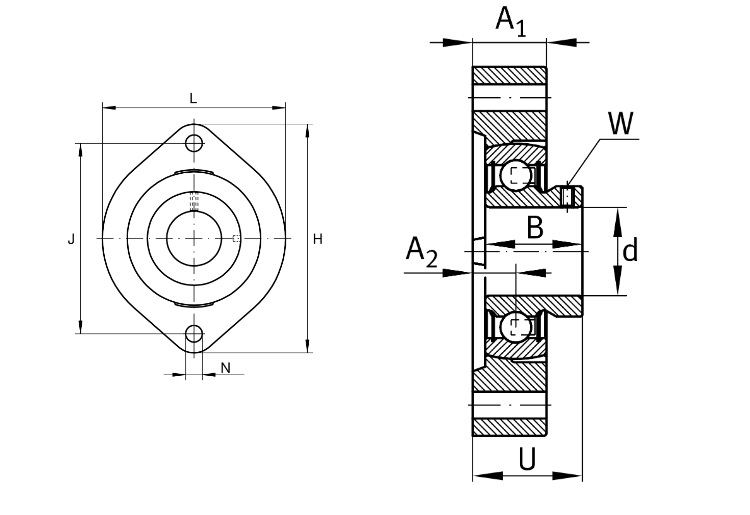

Bore Diameter d: 20 mm
Flange width L: 66.5 mm
Height flange H: 90.5 mm
Total height unit U: 27 mm
Distance fixing bore J: 71.4 mm
Fixing bore N: 9 mm
Basic dynamic load rating: 13600 N
Basic static load rating: 6600 N
Fatigue load limit: 345 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron
