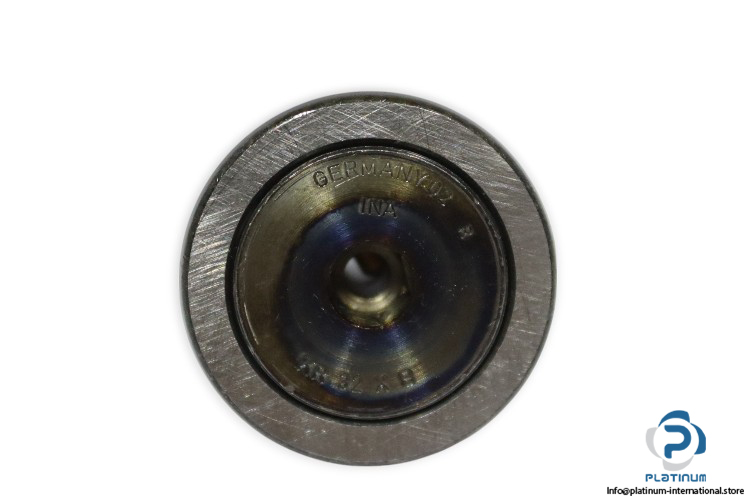

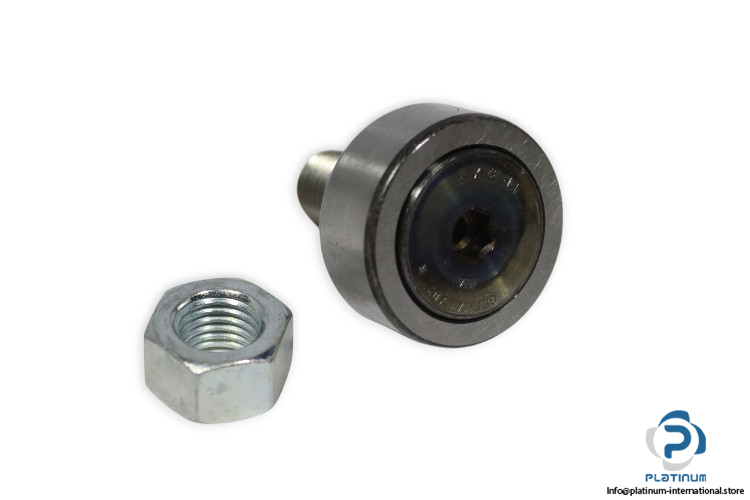

INA KR32 XB Stud Type Track Roller
스터드형 트랙 롤러 Schaeffler INA KR32XB 스터드형 트랙 롤러는 32mm 외경, M12 X 1.5 나사 및 원통형 외륜 프로파일을 갖추어 산업용 응용 분야에 높은 하중 용량과 신뢰성을 제공합니다.
Schaeffler INA KR32XB Stud Type Track Roller
The Schaeffler INA KR32XB Stud Type Track Roller is a precision-engineered roller designed for applications requiring high load capacity and reliable performance. Featuring a cylindrical outer ring profile and gap seals, this roller provides optimal efficiency and durability for demanding systems.
Manufacturer: Schaeffler INA
Type: STUD TYPE TRACK ROLLER
Model: KR32XB
Basic Load Ratings, Radial:
Engineered for high performance, the Schaeffler INA KR32XB Stud Type Track Roller ensures reliable operation under high load and demanding conditions, making it ideal for a wide range of industrial applications.
| Outside Diameter (D) | 32 mm |
| Fit Diameter of Roller Stud (d1) | 12 mm |
| Width of the Roller Stud (B) | 40 mm |
| Roller Width (B1) | 15.2 mm |
| Thread (G) | M12 X 1.5 |
| Thread Length | 13 mm |
| Dynamic (Cr w) | 7100 N |
| Static (C0r w) | 9300 N |
| Fatigue Load Limit (Cur w) | 1320 N |
| Speed on Permanent Grease Lubrication | 5500 1/min |
| Sealing | Gap seal on both sides |
| Outer Ring Profile | X, Cylindrical profile |
