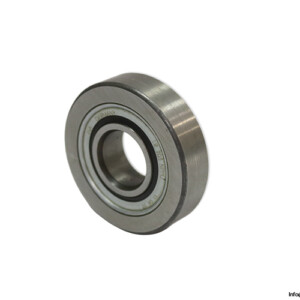

INA LR 203 Nppu Track Roller
재고 있음3 단위즉시 배송 가능
최적화된 립 씰, 높은 하중 용량 및 원활한 선형 동작을 위한 영구 그리스 윤활이 적용된 INA LR 203 NPPU 요크형 트랙 롤러.
신제품
재고 있음
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

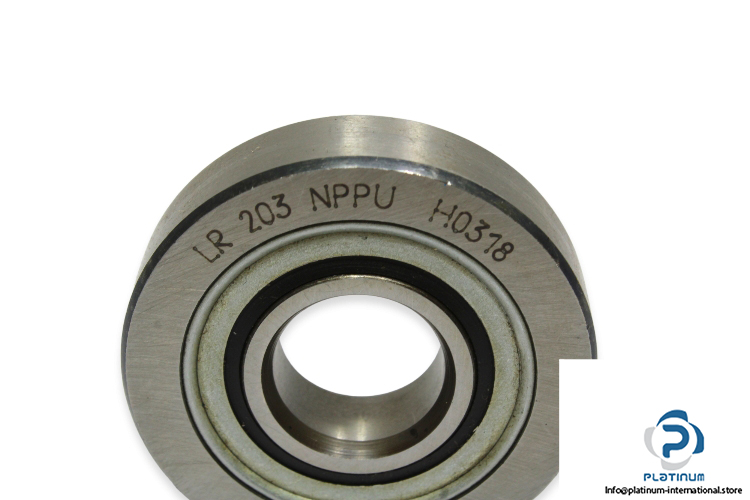

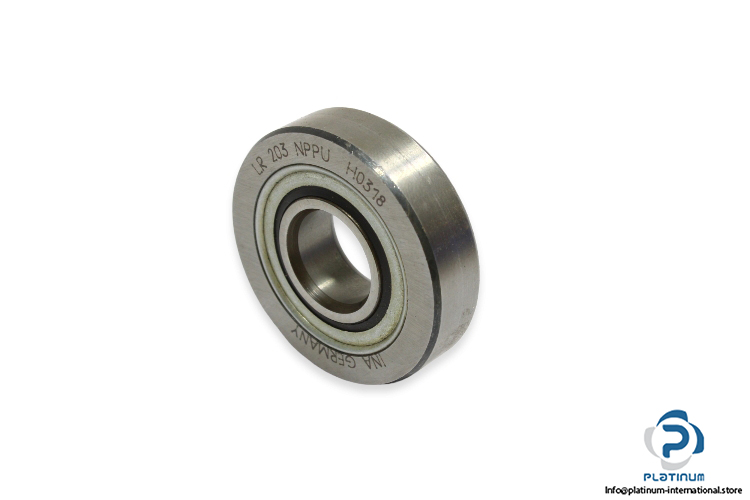

INA LR 203 NPPU Track Roller
The INA LR 203 NPPU is a yoke type track roller designed for precise guidance and reliable load carrying in linear motion and cam follower applications. It features optimized sealing geometry to ensure low friction and long service life under continuous operation.
Manufacturer: INA / Schaeffler
Type: Yoke Type Track Roller
Model: LR 203 NPPU
Replaces: LR203-2RS
| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 47 mm |
| Height (C) | 12 mm |
| Dynamic Load Rating (Cr) | 8,900 N |
| Static Load Rating (C0r) | 4,550 N |
| Fatigue Load Limit (Cur w) | 229 N |
| Speed (Permanent Grease Lubrication) | 9,000 rpm |
| Sealing | Lip seal on both sides with optimized geometry, low friction |
