INA NATR40 Yoke Type Track Roller

Name: INA NATR40 YOKE TYPE TRACK ROLLER
Brand: INA Schaeffler
SKU: 1058157
Availability: LimitedAvailability

신제품

재고 있음4 단위즉시 배송 가능

요크형 트랙 롤러 INA Schaeffler NATR40 요크형 트랙 롤러는 40mm 보어 직경과 80mm 외경을 가지며, 까다로운 산업용 응용 분야에서 높은 동적 하중 용량과 원활한 성능을 제공합니다.

제조업체

INA Schaeffler

SKU

1058157

카테고리

Support Rollers

상태

신제품

40 80 bearing bore Capacity Control diameter Dynamic High Ina Industrial Load mm Motion NATR40 Outer Rating reliable Roller Schaeffler Static track Type Yoke

방대한 재고

글로벌 배송

전문 지원

품질 보장

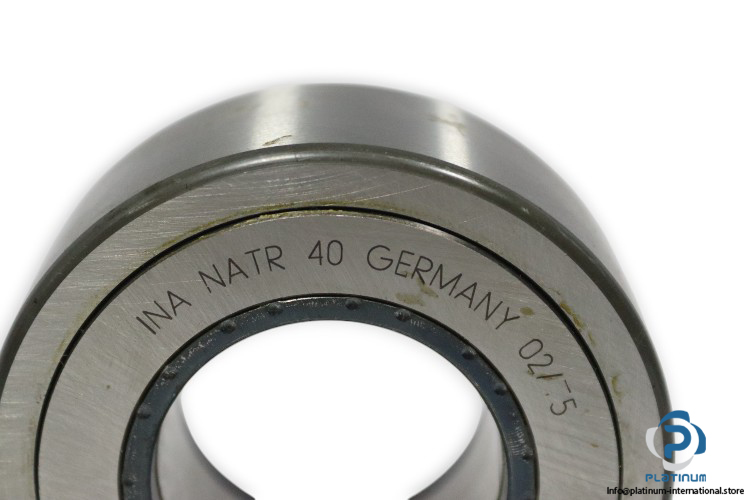

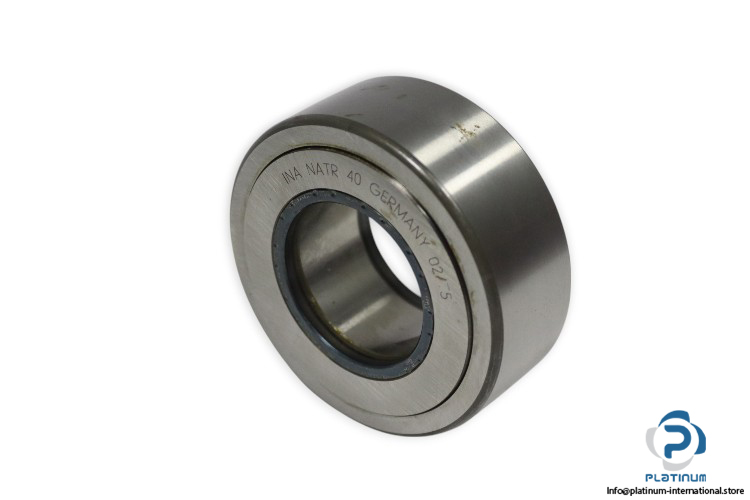

INA Schaeffler NATR40 Yoke Type Track Roller

The INA Schaeffler NATR40 Yoke Type Track Roller is designed for smooth motion and reliable performance under heavy loads. This high-quality track roller is ideal for various industrial applications requiring precise and durable motion control.

Manufacturer: INA Schaeffler

Type: YOKE TYPE TRACK ROLLER

Model: NATR40

This Yoke Type Track Roller provides high load capacity and reliable performance in high-speed environments, ensuring optimal performance in industrial machinery and systems.

Bore Diameter (d)	40 mm
Outer Diameter (D)	80 mm
Bearing Width (B)	32 mm
Basic Dynamic Load Rating	49000 N
Basic Static Load Rating	94000 N
Limit Speed	1700 1/min
Effect Static Load	59000 N
Effect Dynamic Load Outer Ring	33000 N
