INA RNA-NA 4904.2RS-RS Needle Roller Bearing
신제품
재고 있음4 단위즉시 배송 가능
니들 롤러 베어링 고성능 INA 니들 롤러 베어링으로, 콤팩트한 디자인, 이중 실링(2RS) 및 높은 하중 용량을 갖추어 까다로운 산업 응용에 적합합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

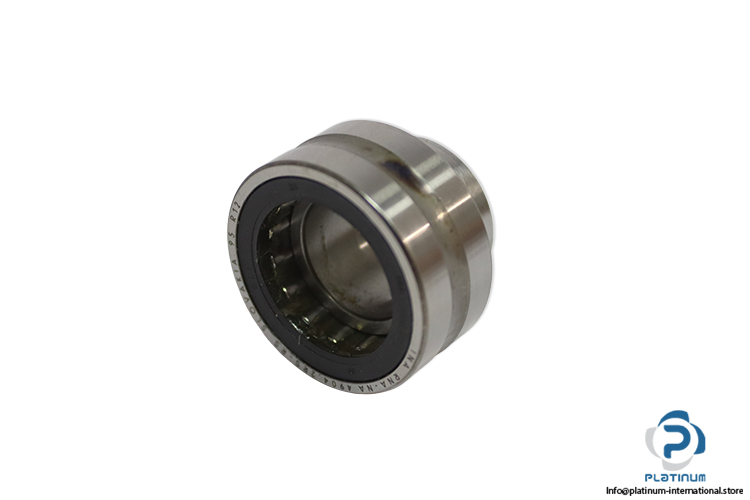

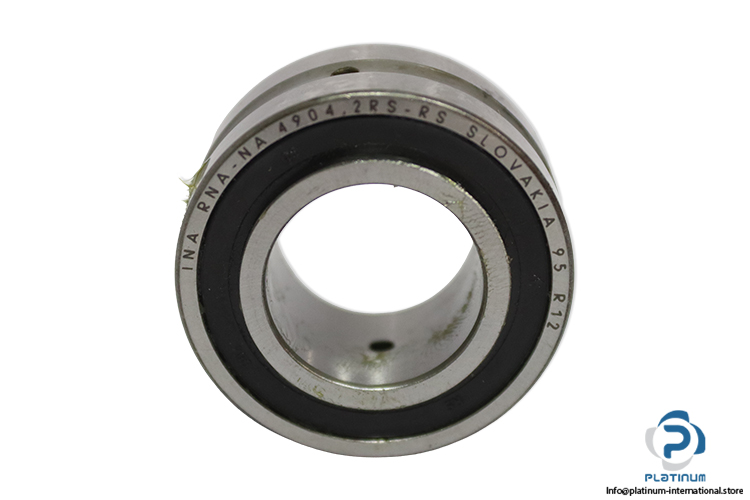

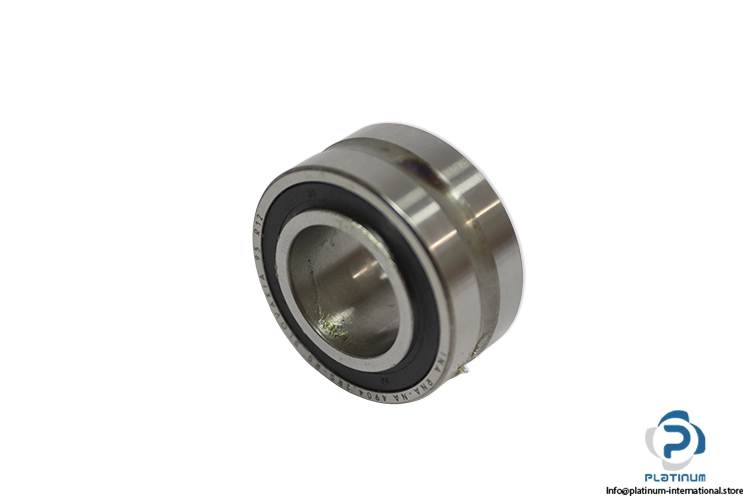

INA RNA-NA 4904.2RS-RS Needle Roller Bearing
The INA / Schaeffler RNA-NA 4904.2RS-RS Needle Roller Bearing is designed for high load capacity and compact installation spaces. Featuring precision needle rollers and double sealing, this bearing ensures reliable performance, reduced friction, and extended service life in demanding industrial applications.
Manufacturer: INA / Schaeffler
Type: Needle Roller Bearing
Model: RNA-NA 4904.2RS-RS
| Under Roller Diameter (Fw) | 20 mm |
| Outer Diameter (D) | 37 mm |
| Width (B) | 17 mm |
| Basic Dynamic Load Rating, Radial (C) | 19,500 N |
| Basic Static Load Rating, Radial (C0r) | 19,900 N |
| Fatigue Load Limit, Radial (Cur) | 3,800 N |
| Limiting Speed | 10,100 1/min |
| Sealing | 2RS, Contact Seal on Both Sides |
| Operating Temperature Range | -20 to 100 °C |
| Recommendation | Ideal choice for compact high-load applications”upgrade your system with this durable sealed bearing to reduce maintenance and extend equipment lifespan. |
