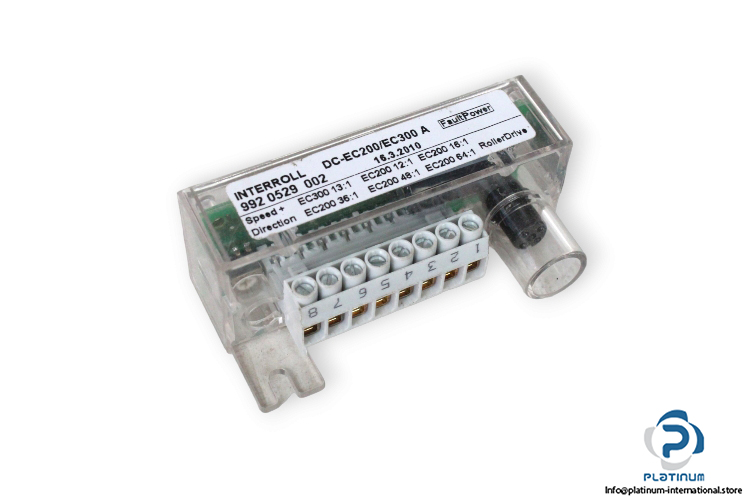

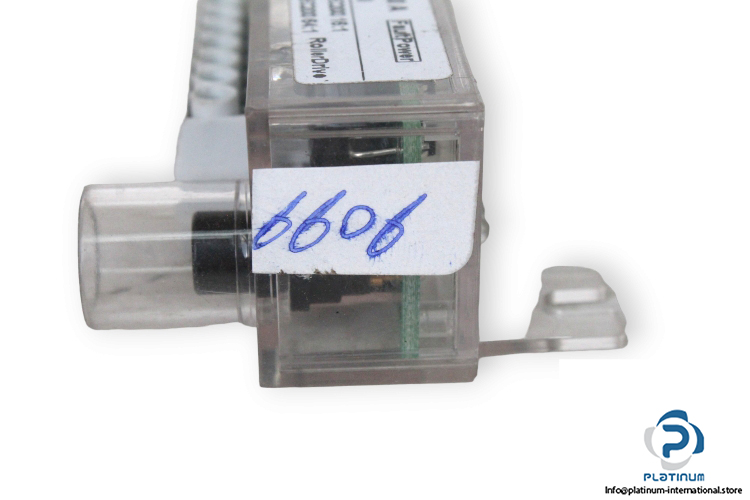

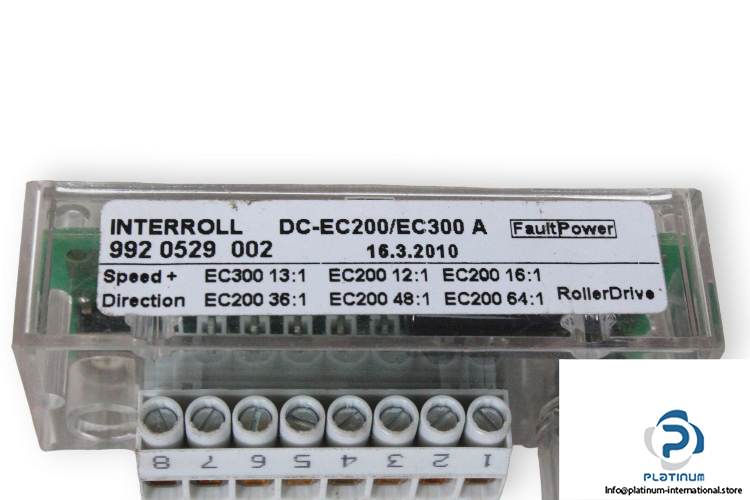

Interroll DC-EC200/EC300 A Roller Drive Controller
신제품
재고 있음6 단위즉시 배송 가능
제조사: INTERROLL 유형: 롤러 구동 컨트롤러 모델: DC-EC200/EC300 A 부품 번호: 992 0529 002
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: INTERROLL
Type: Roller Drive Controller
Model: DC-EC200/EC300 A
Part No.: 992 0529 002
Nominal voltage: 24 VDC
Voltage range: 18 to 30 VDC
Voltage ripple tolerance: < 5%, < 1% recommended
Continuous current input: 4 A
Peak current output4 AFuse: 4 A slow blow
Protection classification: IP40
Ambient temperature for operation: 0 °C to 40 °C
Ambient temperature changes: max. 1 °K/min; 3 h; two cycles
Installation altitude above sea level: max. 1000 m (max. 3300 ft)
