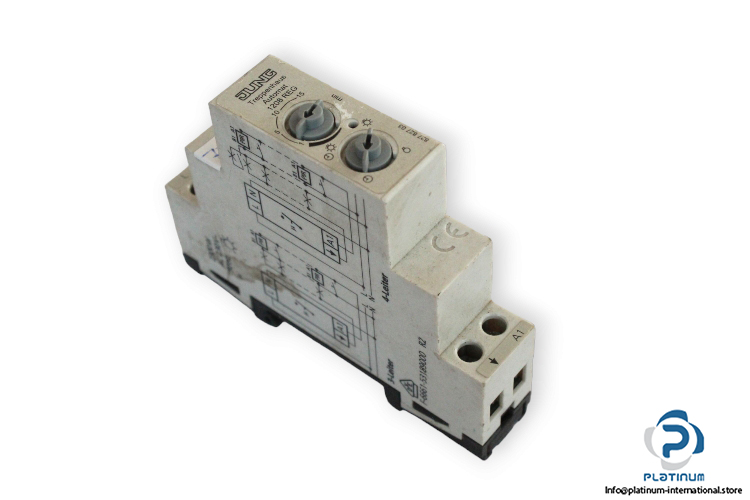

Jung 1208 REG Staircase Machine
Manufacture: Jung
Type: Staircase machine
Model: 1208 REG
Nominal voltage: 230 V AC
Mains frequency: 50 Hz
Power consumption: approx. 1 W
Follow-up time: approx. 10 s … 15 min
Current carrying capacity of control input A1: max. 40 mA
Switching voltage: 250 V AC
switching current: 16 A
Inrush current 20 ms: max. 165 A
Total length of load cable: max. 100 m
Connection: screw terminals
Ambient temperature: 5 … +45°C
