Kaller CU4 420-32 GAS Spring Actuator

재고 있음2 단위즉시 배송 가능

Gas Spring Actuator

The Kaller CU4 420-32 Gas Spring Actuator features a 25 mm piston diameter, 32 mm stroke, 955 lbf initial force, and 1776 lbf end force, delivering reliable performance across various temperatures and pressures.

제조업체
KALLER
SKU
1074381
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

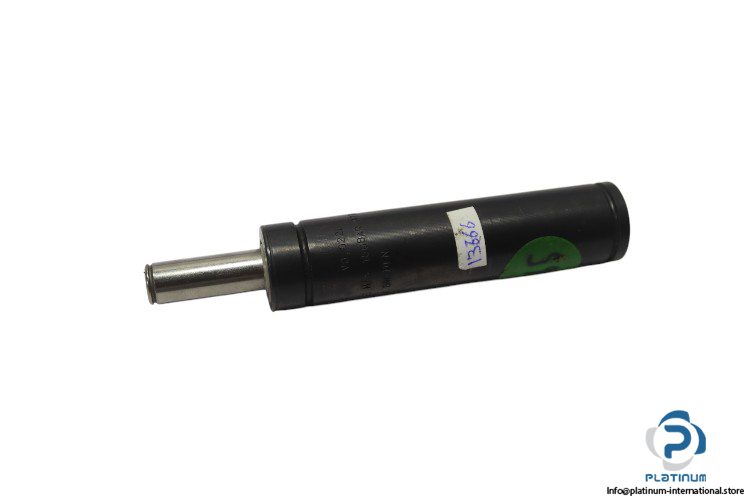

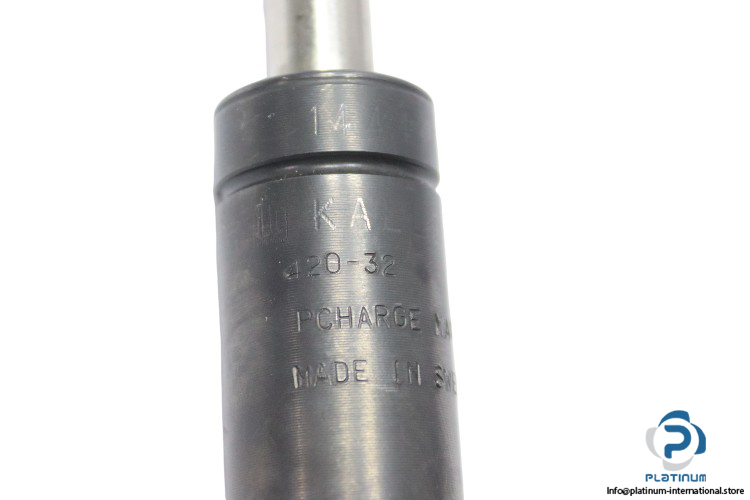

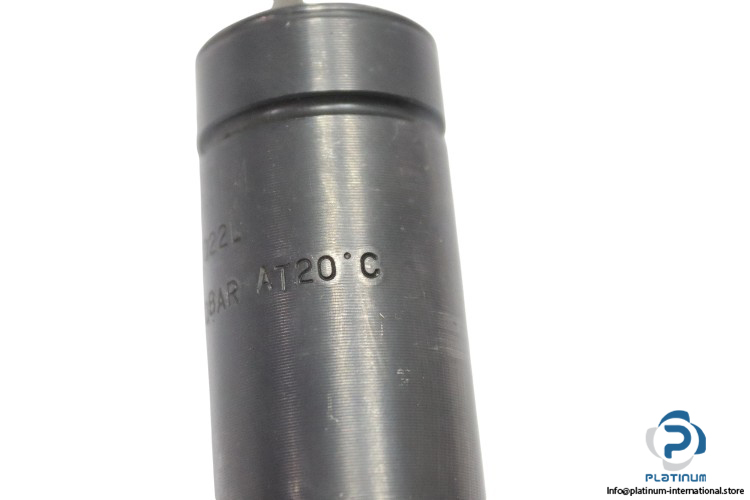

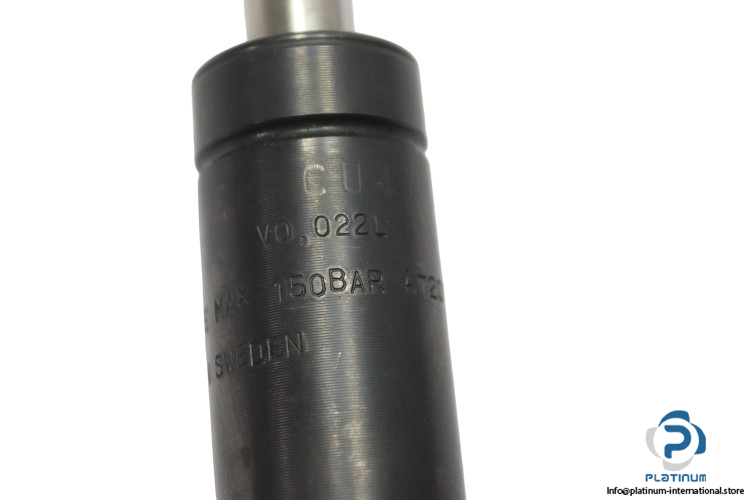

Kaller CU4 420-32 Gas Spring Actuator

The Kaller CU4 420-32 Gas Spring Actuator is designed for precise and reliable force delivery in a compact package. Offering a **25 mm piston diameter** and a **32 mm stroke**, this actuator is ideal for applications that require consistent force and performance across a wide range of temperatures and pressures.

Manufacturer: KALLER

Type: Gas Spring Actuator

Series: CU

Model: CU4 420-32

Technical Data:

  • Piston Diameter: 25 mm
  • Stroke: 32 mm
  • Total Length: 140.5 mm
  • Rod Diameter: 12 mm
  • Gas Volume: 0.022 L
  • Max. Charging Pressure: 150 bar at 20°C
  • Initial Force at Max. Pressure: 955 lbf
  • End Force at Full Stroke: 1776 lbf
  • Operating Temperature: 0 to 80 °C
