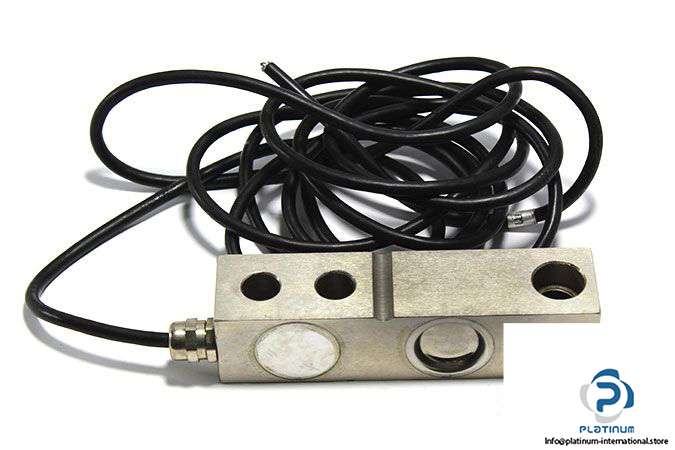

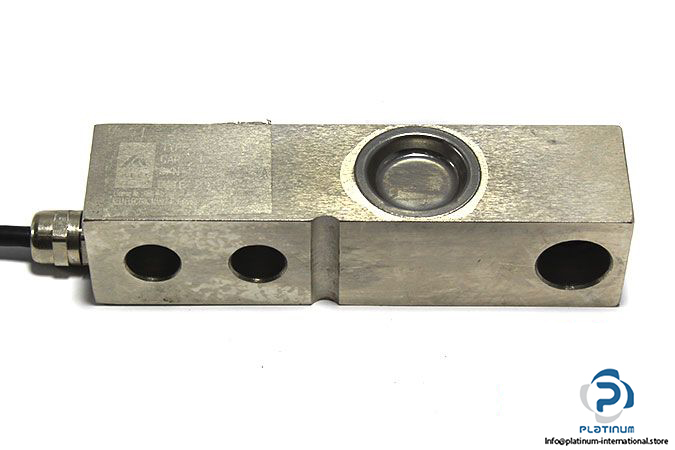

Keli SQB MAX 1000 KG Shear Beam Load Cell
Manufacturer: KELI
Type: Shear Beam Load Cell
Model: SQB
Features
- Capacity: 0.1t to 10t
- Threaded Load Hole Configuration
- Low Profile
- OIML C3 Approval
- Optional Material
- Stainless Steel
- Alloy Steel
Application
- Floor Scale
- Tank Weighing
Maximum weight limit (E max): 1000 kg
Rated Output: 2.0 ± 0.002 mV/V
Input Impedance: 400±20 Ω
Output Impedance: 352±3 Ω
Operating Temperature: -30…70 °C
Class: C
Weight: 0.875 kg
