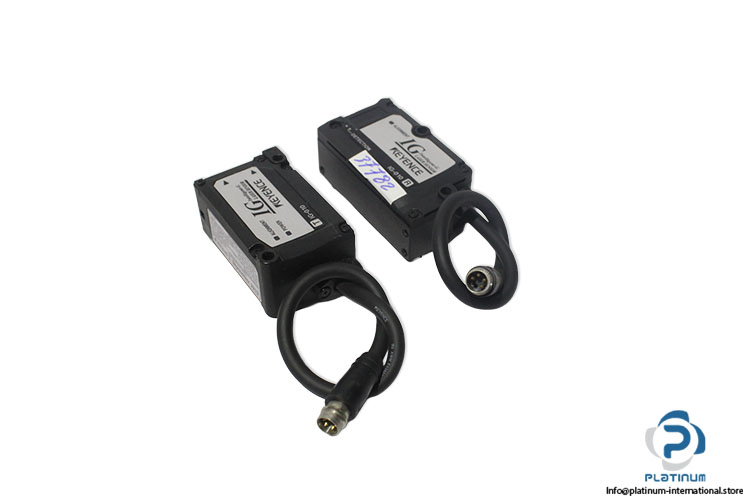

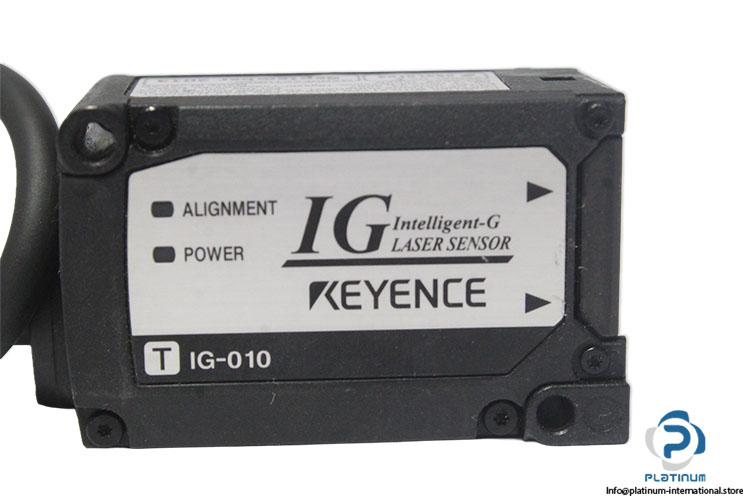

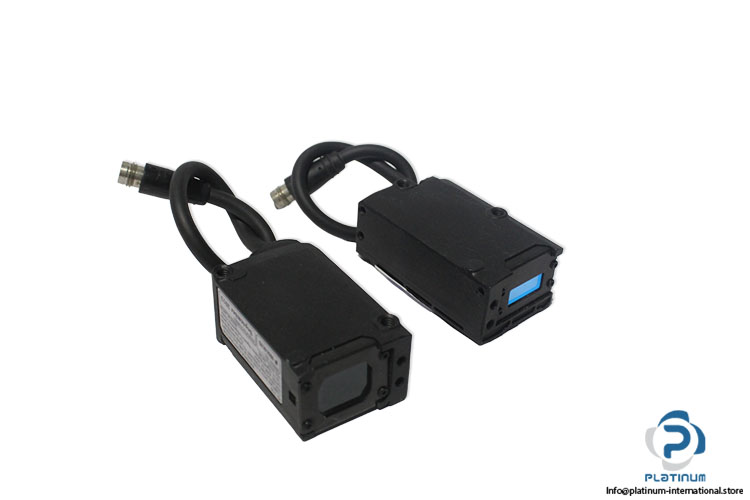

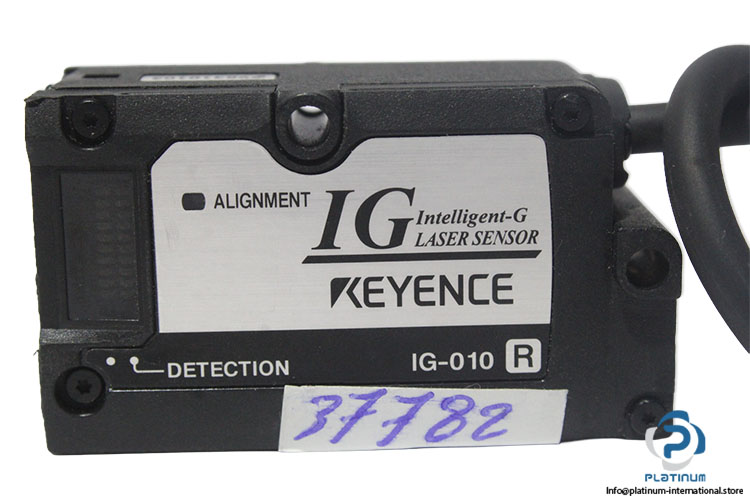

Keyence IG-010 Laser Sensor
신제품
재고 있음1 단위즉시 배송 가능
Laser Sensor The Keyence IG 010 Intelligent-G Laser Sensor utilizes advanced CCD technology and a 660 nm visible semiconductor laser to deliver precise, high-speed position measurement. Designed with IP67 protection, it is ideal for industrial automation, inspection, and precision sensing applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Serial No. | 98310103 |

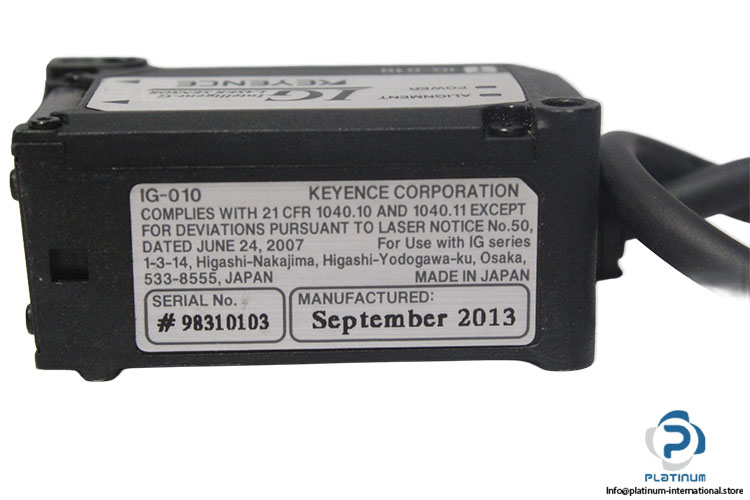

| Complies With | 21 CFR 1040.10 And 1040.11 Except For Deviations Pursuant To Laser (For Use with IG series) |
| Operation principle | CCD method |
| Light source Wavelength | 660 nm (Visible light semiconductor laser) |
| Mounting distance | 0 to 1000 mm |
| Measurement range | 10 mm |
| Sampling cycle | 980 µs |
| Operation indicator Transmitter | Optical axis alignment indicator: Green LED, Power indicator: Green LED |
| Operation indicator Receiver | Optical axis alignment indicator: Green LED, Position monitor: Dual bar LED (Red, Green) |
| Enclosure rating | IP67 |
| Ambient light | Incandescent lamp: 5,000 lux, Sunlight: 5,000 lux |
| Material | Case: Zinc die-cast (Lower case), PBT (Upper case), Polyacrylate (PAR) (Display part), SUS304 (Metallic part)-Lens cover: Glass-Cable: PVC |

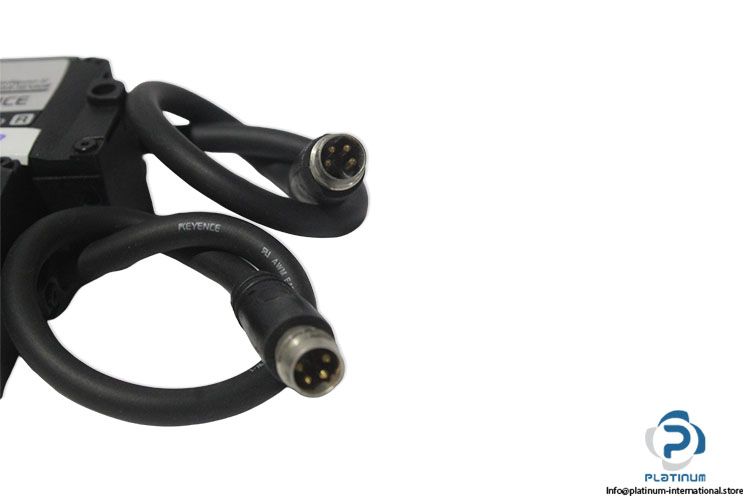

| Accessories | Transmitter × 1, Receiver × 1, Sensor head cables (2 m 6.56') × 2 |
| Ambient temperature | -10 to +45 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098154 |
| Weight | 0,21 |
