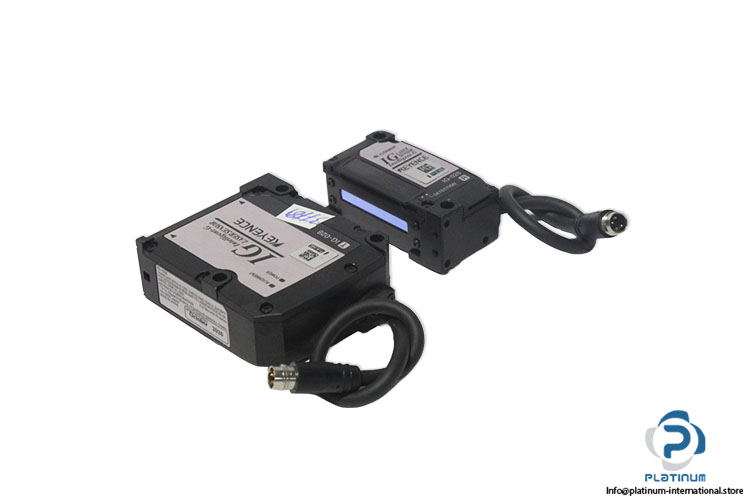

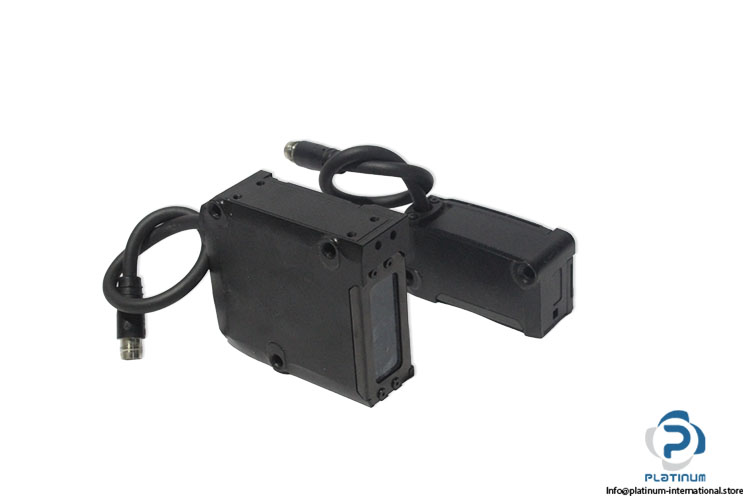

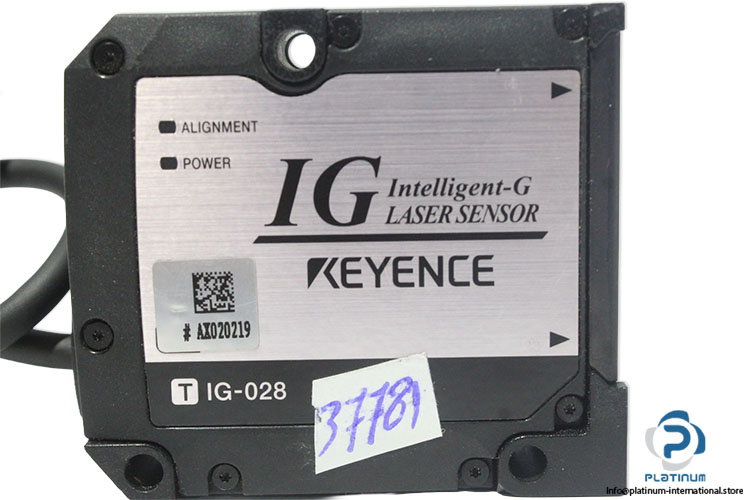

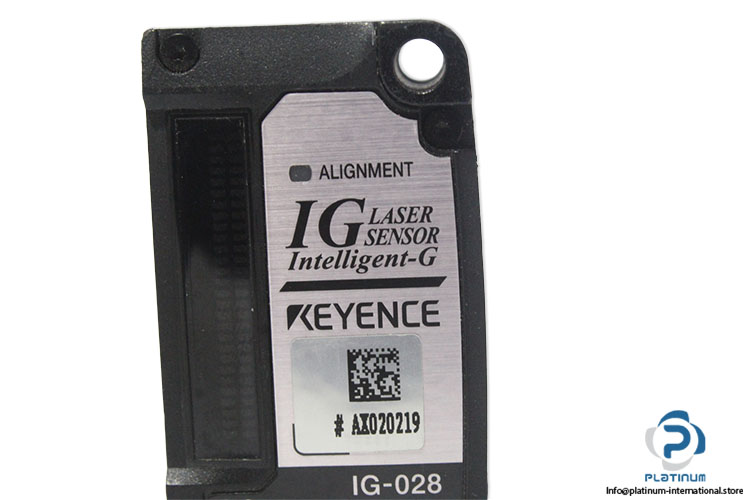

Keyence IG-028 Laser Sensor

재고 있음1 단위즉시 배송 가능

Laser Sensor The Keyence IG-028 Intelligent-G Laser Sensor utilizes CCD measurement technology and a visible 660 nm semiconductor laser to provide fast, accurate, and reliable non-contact positioning and distance measurement for industrial automation and inspection applications.

제조업체
KEYENCE
SKU
1098153
카테고리
Sensors
상태
신제품
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장
Part No.AX020219

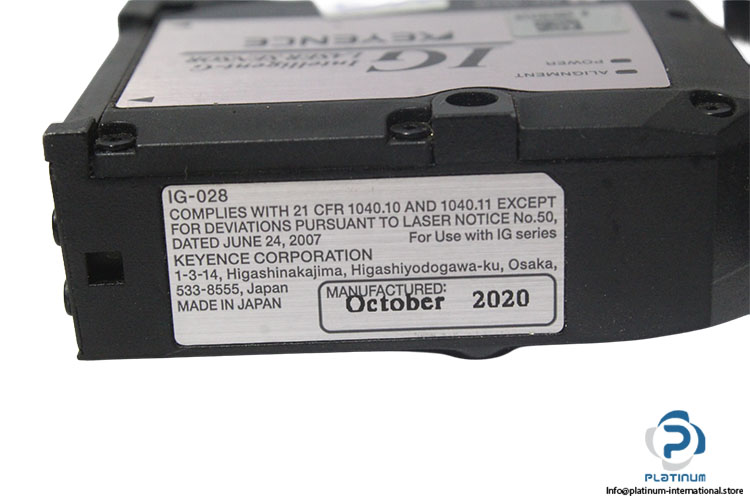

Complies With21 CFR 1040.10 And 1040.11 Except For Deviations Pursuant To Laser (For Use with IG series)
Operation principleCCD method
Light source Wavelength660 nm (Visible light semiconductor laser)
Mounting distance0 to 1500 mm
Measurement range28 mm
Sampling cycle980 µs
Operation indicator TransmitterOptical axis alignment indicator: Green LED, Power indicator Green LED
Operation indicator ReceiverOptical axis alignment indicator: Green LED, Position monitors Dual bar LED (Red, Green)
Enclosure ratingIP67
Ambient lightIncandescent lamp: 5,000 lux, Sunlight: 5,000 lux
MaterialCase: Zinc die-cast (Lower case), PBT (Upper case), Polyacrylate (PAR) (Display part), SUS304 (Metallic part)-Lens cover: Glass-Cable: PVC

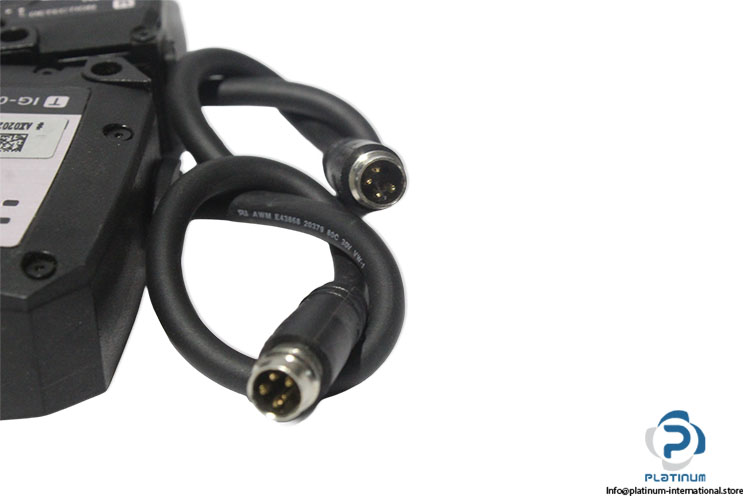

AccessoriesTransmitter × 1, Receiver × 1, Sensor head cables (2 m 6.56') × 2
Ambient temperature-10 to +45 °C
ConditionNew
Stock keyJO-004
SKU1098153
Weight0,33
