Keyence IL-030 Laser Displacement Sensor
신제품
재고 있음1 단위즉시 배송 가능
Laser Displacement Sensor The Keyence IL-030 is a compact intelligent laser displacement sensor featuring a 20 to 45 mm measurement range, 30 mm reference distance, visible red laser, IP67 protection, and high-speed sampling for precise industrial distance measurement and automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

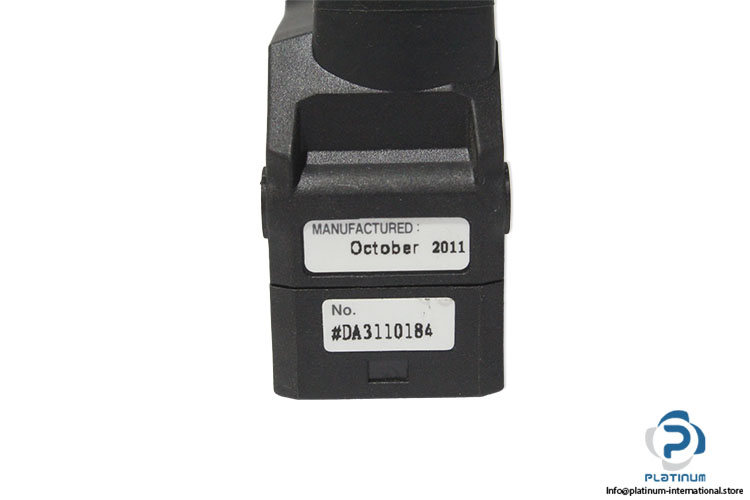

| Serial No. | DA3110184 |
| Series | IL (Intelligent-Laser Sensor) |

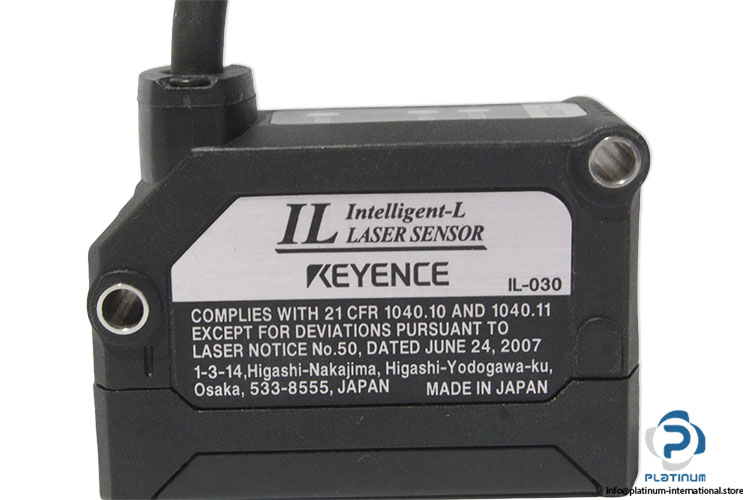

| Compiles with | Complies With 21 CFR 1040.10 And 1040.11 Except For Deviations Pursuant to Laser |
| Reference distance | 30 mm |
| Measurement range | 20 to 45 mm |
| Light source Type | Red semiconductor laser |
| Wavelength | 655 nm (visible light) |
| Spot diameter | Approx. 200 × 750 microm |
| Sampling rate | 0.33/1/2/5 ms (4 levels available) |

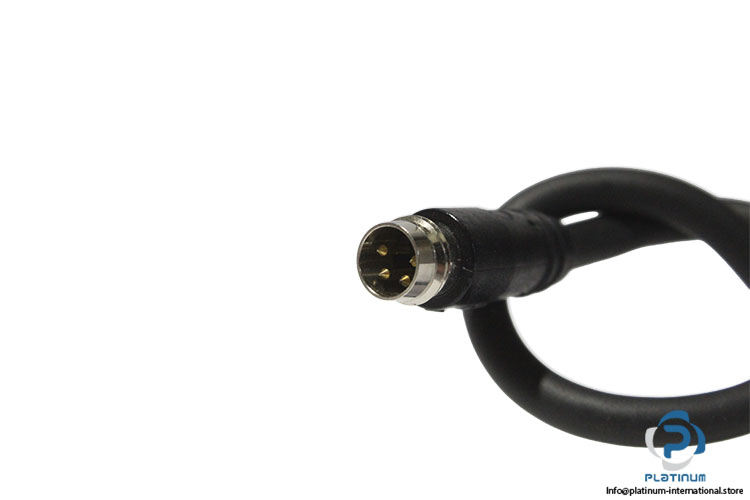

| Connection type | cable with end connector (4-pins) |

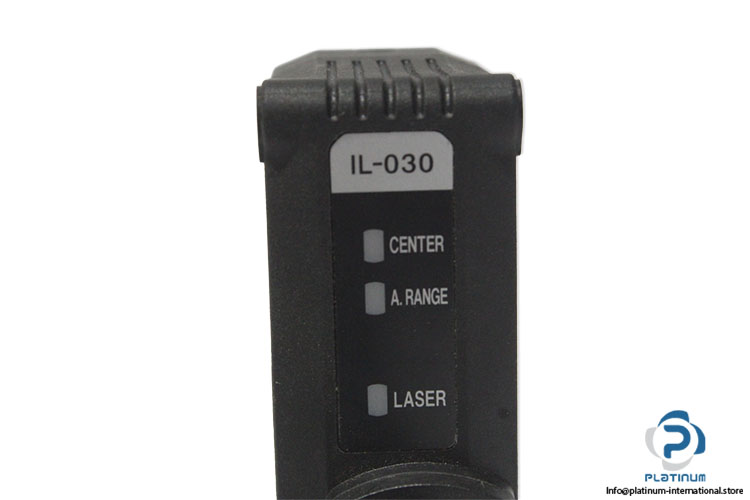

| Operation status indicators | Laser emission warning indicator: Green LED, Analog range indicator: Orange LED, Reference distance indicator: Red/Green LED |
| Enclosure rating | IP67 |
| Pollution degree | 3 |
| Ambient temperature | -10 to +50 °C |
| Material | Housing material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098155 |
| Weight | 0,06 |
