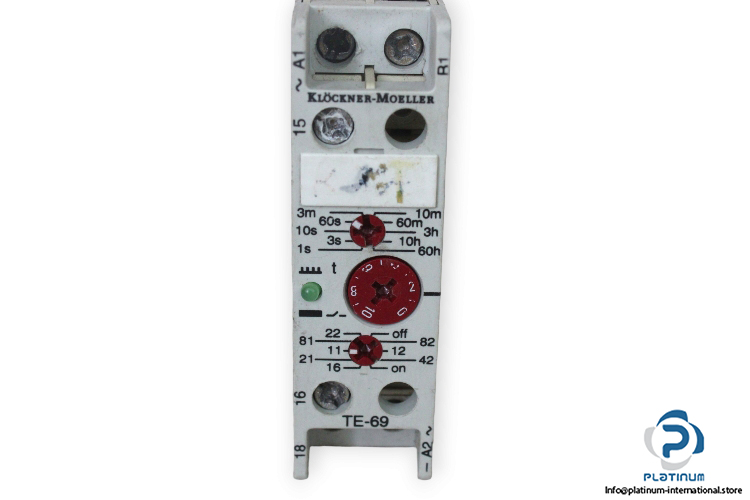

Klockner Moeller TE-69 Time Delay Relay
Manufacture: Klockner Moeller
Type: Time Delay Relay
Model: TE-69
Supply Voltage: 24 … 240 V AC/DC
Frequency: 50/60 Hz
Operating Temperature: -20 … 60°C
Contacts Voltage: 220 … 240 V AC, 380 … 440 VAC
Contact Current: 3 A
Thermal current Ith: 6 A
Impulse with sand voltage Uimp: 6000 V
Contact: 1 change over contact
Termination: Screw
Time Range: 0.05 s … 60 hrs
Dimensions: 22.5 X 100.9 X 76.5 mm
