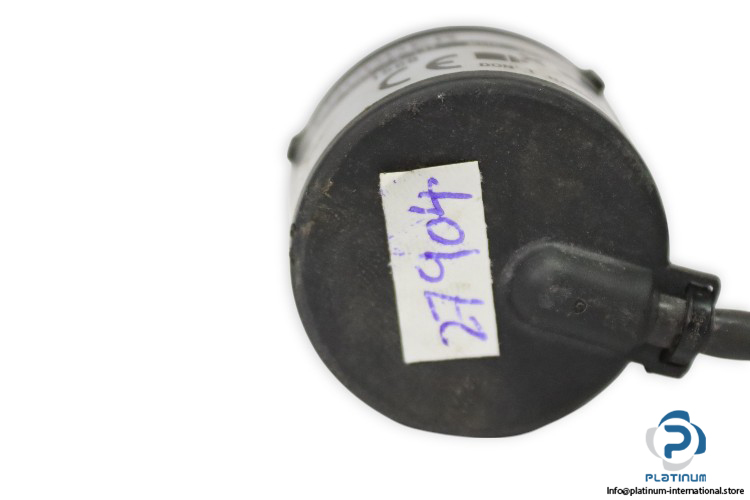

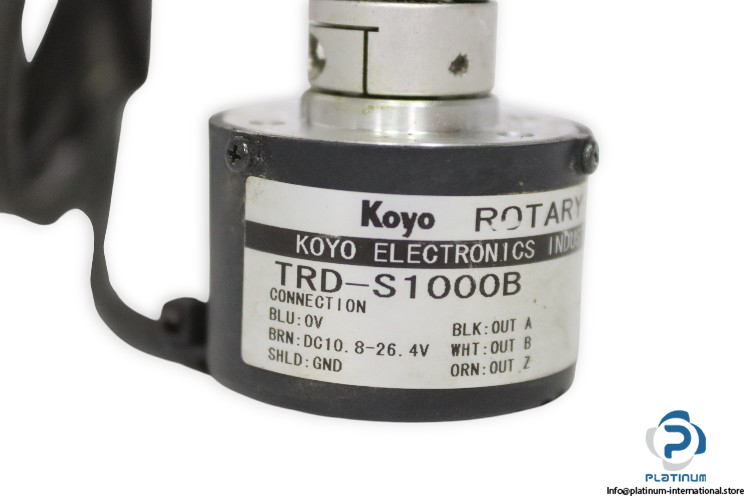

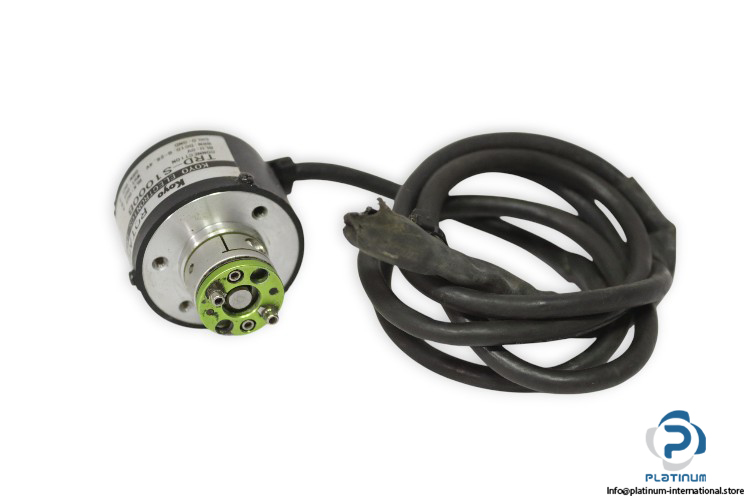

Koyo TRD-S1000B Rotary Encoder

Manufacturer: KOYO

Type: Rotary Encoder

Model: TRD-S1000B

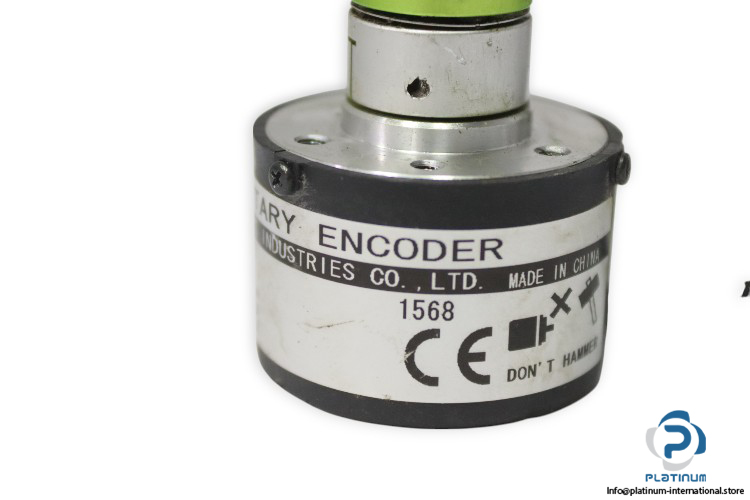

MNR: 1568

Shaft Diameter: 6 mm

Shaft Allowable Load (Radial): 20 N

Shaft Allowable Load (Thrust): 10 N

Maximum Allowable Number of Revolutions: 6,000 rpm

Ambient Temperature: -10 to +70°C

Insulation Resistance: 50 MΩ

Protective Structure: IP40

The KOYO TRD-S1000B rotary encoder delivers accurate position sensing and high-speed rotation feedback in compact industrial applications. Built with a durable housing and rated IP40 for moderate protection, this encoder is ideal for environments requiring dependable performance under continuous operation. Its robust shaft design supports up to 20 N radial and 10 N thrust loads, ensuring mechanical reliability. Designed for high precision, it is widely used in servo systems, robotics, textile machinery, and automated control processes.
