Krohne Optitemp TCA-F 23 Temperature Transmitter
신제품
재고 있음4 단위즉시 배송 가능
Temperature Transmitter
KROHNE INOR OPTITEMP TCA-F23 with TT51C transmitter, 10“36 VDC input, 0 / 120 °C range, 4“20 mA output, welded multipart thermowell, and Type J thermocouple for liquid, gas, and solid measurements.connectionFlangeIndustrialInorJKrohneMeasurementOptitempProcessRTDSensorTCA-F23TemperatureThermocoupleThermowellTransmitterTT51CType
방대한 재고
글로벌 배송
전문 지원
품질 보장

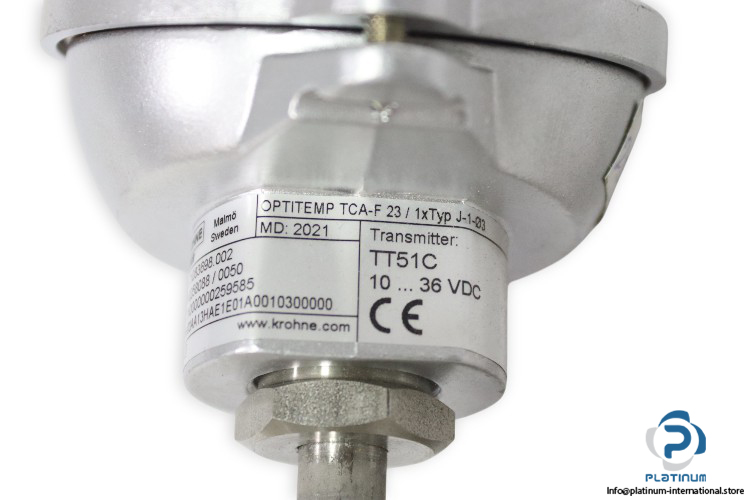

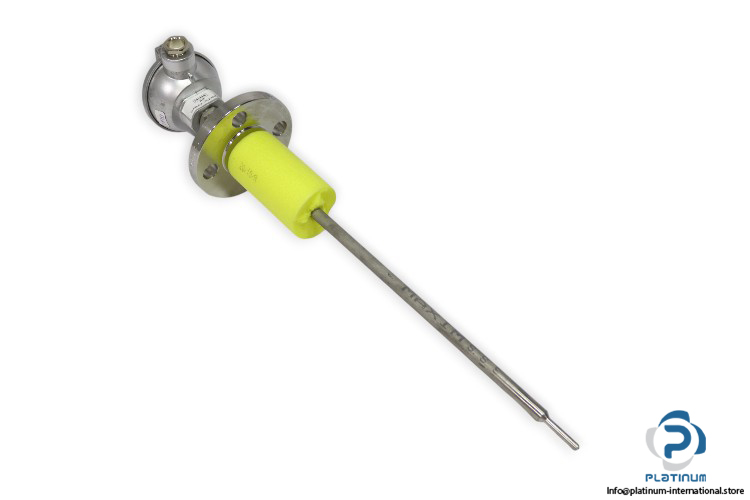

KROHNE INOR OPTITEMP TCA-F23 Temperature Transmitter
The KROHNE INOR OPTITEMP TCA-F23 is a high-quality RTD and thermocouple-based temperature transmitter designed with a DIN-style assembly and durable welded multipart thermowell. It ensures precise measurement of liquids, gases, and solids in industrial environments, offering dependable performance and fast response time.

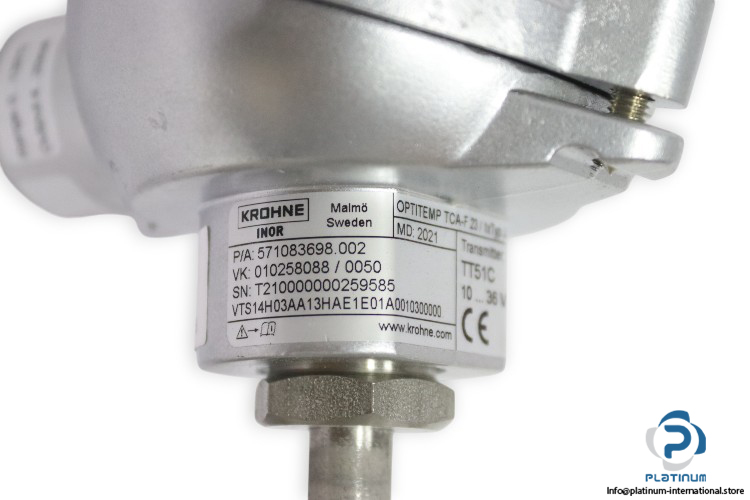

Manufacturer: KROHNE INOR
Type: Temperature Transmitter (RTD with Transmitter Head) / Thermocouple
Model: OPTITEMP TCA-F23
Part No.: 571083698.002
Ref No.: 010258088 / 0050
Serial No.: T210000000259585

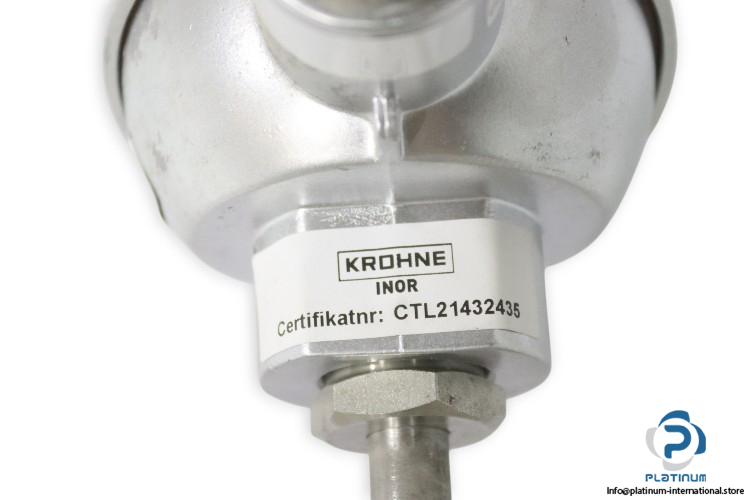

Cert. No.: CTL21432435
Transmitter Model: TT51C
Code No.: VTS14H03AA13HAE1E01A0010300000
| Input Power | 10“36 VDC |
| Family | OPTITEMP |
| Flange Connection | DIN-style based on form 2F |
| Thermowell Type | Welded multipart with reduced tip |
| Measured Media | Liquids, Gases, Solids |
| Temperature Assembly Design | DIN-style |

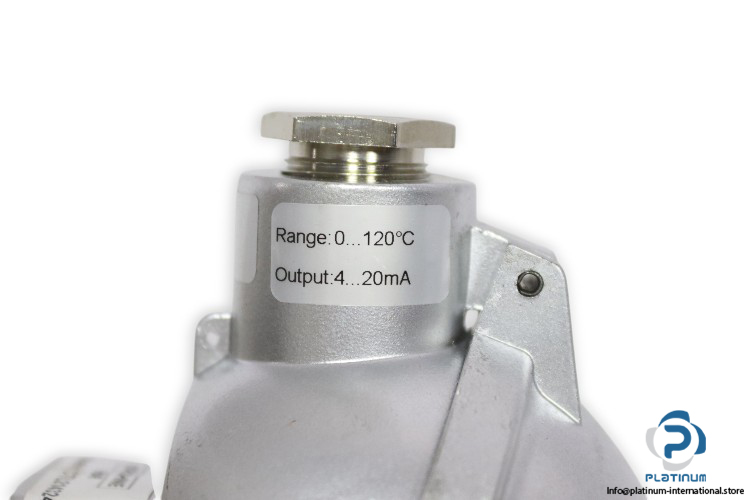

| Measurement Range | 0 / 120 °C |
| Output Signal | 4 / 20 mA |
| Response Time | 8 s “ 21 s |
| Thermocouple (TC) Configuration | 1 x Type J |
| Thermowell Diameter | 11 mm |
| Thermowell Tip Design | Reduced |
| Mounting Point | Pipe, Tank |
| Measuring Point | Pipe, Tank |
