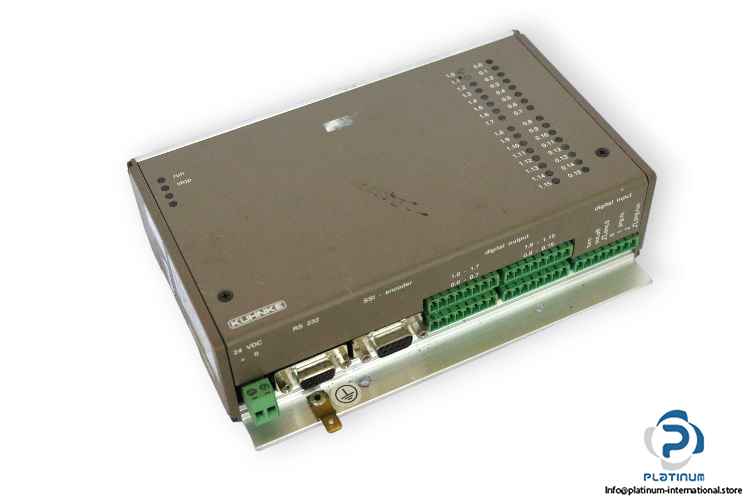

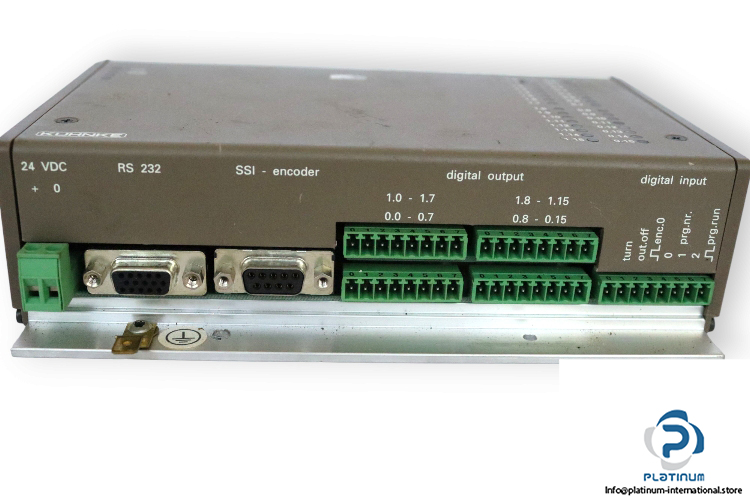

Kuhnke Kuax 674 Control Unit

Manufacture: Kuhnke
Type: Control Unit
Model: KUAX674
Order No.: 674.010.32

Power Supply voltage: primary (external): 24 V DC, secondary (internal) 5 V DC
Connection: screw-type locking connector
Program Memory: RAM, buffered with accumulator (option: Flash-EPROM)
No. of programs: max. 8 programs (0…7)
No. of cams: max. 128000, apportion at random
Interfaces: RS 232
Resolution: 1000 steps / 360°
No. of digital input (DI): 7
No. of digital output (DO): 32
Degree of protection: IP 20
Operating temperature: 0 … 55 °C
Dimensions: 132 x 182 x 52 mm
