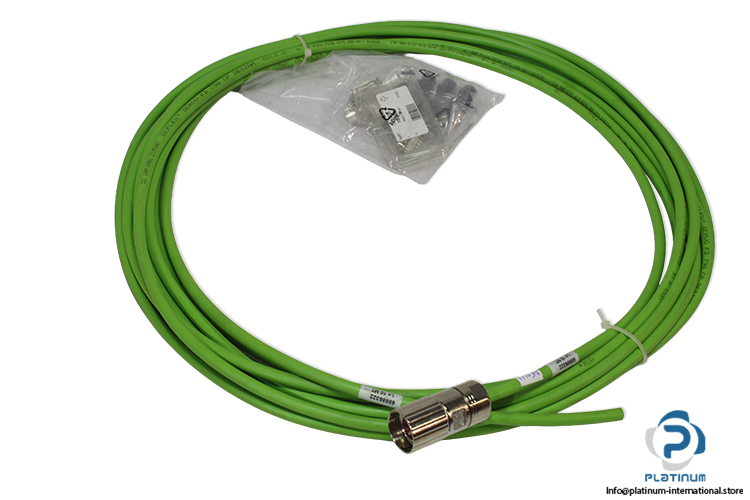

Lapp 0036921 /10 M Multi-Conductor Cable

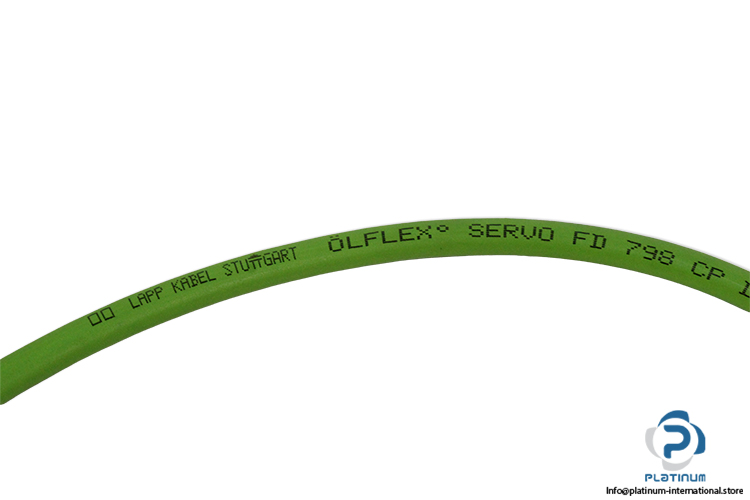

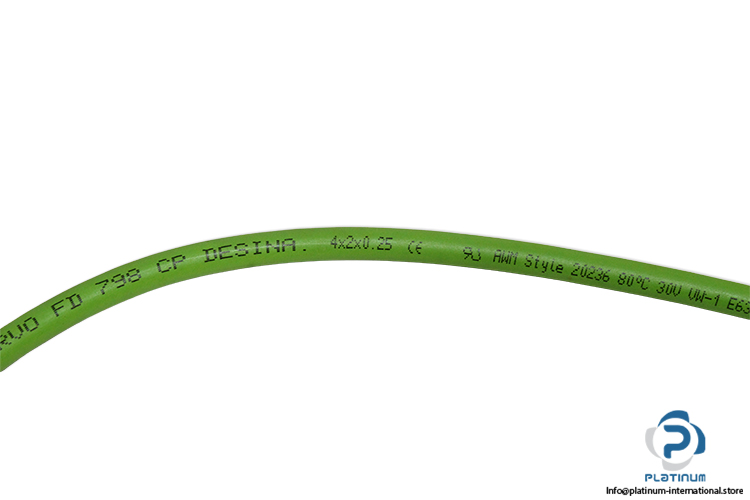

LAPP OLFLEX SERVO FD 798 CP Multi-Conductor Cable
The LAPP OLFLEX SERVO FD 798 CP is a high-quality, pre-assembled SSI encoder cable designed for reliable signal transmission in dynamic industrial environments. This cable features robust shielding, flexible PUR jacket material, and precision connectors to ensure stable performance and long service life.
Manufacturer: LAPP
Type: Multi-Conductor Cable
Compatible with: OLFLEX SERVO FD 798 CP
Article No.: 0036921
Schneider Part Number: VW3M5102R100

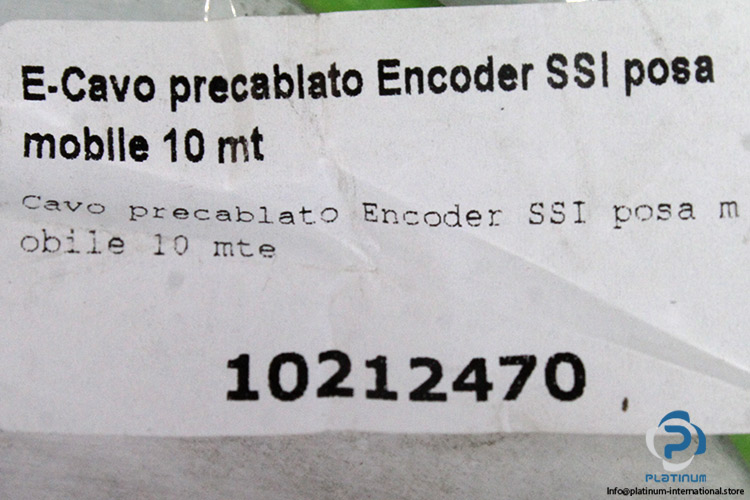

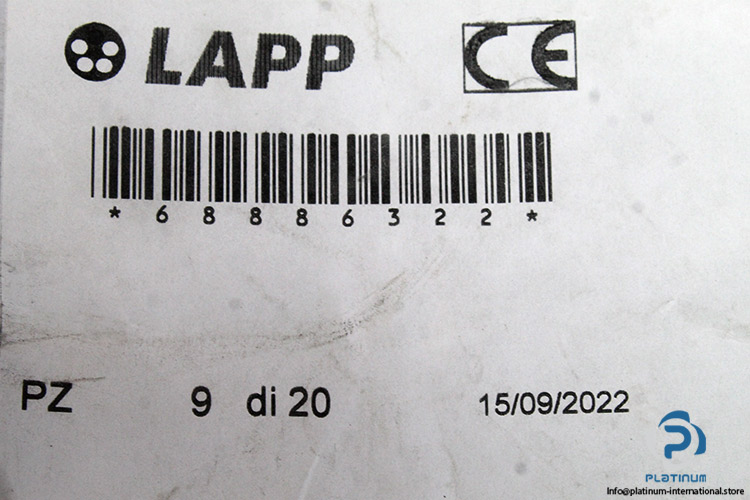

Code: 68886322 / 10212470 / 0162503006010 / 14333500

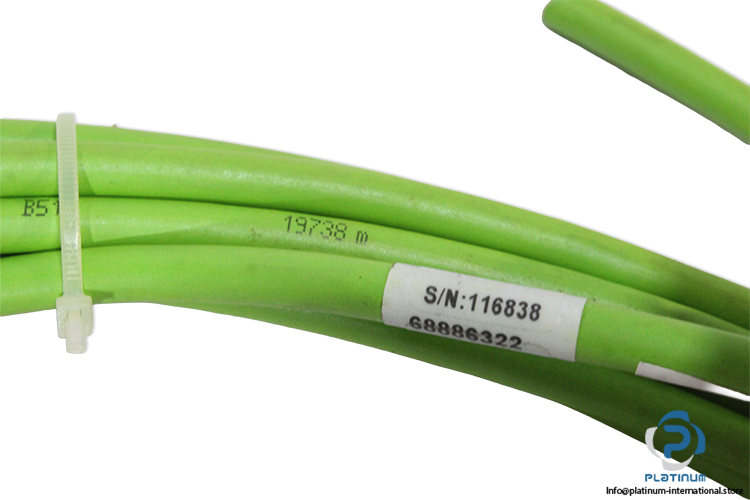

Serial No.: 116838
Temperature Range:
-40 °F to +176 °F
-40 °C to +80 °C
| Product Type | Pre-assembled SSI Encoder Cable |

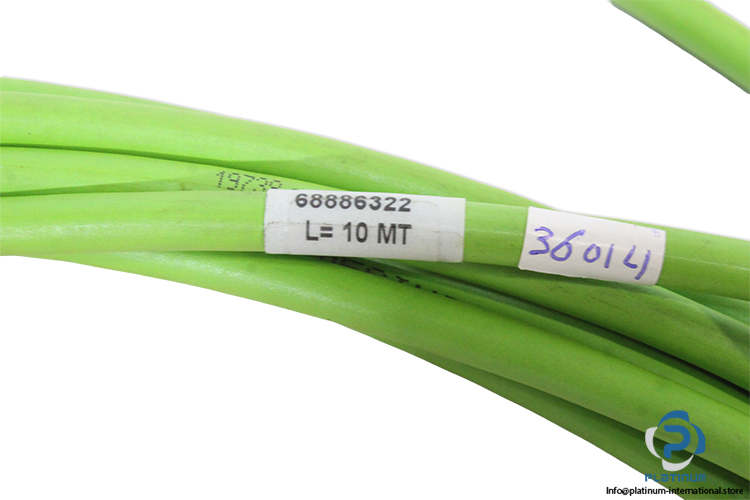

| Cable Length | 10 m |

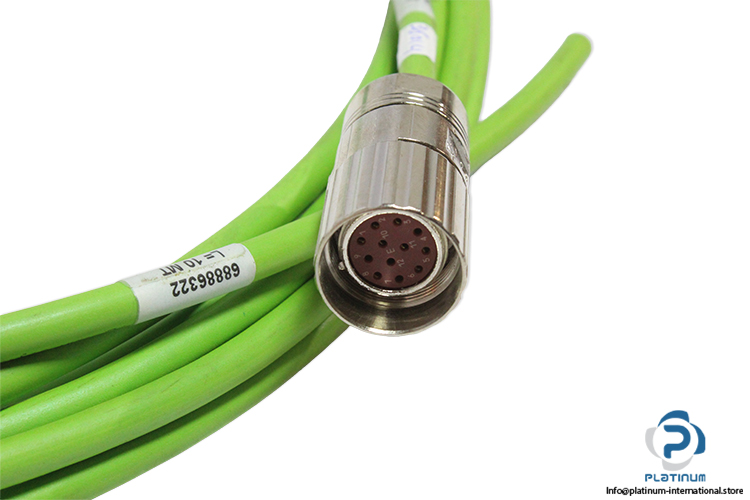

| Connector 1 | 10-Pins Female |
| Connector 2 | 15-Pins Male |

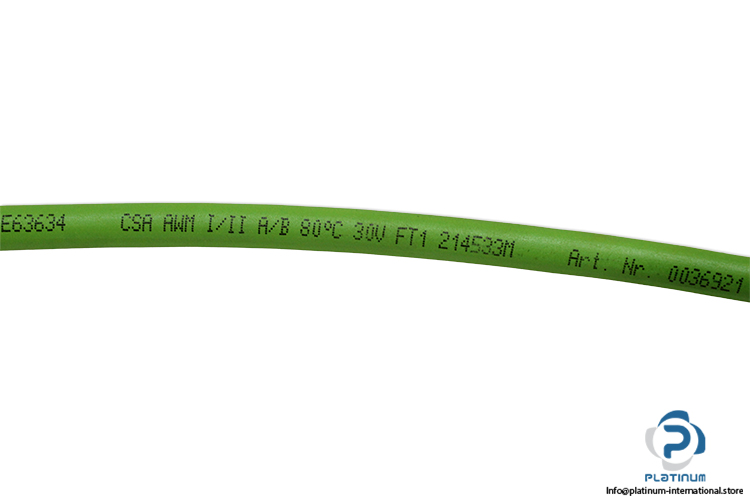

| Cable Information | AWM STYLE 20236, 30 V, 80 °C |
| AWG / Gauge | 24 |
| Number of Conductors | 8 |
| Conductor Material | Tinned Copper |
| Conductor Stranding | Stranded |
| Shielding | Braid |
| Jacket Color | Green |
| Jacket Material | Polyurethane (PUR) |
| Nominal OD | 0.299 in / 7.6 mm |
| Voltage | 30 V |
| Attributes | Multi-Conductor |
| Standards / Approvals | UL Approved, CE Approved |
