Lenze MDFKARS080-22 AC Servo Motor
중고
재고 있음1 단위즉시 배송 가능
“ 3.9 kW, 390V, 3455 rpm, 13.5 Nm stall torque, IP54 protection, and insulation class F for high-efficiency industrial applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

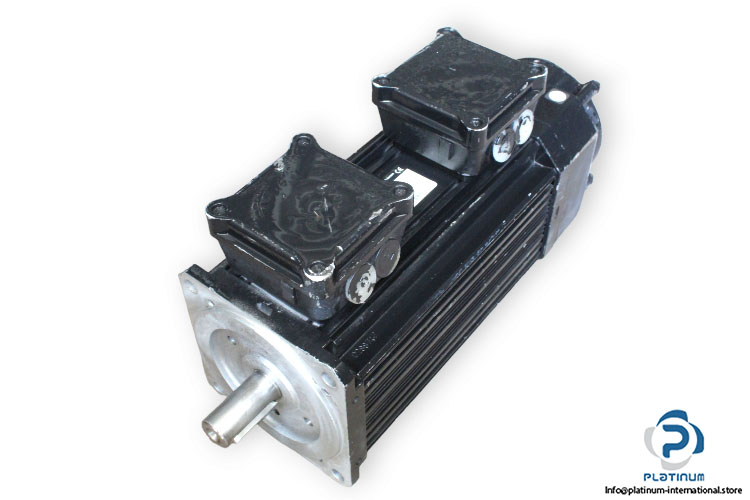

Lenze MDFKARS080-22 AC Servo Motor
The Lenze MDFKARS080-22 AC Servo Motor is a high-performance motor designed for precision motion control in industrial automation applications. With a rated power of 3.9 kW and a stall torque of 13.5 Nm, it ensures efficient and reliable operation in demanding environments.

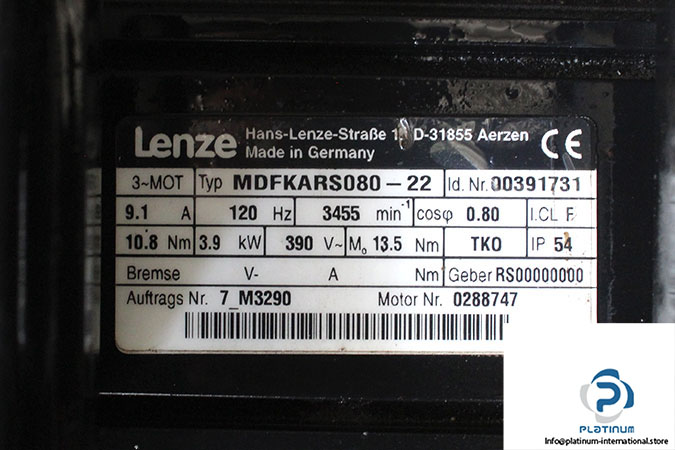

Technical Specifications:
- Manufacturer: Lenze
- Type: AC Servo Motor
- Model: MDFKARS080-22
- ID No.: 00391731
- Rated Power: 3.9 kW
- Rated Voltage: 390 V
- Rated Speed: 3455 rpm
- Rated Current: 9.1 A
- Stall Torque: 13.5 Nm
- Rated Torque: 10.8 Nm
- Frequency: 120 Hz
- Power Factor: 0.8
- Insulation Class: F
- Protection Class: IP54
- Weight: 16.92 kg
The Lenze MDFKARS080-22 is built for precision and durability, making it ideal for various industrial applications requiring high-efficiency motor control.
