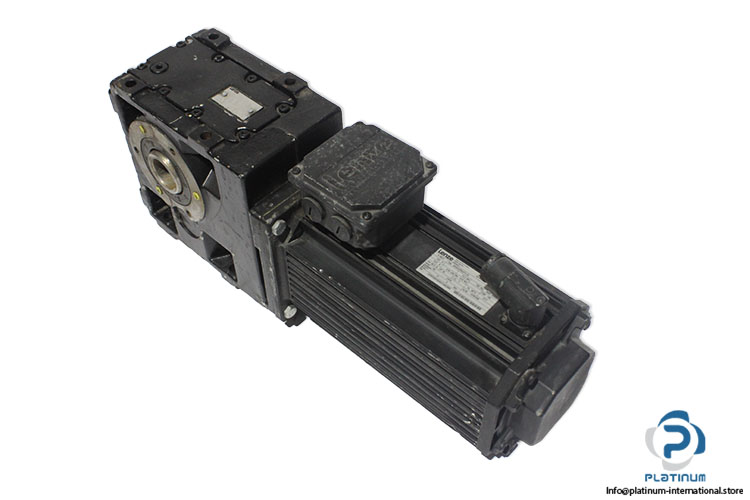

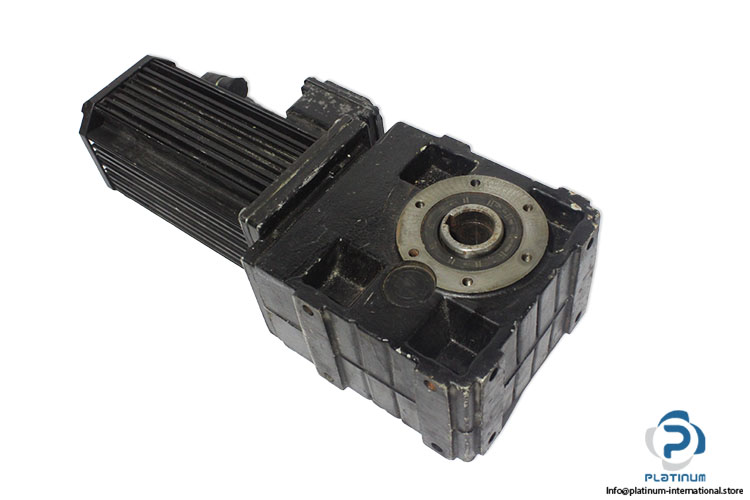

Lenze MDSKSRS071-33 Servomotor With Gear
중고
재고 있음2 단위즉시 배송 가능
Servomotor with Gear The Lenze MDSKSRS071-33 is a 4.6 kW servomotor with a helical-bevel gearbox, designed for precise motion control and reliable power transmission in industrial automation applications
방대한 재고
글로벌 배송
전문 지원
품질 보장

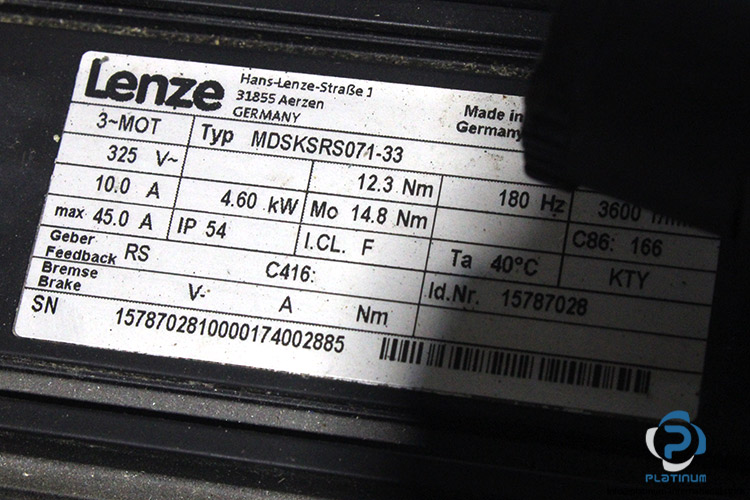

| ID. | 15787028 |
| SN | 1578702810000174002885 |
| Rated Torque [Nm] | 12.3 |
| Stall Torque [Nm] | 14.8 |
| Rated Current [A] | 10 |
| Max. Current [A] | 45.0 |
| Rated Power [kW] | 4.6 |
| Supply Voltage [V] | 325 |
| Frequency [Hz] | 180 |
| Nominal Speed [rpm] | 3600 |
| Ambient Temperature [°C] | 40 |
| Insulation Class | F |
| Protection Class [IP] | 54 |

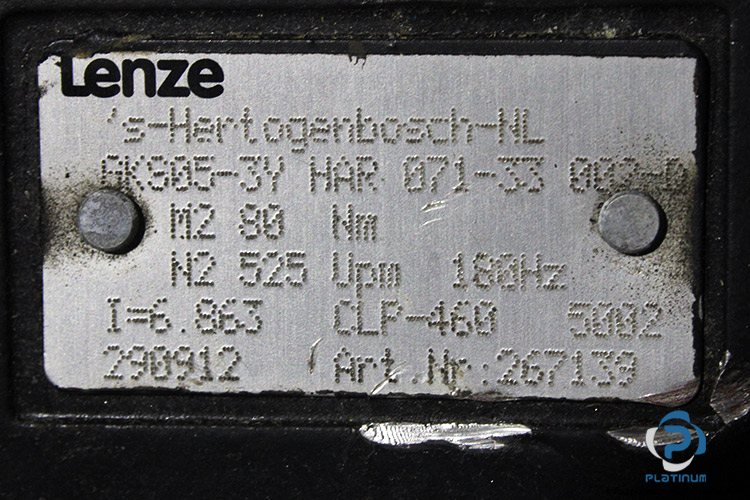

| Attached with | Lenze GKS05-3Y HAR 071-33 Helical-Bevel Gearbox |
| Size | 05 |
| Number of Stage | 3 |
| Art.Nr | 267139 |
| Ratio | 6,863 |
| Motor Speed | 525 r/min |
| Rated Frequency | 180 Hz |
| Rated Torque | 80 Nm |
| Lubrication | CLP -460 5002 |
| Connection | Terminal box |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100841 |
| Weight | 31,42 |
