Lovato KB A1 S11 Limit Switch
중고
재고 있음2 단위즉시 배송 가능
Limit Switch
The Lovato KBA1S11 limit switch provides reliable position sensing with 690 V insulation voltage, 10 A thermal current, and IP65 protection for industrial control applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

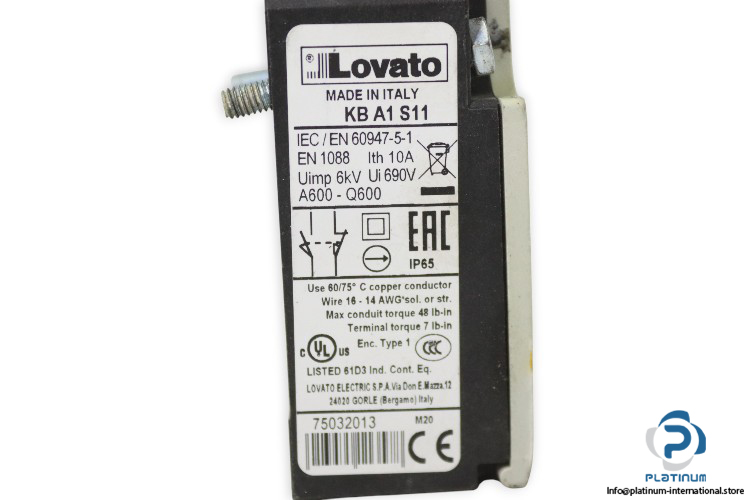

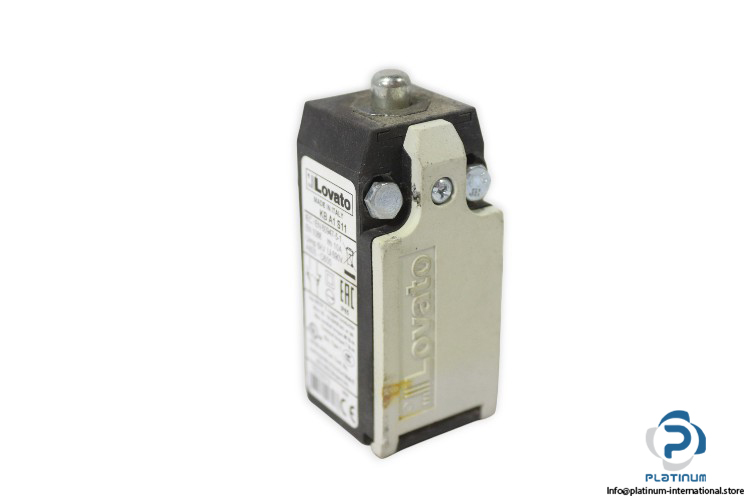

Lovato KB A1 S11 Limit Switch
The Lovato KBA1S11 Limit Switch is a compact and durable mechanical switch designed for precise detection and control in automation systems. Built with a robust polymer thermoplastic housing and metal plunger head, it ensures reliable operation in industrial environments requiring accurate position sensing.
Manufacturer: Lovato
Type: Limit Switch
Model: KBA1S11
Designation: KBA
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Thermal Current | 10 A |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Contact | Action 2-Pole, 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Head Type | Top Push Rod Metal Plunger |
| Operating Head Fixing | Locking Bayonet Insert |
| Material | Polymer Thermoplastic |
| Protection Class | IP20 / IP65 |
| Ambient Temperature | -25 / 70 °C |
| Dimensions | 54.5 x 30 x 30 mm |
