MAC 130B-611JM Pneumatic Valve With 700017 Base
신제품
재고 있음10 단위즉시 배송 가능
Pneumatic Valve
The MAC 130B-611 JM Pneumatic Valve is an electrically actuated solenoid poppet valve offering a Cv 0.14 flow with a pressure range from vacuum to 150 psi. It features 24Vdc control voltage and a durable DIN 43650 connector for efficient pneumatic control.
방대한 재고
글로벌 배송
전문 지원
품질 보장

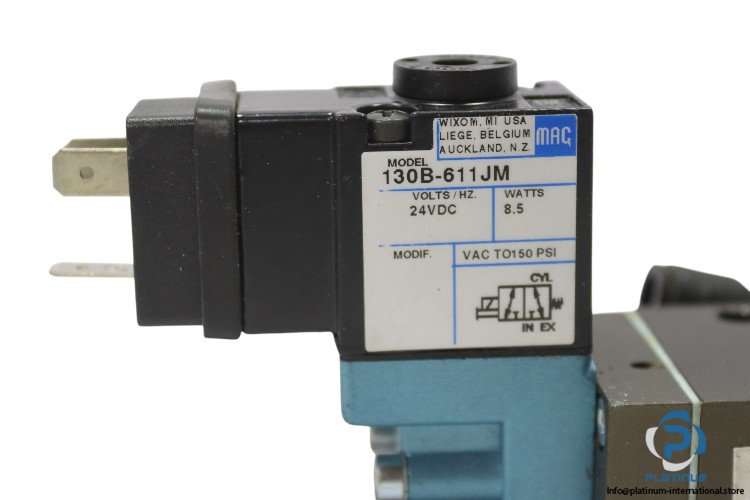

MAC 130B-611 JM Pneumatic Valve
The MAC 130B-611 JM Pneumatic Valve from the 100 series is designed for efficient control in pneumatic systems. It features a single direct solenoid poppet valve with a Cv rating of 0.14 and is available as either Normally Open (NO) or Normally Closed (NC). This valve operates within a pressure range from vacuum up to 150 psi and can be easily connected using a rectangular male plug-in DIN 43650 connector.
Manufacturer: MAC
Type: Pneumatic Valve
Series: 100
Model: 130B-611 JM
Technical Data:
- Main Function: Valve (Electrically actuated)
- Functions: Single direct solenoid poppet valve (Cv 0.14)
- Valve Function: 3/2-way Normally Open (NO) or Normally Closed (NC)
- Flow: Cv 0.14
- Pressure: Vacuum +150 psi pressure range
- Connection Type: Rectangular male plug-in DIN 43650 connector
- Control Voltage (DC): 24Vdc
- Mounting Mode: Valve less base
- Ambient Air Temperature for Operation: -18…+60 °C
- Power Consumption: 8.5 W
- Connection: 8 mm
Attached with:

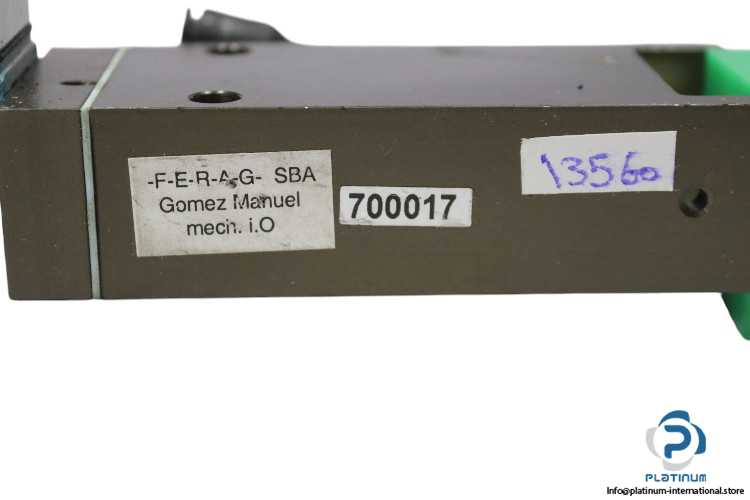

- Model: 700017
- Type: BASE
- Ref No: F-E-R-A-G- SBA
