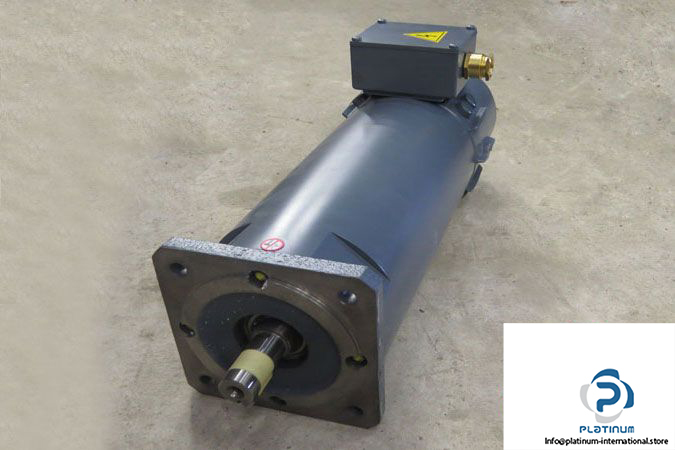

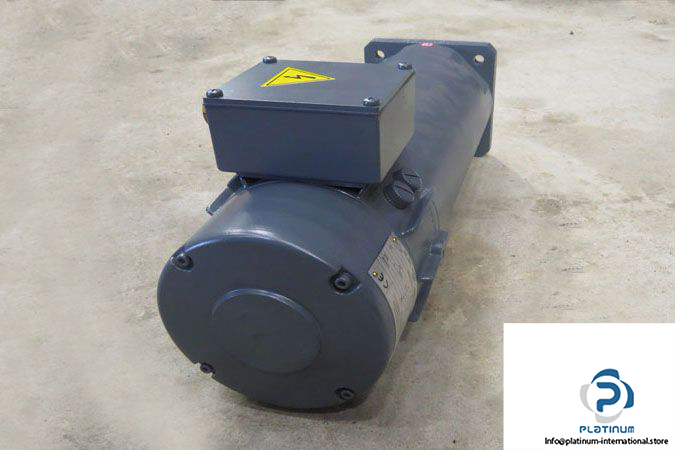

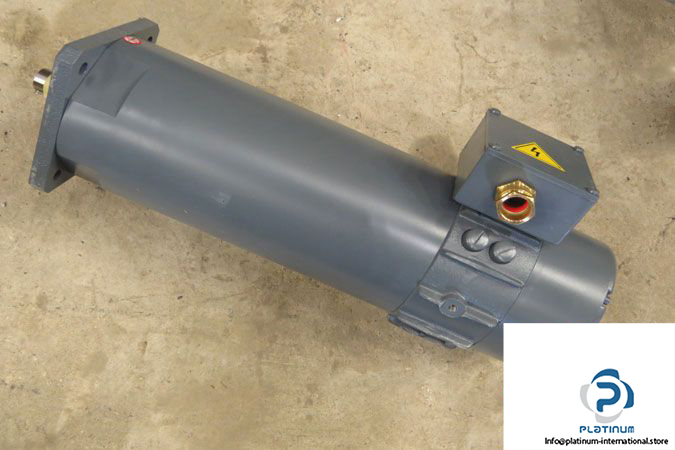

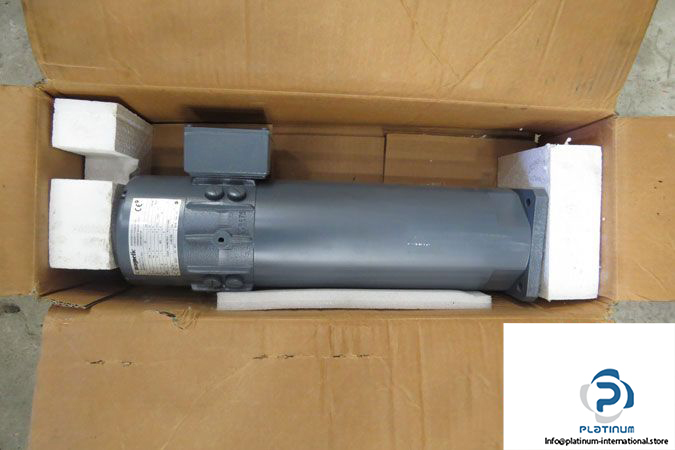

Magnetic BR 80 P 22/17 DC Servo Motor

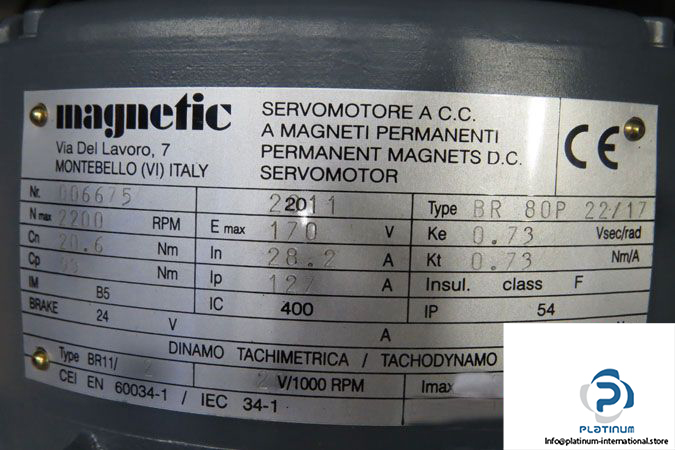

Manufacturer: MEGNATIC

Type: Permanent Magnets DC Servo Motor

Model: BR 80P 22/17

MRN: 006675

C.E.M.F : 170 V at 2200 rpm

Nominal speed: 2200 rpm

Continuous stall torque totally enclosed: 20.6 Nm

Nominal current: 28.2 A

Peak stall torque: 93 Nm

Voltage constant: 0.73 Vsec/rad

Insulation class: F

Protection: IP54

Weight: 46 Kg

*Supplied with a tachogeneratorin for protection against accidental shocks

*Supplied with Stopping or emergency brake (24Vdc,20Nm,.89A)
