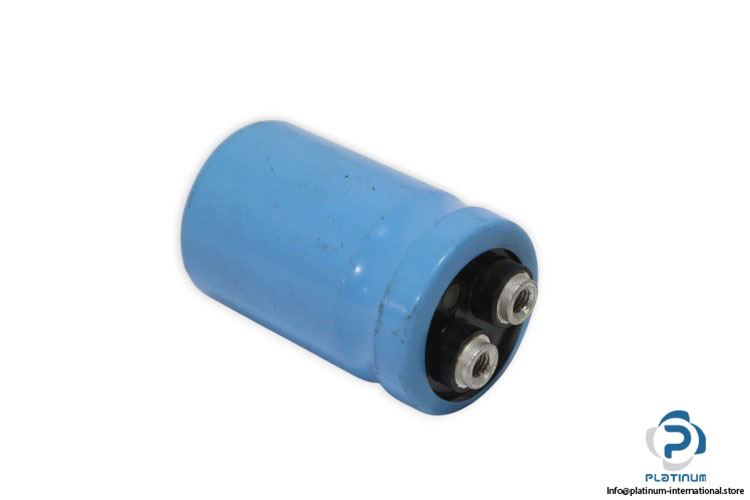

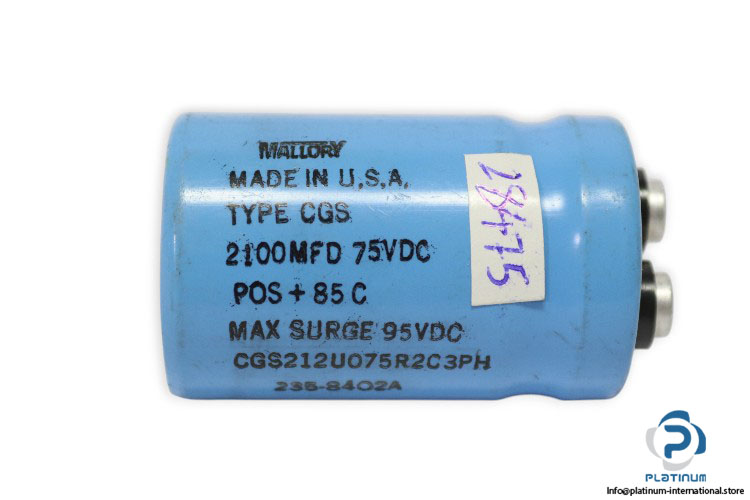

Mallory CGS212U075R2C3PH Computer-Grade Capacitor
신제품
재고 있음1 단위즉시 배송 가능
COMPUTER-GRADE CAPACITOR
The Mallory CGS212U075R2C3PH from the CGS series is a 2,100 µF, 75 V computer-grade capacitor with screw terminals, red PVC insulating sleeve, and tolerance of -10% / +75%. Built for reliable performance up to +85 °C.2100uF235-8402A75VCapacitorCGSCGS212U075R2C3PHComputergradeHighMalloryPVCRedscrewSeriessleeveSurgeterminalvoltage
방대한 재고
글로벌 배송
전문 지원
품질 보장
MALLORY CGS212U075R2C3PH COMPUTER-GRADE CAPACITOR
The Mallory CGS212U075R2C3PH is a reliable computer-grade capacitor from the CGS series, designed for demanding power supply and filtering applications. With robust screw terminal connections and durable construction, it ensures consistent performance under high load conditions.
Manufacturer: Mallory
Type: Computer-grade Capacitor
Series: CGS
MRN: CGS212U075R2C3PH
Part No.: 235-8402A
| Capacitance | 2,100 µF |
| Capacitance Tolerance | -10% / +75% |
| DC Voltage Rating | 75 V |
| Insulating Sleeve | Red PVC, 0.008" thickness (Standard) |
| Max Surge Voltage | 95 VDC |
| Terminal Style | Screw terminals (high-post or low-post) |
| Max Temperature | +85 °C |
