Matsushita EP-FL2 Permanent-Split Capacitor Motor
중고
재고 있음1 단위즉시 배송 가능
영구 분할 커패시터 모터 Matsushita EPFL2 4극 모터로 정격 전력 20W, 연속 운전 등급, 100V 작동, 50/60Hz에서 안정적인 속도 성능을 제공합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

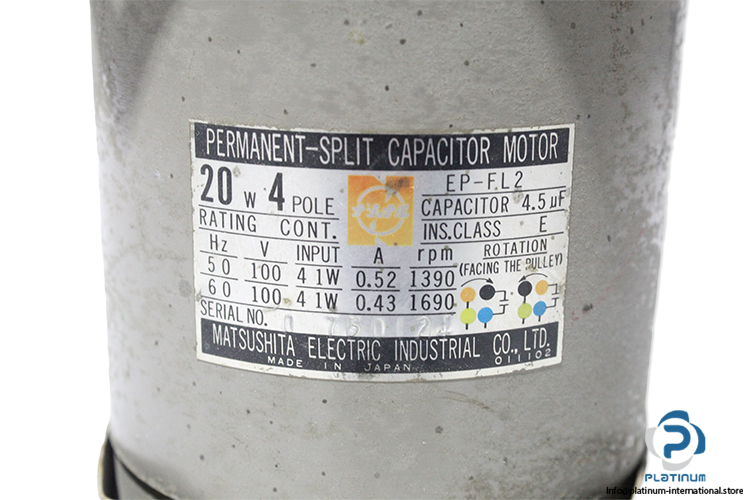

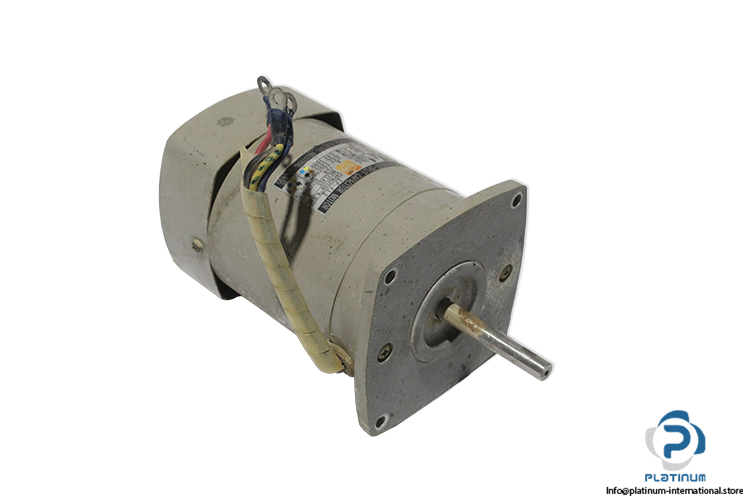

Matsushita EPFL2 Permanent-Split Capacitor Motor
The Matsushita EPFL2 permanent-split capacitor motor is designed for continuous-duty operation, delivering stable performance and efficient speed control in compact industrial and mechanical applications.
Manufacturer: Matsushita Electric Industrial
Type: Permanent-Split Capacitor Motor
Model: EPFL2
50 Hz Operation:
60 Hz Operation:
Suitable for compact drive systems, small machinery, and precision equipment requiring stable continuous motor operation.
| Number of Poles | 4 Pole |
| Rated Power | 20 W |
| Duty Rating | Continuous (CONT.) |
| Voltage | 100 V |
| Input Power | 41 W |
| Current | 0.52 A |
| Speed | 1390 rpm |
| Voltage | 100 V |
| Input Power | 41 W |
| Current | 0.43 A |
| Speed | 1690 rpm |
| Capacitor | 4.5 microF |
| Insulation Class | E |
| Rotation Direction | Indicated (Facing the Pulley) |
