Mayr 20/017.000.2SO Brake Rectifier

Name: MAYR 20/017.000.2SO BRAKE RECTIFIER
SKU: 1061475
Availability: LimitedAvailability

mayr-2_017.000.2.2SO-brake-rectifier-(Used)

mayr-2_017.000.2.2SO-brake-rectifier-(Used)-1

mayr-2_017.000.2.2SO-brake-rectifier-(Used)-2

중고

재고 있음1 단위즉시 배송 가능

MAYR 브레이크 정류기 20/017.000.2SO, ROBA® 스위치, 200-500 V AC 입력, 1.8 A 출력, IP20/IP65, 산업용 제동 제어, 온도 범위 -25에서 70°C.

제조업체

MAYR

SKU

1061475

카테고리

Brake Rectifiers

상태

중고

1/8 20/017.000.2SO 200-500 25 70°C a AC Brake Braking Control Industrial Input IP20/IP65 Mayr Rectifier ROBA-Switch Systems Temperature to V voltage

방대한 재고

글로벌 배송

전문 지원

품질 보장

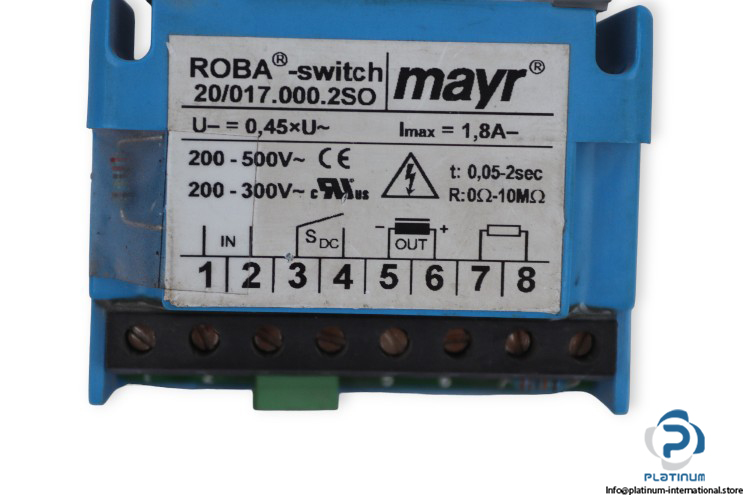

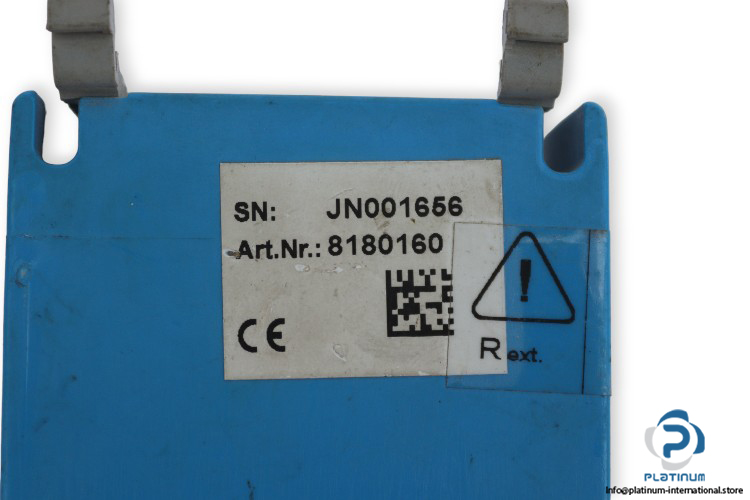

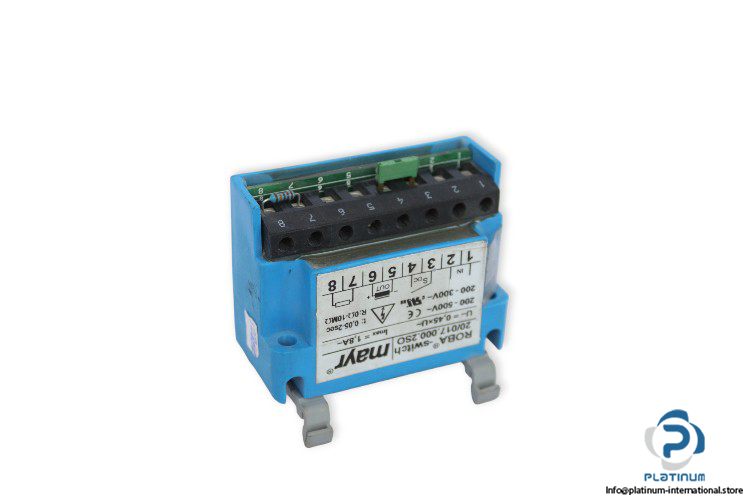

MAYR Brake Rectifier 20/017.000.2SO

The MAYR Brake Rectifier 200170002SO is designed for efficient braking in industrial applications. Part of the ROBA®-Switch range, it offers robust performance and precise control over brake systems, providing input voltage from 200 to 500 V AC and an output current of 1.8 A. This rectifier operates across a frequency range of 50 to 60 Hz, and is designed to ensure the optimal performance of braking systems, even in harsh environments.

ðŸ”§ Technical Specifications:

Manufacturer: MAYR
Type: Brake Rectifier
Model: 20/017.000.2SO
Art. No.: 8180160
Range: ROBA®-Switch
Input Voltage: 200 to 500 V AC
Output Current: 1.8 A
Frequency: 50 to 60 Hz
Resistance: 0 to 10 M„¦
Time Range: 0.05 to 2 Sec
Protection Class: IP20 / IP65
Temperature: -25 to 70 °C
Dimensions: 84.6 x 64 x 54 mm

Engineered for reliability and performance, the MAYR Brake Rectifier offers the perfect solution for controlling brake systems under varying environmental conditions.
