Mechan Controls HE1-SS-21-DC-03M Safety Switch
신제품
재고 있음1 단위즉시 배송 가능
Safety Switch
Mechan Controls HE1-SS-21-DC-03M safety switch with 24 V DC supply, 1NO + 2NC contacts, stainless steel body, IP67 protection, and 3 m cable connection.1NO24260972NCCableControlsdcHE1-SS-21-DC-03MIndustrialInterlockIP67MachineMechanSafetystainlessSteelSwitchV
방대한 재고
글로벌 배송
전문 지원
품질 보장

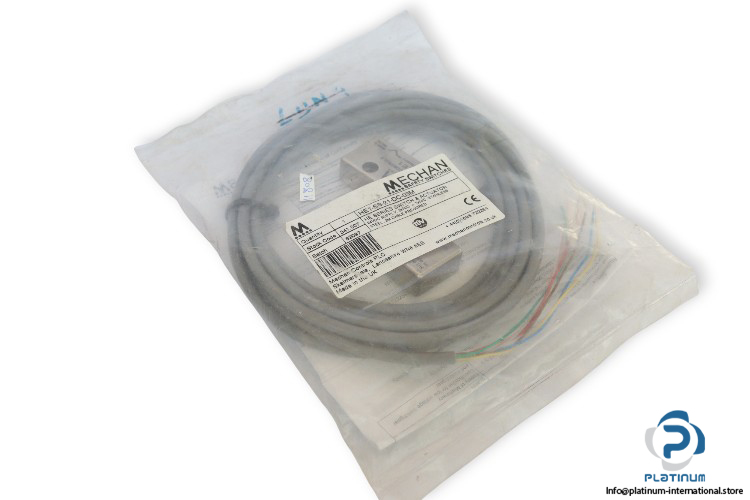

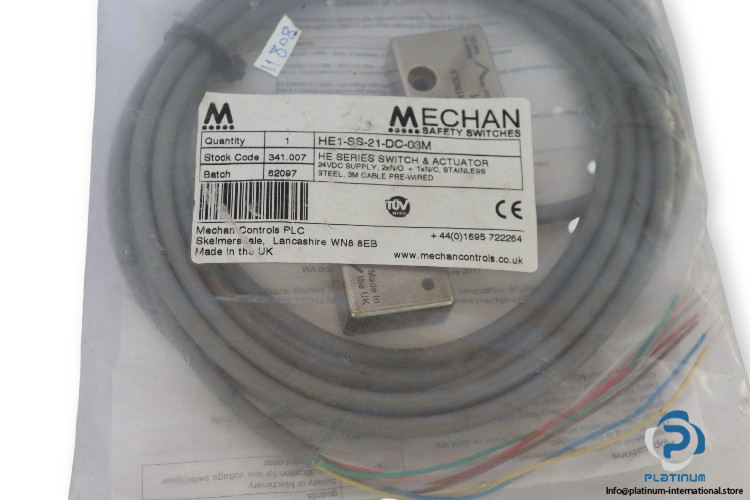

Mechan Controls HE1SS21DC03M Safety Switch
The Mechan Controls HE1-SS-21-DC-03M is a stainless steel safety switch designed for industrial safety monitoring and access control applications, providing reliable performance in harsh environments.
Manufacturer: MECHAN CONTROLS
Type: Safety Switch
Model: HE1-SS-21-DC-03M
Part No.: 26097
| Supply Voltage | 24 V DC |
| Contacts | 1 Normally Open (NO) + 2 Normally Closed (NC) |
| Contact Ratings | 24 V DC, 400 mA |
| Connection | Cable (3 m) |
| Material | Stainless Steel |
| Protection Class | IP67 |
| Ambient Temperature | -25 … 55 °C |
| Dimensions | 29 x 53 x 13.5 mm |
