MEDIOCOD 11780.994 Incremental Encoder
The MEDIOCOD 11780.994 is a precision incremental encoder engineered for accurate speed and position feedback in industrial environments. Featuring a 7.5 mm shaft and a robust 7-pin interface, this encoder supports both NPN and PNP output configurations, making it versatile for integration across control systems. Operating at 9 to 24 V DC, it ensures reliable signal transmission. The IP65-rated housing provides strong protection against dust and water, making it suitable for demanding conditions in automation, robotics, and machinery applications.
- Manufacturer: MEDIOCOD
- Type: Incremental Encoder
- Model: 11780.994
Technical Specifications:

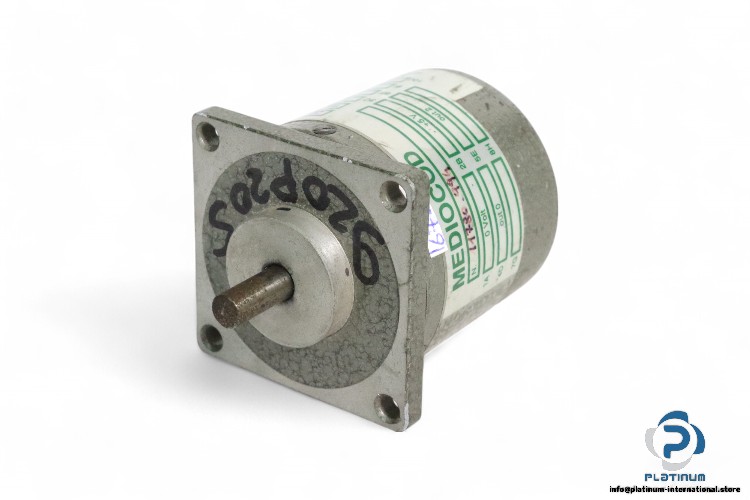

- Shaft Diameter: 7.5 mm
- Output Voltage: 9 / 24 V DC
- Principle of Operation: Incremental

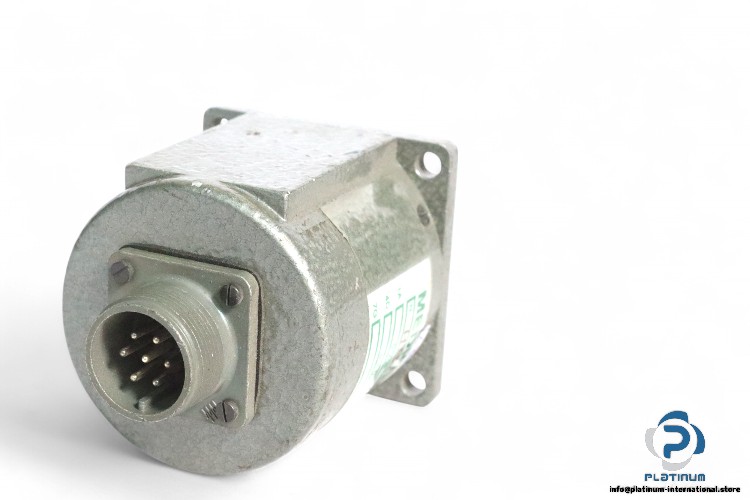

- Number of Pins: 7
- Output Circuits: NPN / PNP
- Degree of Protection: IP65
Applications:
- Motor feedback systems
- Industrial automation
- Positioning control in robotics
- Conveyor and machinery motion systems
