Minimax FMZ5000SIO1 Conventional Detector Module
중고
재고 있음1 단위즉시 배송 가능
77,77$
기존형 감지기 모듈 MINIMAX FMZ5000SIO1은 RS-232 출력, 19-29V DC 동작 및 화재 안전 시스템 통합을 위한 IP20 보호 기능을 갖춘 기존형 감지기 모듈입니다.
19-29VConventionaldcDetectionDetectorFireFMZ5000SIO1IndustrialInterfaceIP20MinimaxModuleProtectionRS-232Safety
방대한 재고
글로벌 배송
전문 지원
품질 보장

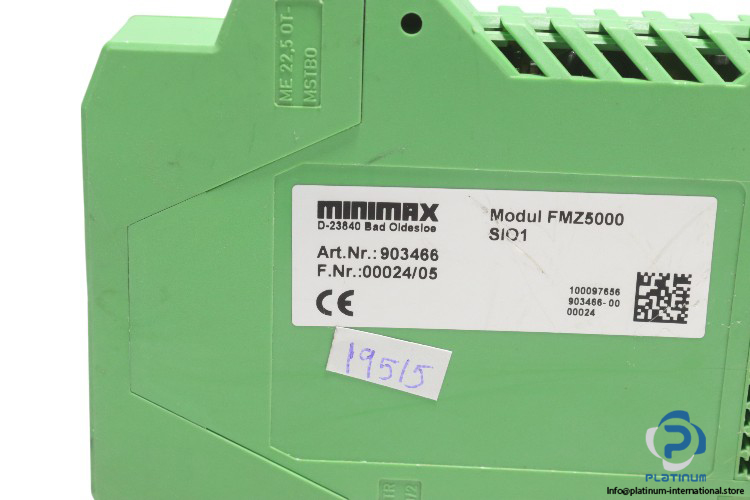

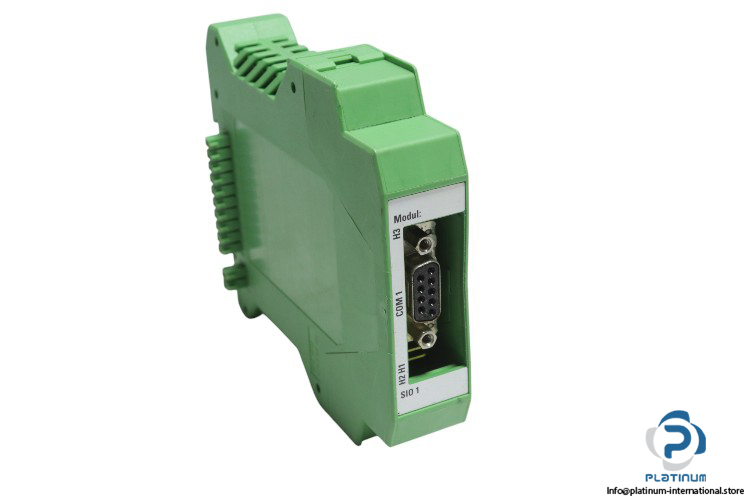

MINIMAX FMZ5000SIO1 Conventional Detector Module
The MINIMAX FMZ5000SIO1 Conventional Detector Module is a reliable interface for fire detection and safety systems, providing efficient communication and control. Designed for vertical installation, this module features a durable polyamide enclosure and RS-232 output for seamless integration.
Manufacturer: MINIMAX
Type: Conventional Detector Module
Model: FMZ5000SIO1
Art. No.: 903466
| Operating Voltage | 19 V - 29 V DC |
| Current | 42 mA DC |
| Outputs | COM1 RS-232 SUB-D socket |
| Terminal Cross-Section Max. | 2.5 mm² (AWG 13) |
| Ambient Temperature | -5 to 40°C |
| Degree of Protection | IP20 |
| Enclosure Material | Polyamide PA6.6, Green |
| Installation Position | Vertical |
| Dimensions (W x H x D) | 22.5 x 99 x 114.5 mm |
