Moeller AT4/11-1/I/IB Position Switch
중고
재고 있음1 단위즉시 배송 가능
19,99$
Position Switch
Reliable MOELLER position switch with 1 NO + 1 NC contact, IP65 protection, and rated for 400 V / 4 A and 230 V / 6 A operation, ideal for industrial automation.
방대한 재고
글로벌 배송
전문 지원
품질 보장

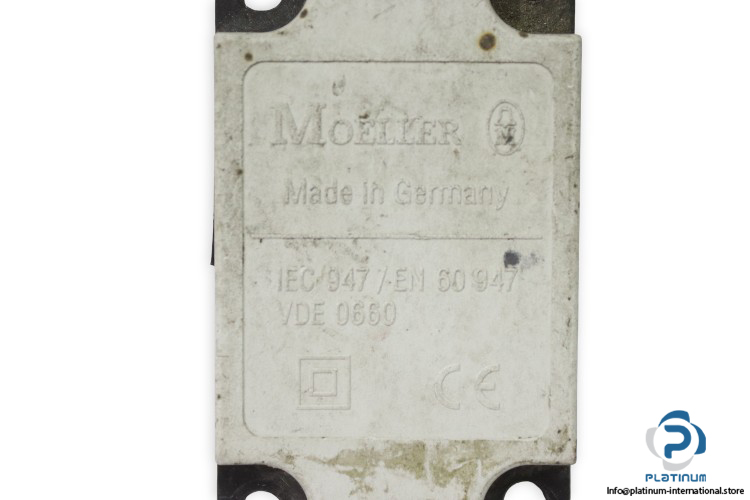

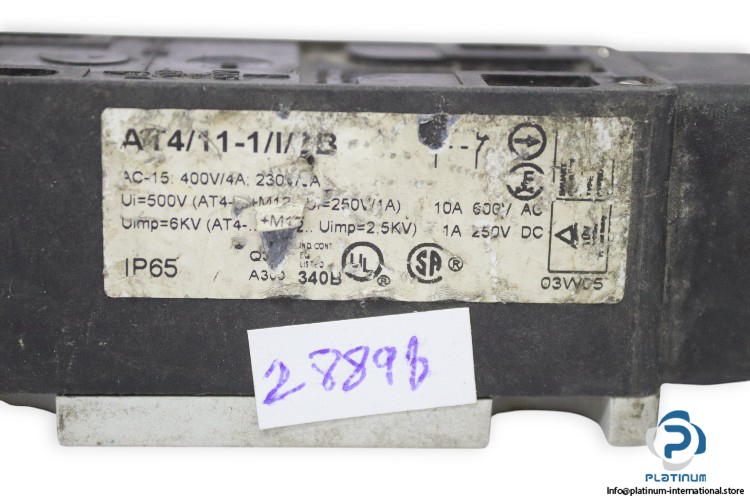

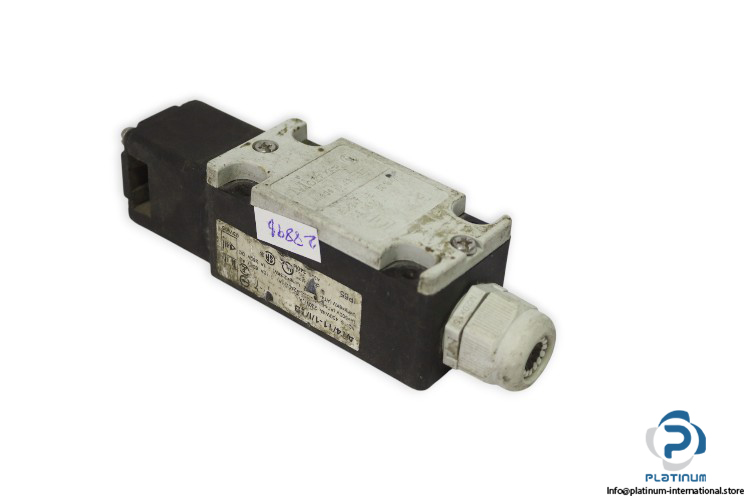

MOELLER AT4/11-1/I/IB Position Switch
The MOELLER AT4/11-1/I/IB is a durable position switch designed for precise and reliable position detection in industrial automation systems. Built for long service life, it delivers excellent mechanical strength, electrical reliability, and environmental resistance for various industrial applications.
Manufacturer: MOELLER
Type: Position Switch
Model: AT4/11-1/I/IB
| Rated Operational Ratings | AC-15: 400 V, 4 A / 230 V, 6 A |
| Rated Insulation Voltage | 500 V AC |
| Rated Thermal Current | 10 A |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Contact Ratings | 600 V AC, 10 A / 250 V DC, 1 A |
| Housing Material | Plastic |
| Protection Class | IP65 |
| Ambient Operating Temperature | -25 / 70 °C |
| Dimensions | 83 x 56 x 30 mm |
