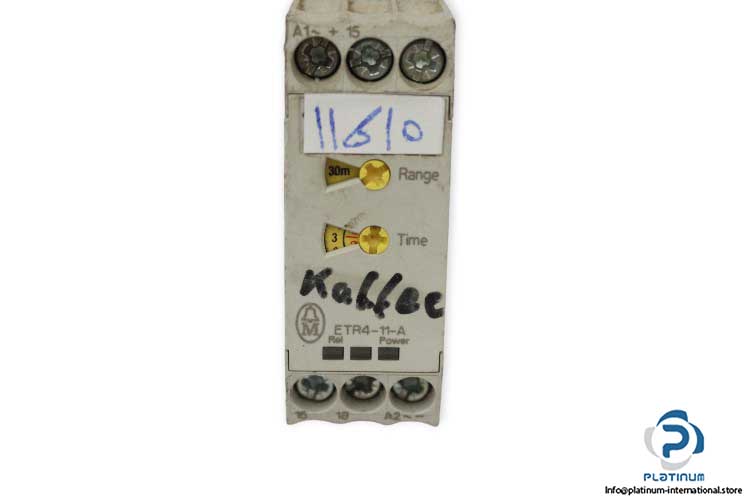

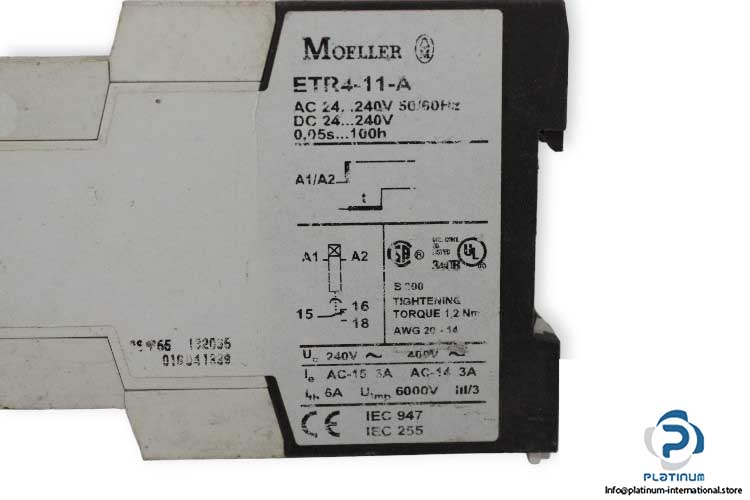

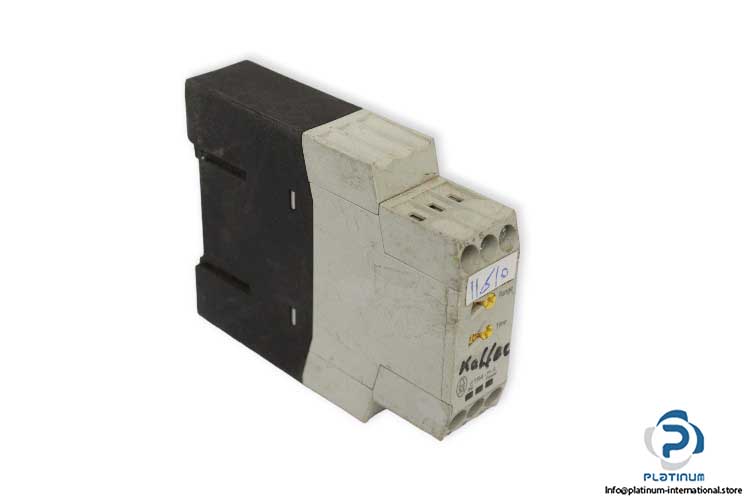

Moeller ETR4-4-11-A Time Relay
Manufacturer: MOELLER
Type: Time Relay
Model: ETR4411A
Rated Control Voltage: 24 … 240 V AC / DC
Rated Operational Voltage: 240 / 400 V AC
Rated Operational Current: AC-15/14: 3 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Rated Thermal Current: 6 A
Time Delay: 0.05 s … 100 h
Number of Poles: 3-Pole
Contact: 1 Changeover (CO)
Protection Class: IP20
Ambient Temperature: -25 … 60 °C
Dimensions: 82 x 23 x 103 mm
