Monitran MTN/1187Q-5 Accelerometer
신제품
재고 있음1 단위즉시 배송 가능
444,44$
Accelerometer
The **MONITRAN MTN/1187Q-5 Accelerometer** provides reliable vibration measurement with 4-20mA DC output, a dynamic range of 50g peak, and stainless steel housing. With IP67 sealing, it operates in a wide temperature range from -25 to 90°C.
방대한 재고
글로벌 배송
전문 지원
품질 보장

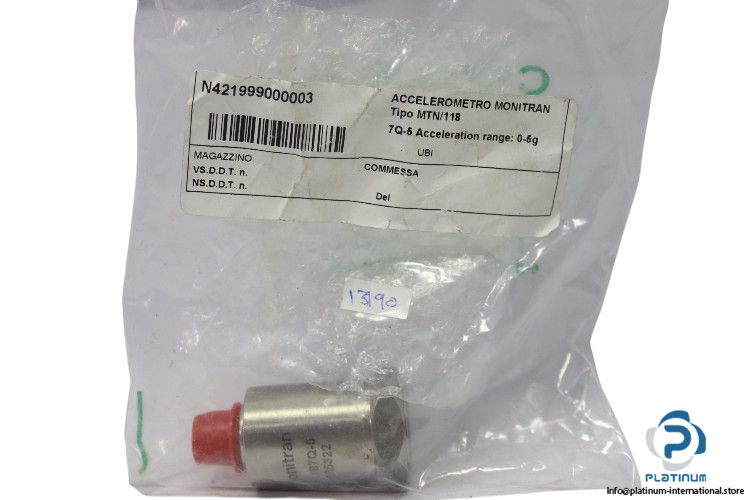

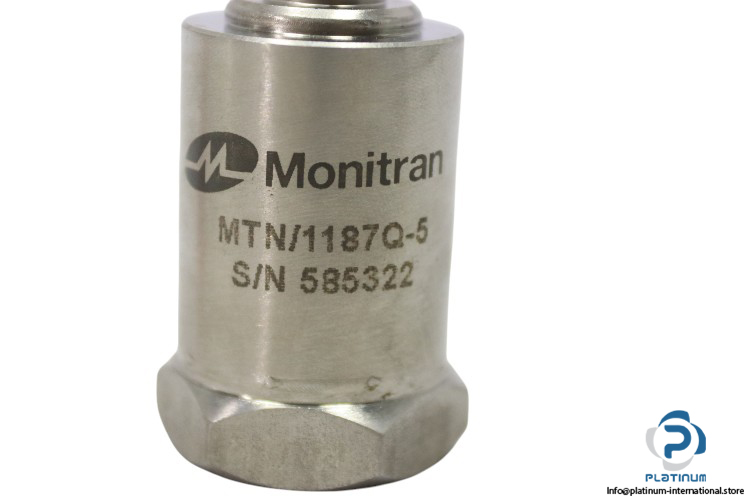

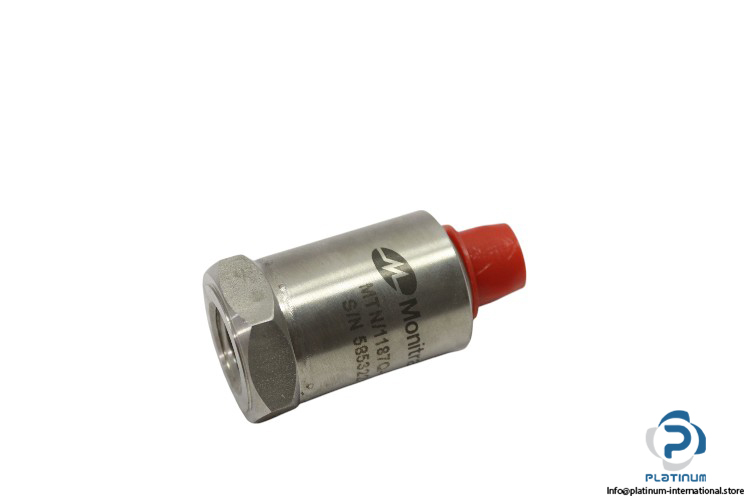

MONITRAN MTN/1187Q-5 Accelerometer
The **MONITRAN MTN/1187Q-5** accelerometer is designed for precise measurement of vibration and acceleration in various industrial applications. With a robust stainless steel case and a broad operating temperature range, this sensor ensures reliable performance in challenging environments.
Manufacturer: MONITRAN
Type: Accelerometer
Model: MTN/1187Q-5
MRN: N421999000003
Serial No: 585322
Technical Data:
- Output Current: 4-20mA DC
- Supply Voltage: 12-32V DC (4-20mA)
- Frequency Response: 2Hz to 1kHz ±10%
- Mounted Base Resonance: 5kHz (nominal)
- Isolation: Base isolated
- Dynamic Range: 50g peak
- Transverse Sensitivity: Less than 5%
- Operating Temperature: -25 to 90°C
- Temperature Sensitivity: 0.08%/°C
- Case Material: Stainless steel

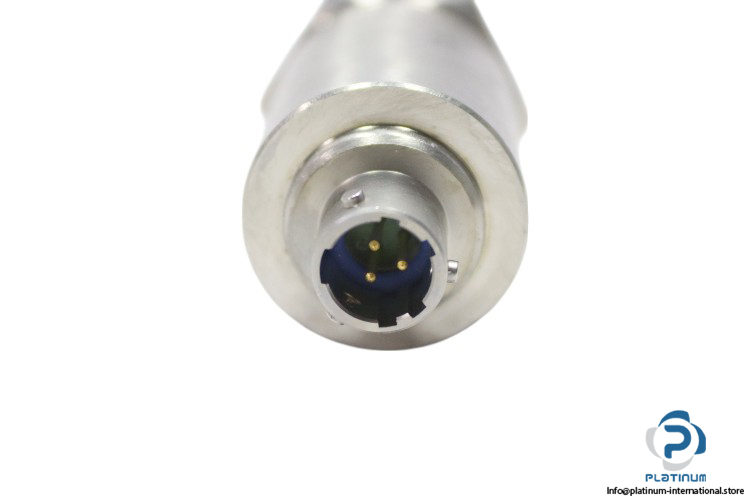

- Mating Connector: MTN/MH008
- Mounting Torque: 8Nm
- Sealing: IP67
- Dimensions: Diameter 27 mm, Length 57 mm
