MTS Sensor RPS1150MD701S2B1100 Linear-Position Sensor
요청 시 제공 가능
995,00$
LINEAR-POSITION SENSOR MTS RPS1150MD701S2B1100 선형 센서는 1150 mm 스트로크에 대해 0.005 mm 해상도와 0.001% 반복성을 제공합니다. IP65 보호 등급과 24비트 이진 출력으로 고압의 열악한 산업 환경에 적합하게 제작되었습니다.
1150mm24-BitBinaryControlHighIndustrialIP65LinearMotionMTSOutputPositionPrecisionRPS1150MD701S2B1100SensorStrokeTemposonics
방대한 재고
글로벌 배송
전문 지원
품질 보장

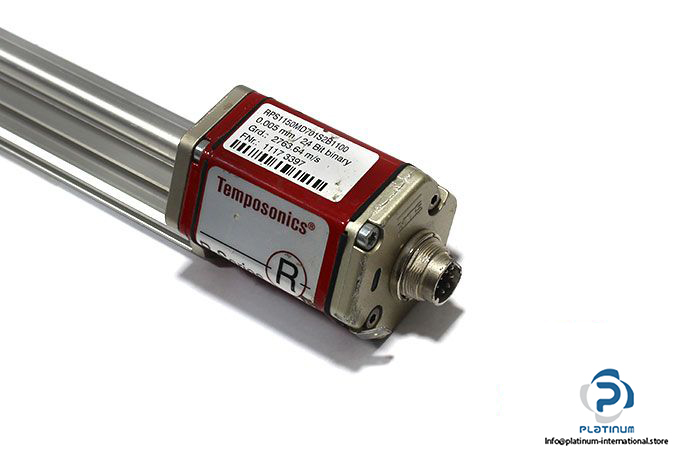

MTS SENSOR / TEMPOSONICS RPS1150MD701S2B1100 LINEAR-POSITION SENSOR
Engineered for precise motion control in the most demanding industrial environments, the RPS1150MD701S2B1100 sensor by MTS Sensor / Temposonics offers high accuracy, repeatability, and robust performance. Ideal for continuous operation under high-pressure and harsh conditions, this linear-position sensor supports reliable measurements over a long electrical stroke.
Manufacturer: MTS Sensor / Temposonics
Type: Linear-Position Sensor

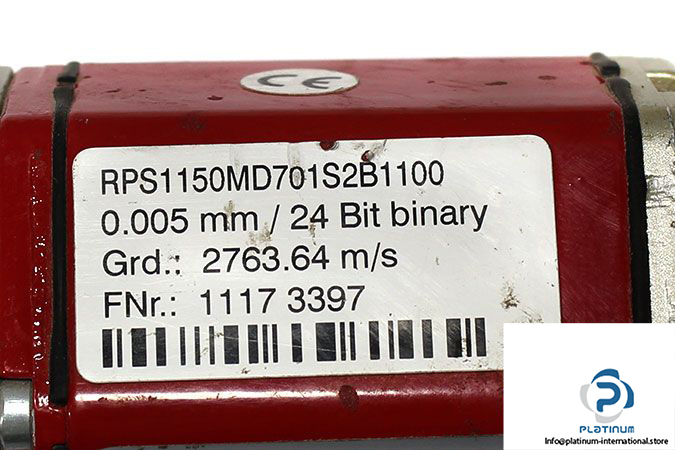

Model: RPS1150MD701S2B1100
Grade: 2763.64 m/s
Factory Number: 11173397
Technical Specifications
- Repeatability: Within 0.001%
- Electrical Stroke: 1150 mm
- Input Voltage: +24 Vdc (+20% “ 15%)
- Resolution: 0.005 mm
- Filtering Performance: Standard, no filter
- Signal Options: Measuring direction forward, async
- Data Length: 24 bits
- Output Format: Binary
- Integral Connector: 7-pin DIN (M16), male, standard
- Protection Class: IP65
Key Features
- Continuous Operation in Harsh Industrial Conditions
- Withstands High-Pressure Environments
- Designed for Fast, Precision Motion Control
