Multivac CX 1100-0910-1022 UPS Module
UPS 모듈 Multivac Sepp Haggenmueller CX1100-0910-1022 UPS 모듈은 24 V DC 전원, 1.1 A 출력 전류 및 4 A 충전 전류를 제공하며 IP20 보호가 적용된 산업 시스템에서 연속 전원을 위해 설계되었습니다.

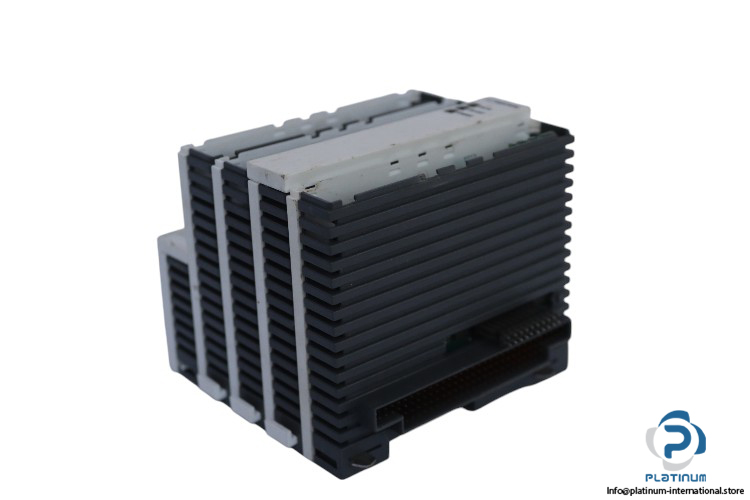

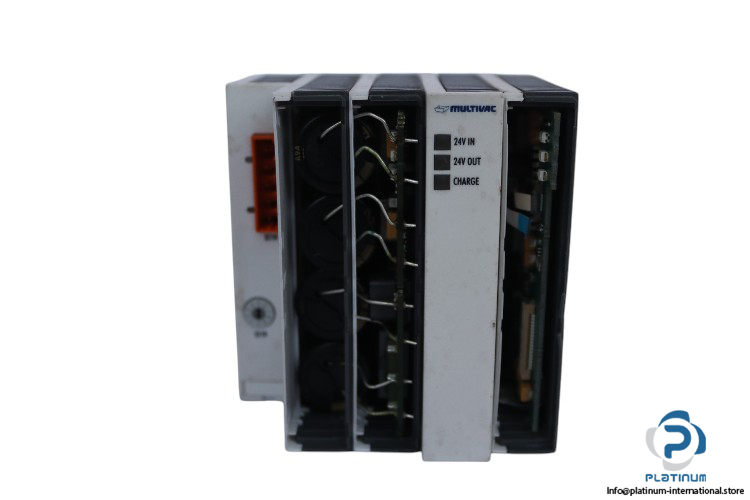

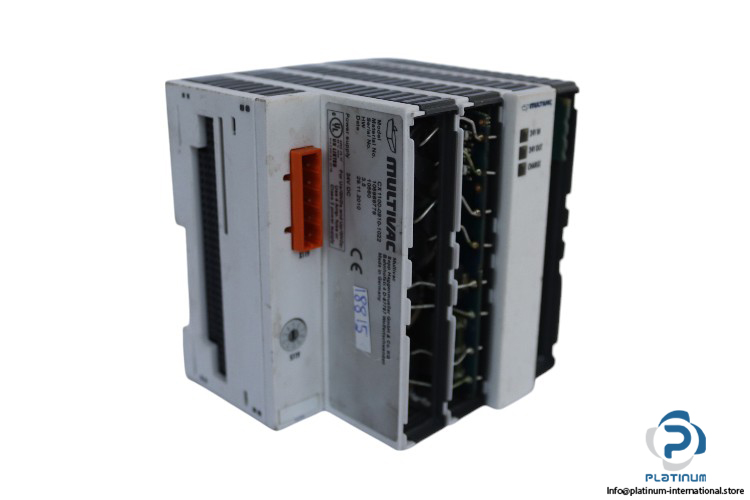

Multivac Sepp Haggenmueller CX1100-0910-1022 UPS Module
The Multivac Sepp Haggenmueller CX1100-0910-1022 UPS Module provides reliable and efficient backup power for various industrial applications. With a 24 V DC power supply and a maximum output current of 1.1 A, this UPS module ensures continuous operation during power interruptions. Featuring a charging current of up to 4 A and a charging capacity of 20 As, it is designed for demanding environments, offering excellent protection with IP20 rating.

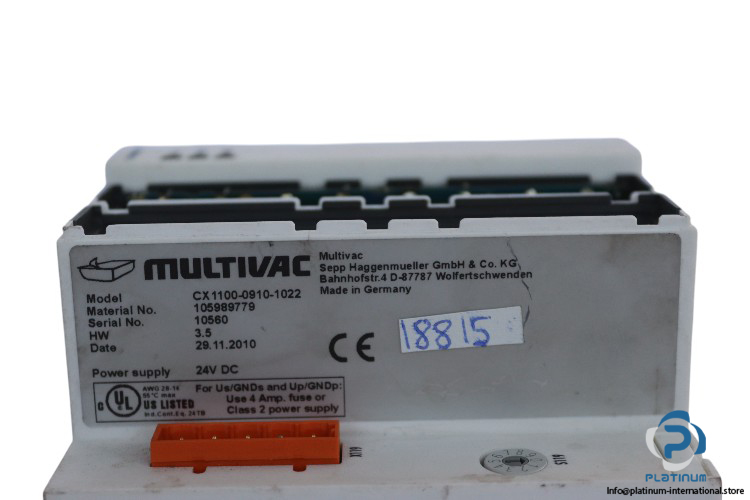

Manufacturer: Multivac Sepp Haggenmueller
Type: UPS Module
Model: CX1100-0910-1022
Material Number (Mat. No.): 105989779
The Multivac Sepp Haggenmueller CX1100-0910-1022 UPS Module is an essential component for ensuring uninterrupted power in sensitive industrial systems, with its efficient energy management and compact design.
| Power Supply | 24 V DC |
| Output Current Max | 1.1 A |
| Charge | 20 As |
| Charging Current | Max. 4 A |
| System Bus | 16 Bit |
| Max. Power Consumption | 2 W |
| Operating Temperature | 0 to +55 °C |
| Protection Class | IP 20 |
| Dimensions (W x H x D) | 76 x 100 x 91 mm |
