Murr 4000-68113-0000000 Modlink Msdd-SET
MURR Modlink MSDD-set 4000-68000-1210000

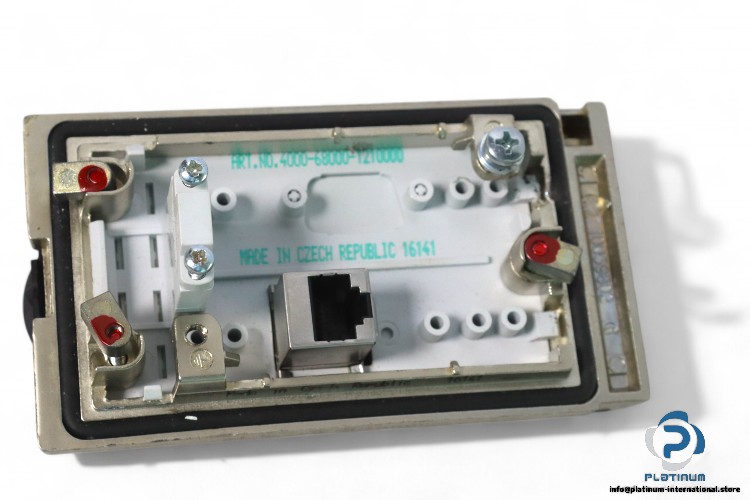

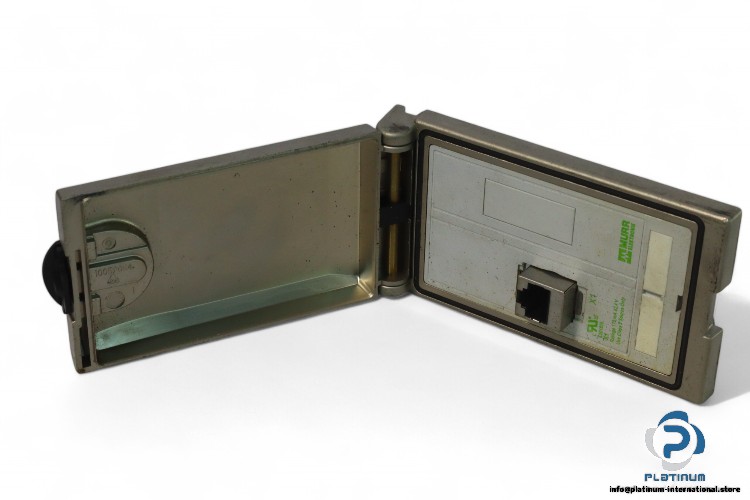

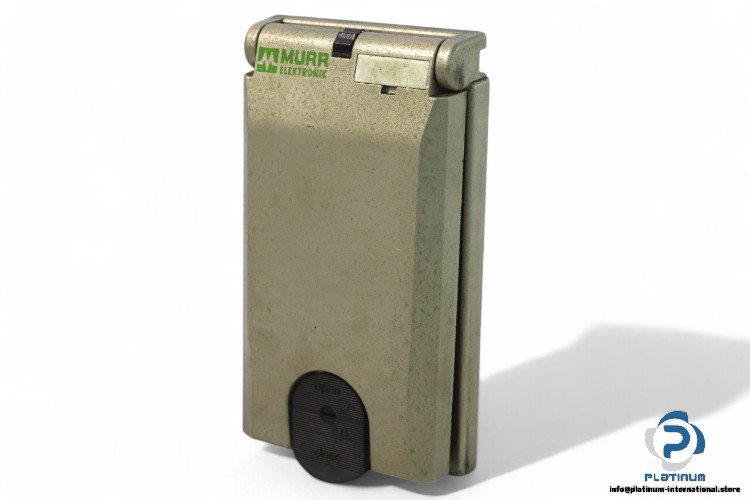

The MURR Modlink MSDD-set is a high-quality industrial modular connection system offering flexible solutions for a variety of applications. This set includes a robust housing frame and RJ45 connectors, designed for durable performance in harsh environments.
🔧 Technical Specifications:
- Manufacturer: MURR
- Type: Modlink MSDD-set
- Insert Art No.: 4000-68000-1210000

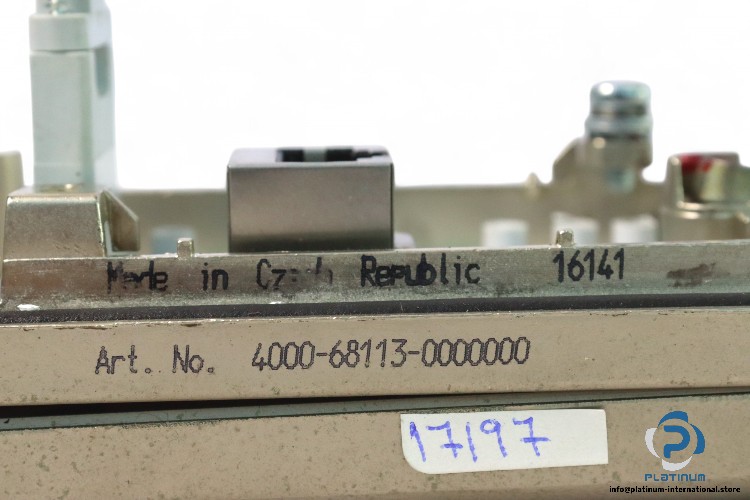

- Frame Art No.: 4000-68113-0000000
- RJ45: 1× RJ45, 8-pole metal, CAT5e (female/female)
- Additional Connector: 1× SUB-D9 (blind plug)
- Operating Voltage: 30 V AC / 42.4 V DC
- Operating Current: 175 mA
- Frame Protection Class: IP65 (EN IEC 60529)
- Temperature Range: -10 to 60 °C
- Suitable Installation Wall Thickness: min. 1 mm, max. 5 mm
- Coating Housing: Surface finished
- Housing Material: Fine zinc die casting
- Dimensions: 120 x 66 mm
