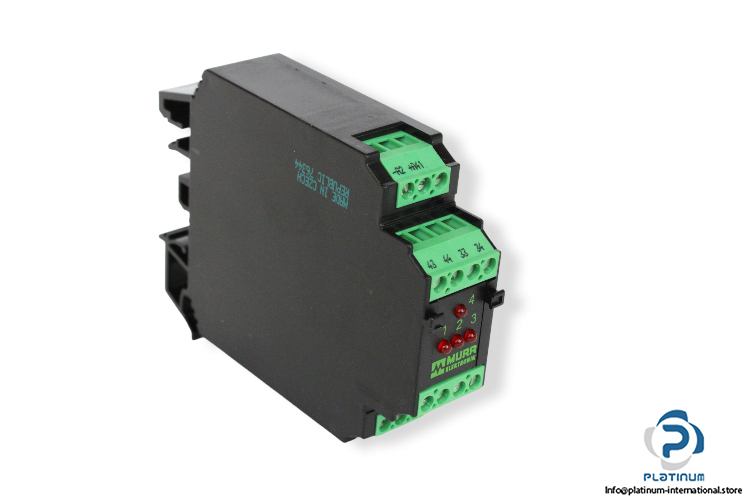

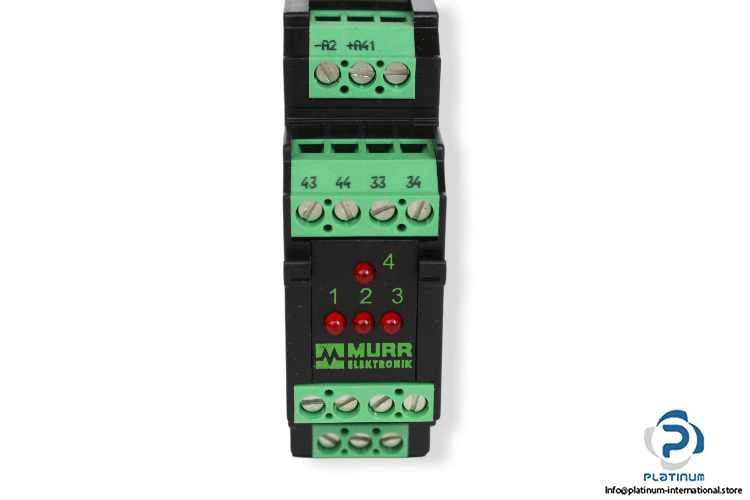

Murr 512498 Output Relay
Manufacturer: Murr
Type: Output Relay

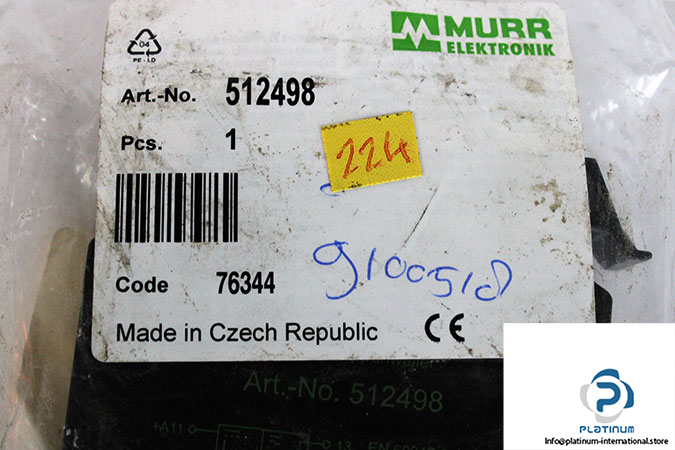

Part No.: 512498
Input voltage: 24 V DC (19.2 … 30 V DC)
Input current: 16 mA
Switching voltage max.: 250 V AC/DC
Frequency: 50 … 60 Hz
Output current: 5 A
Power rating: max. 1250 VA/240 W

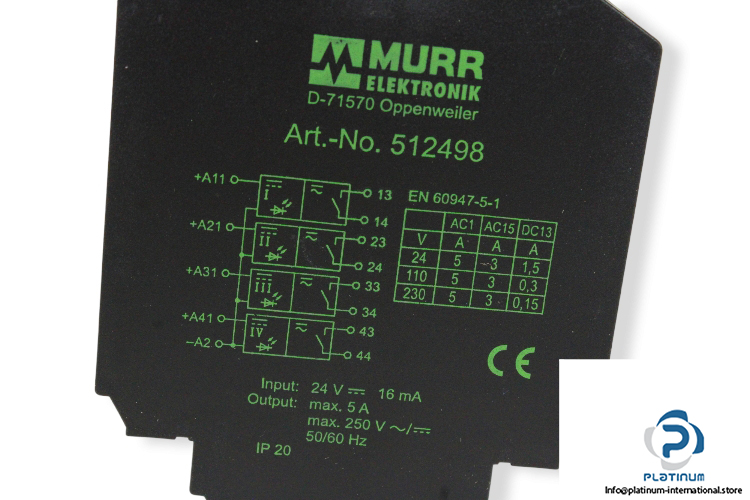

Output: 4 relays; each 1 NO contact
Contact rating
AC-15: 3 A (24/110/230 V AC)
AC-1: 5 A (24/110/230 V AC)
DC-13: 1.5 A (24 V DC); 0.3 A (110 V DC); 0.15 A (230 V DC)
Contact material: Ag hv
Temperature range: -20 … +50 °C
Mounting method: DIN-rail
Degree of protection: IP20
Dimension: 102 x 22.5 x 75 mm
