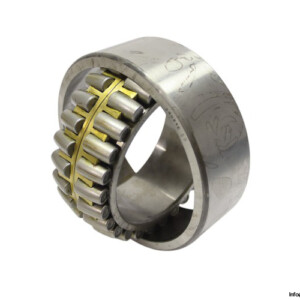

Nachi 24024EKC3 Spherical Roller Bearing
신제품
재고 있음3 단위즉시 배송 가능
구면 롤러 베어링 Nachi 24024E C3 K30은 120mm 보어, K30 테이퍼 보어 및 C3 간격을 갖춘 견고하고 고성능의 구면 롤러 베어링입니다. 황동 케이지로 설계되어 극한 하중과 최대 3450rpm의 속도를 지원합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장

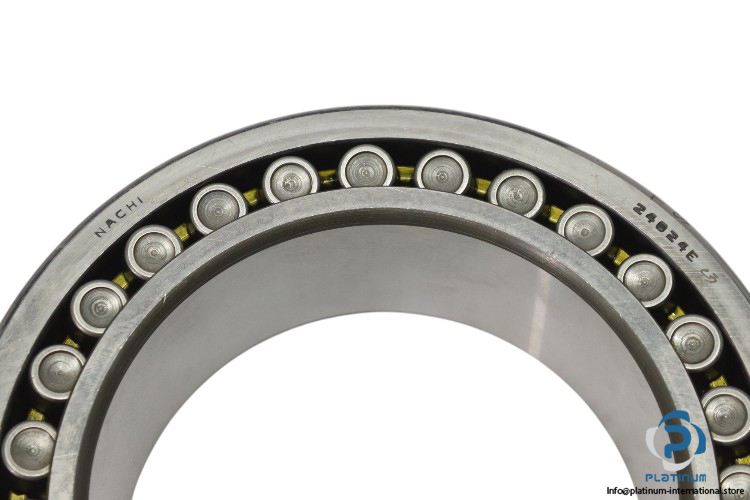

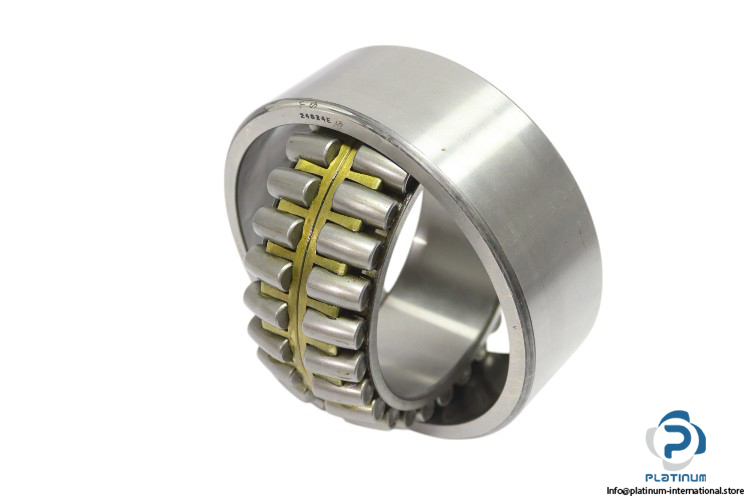

Nachi 24024E C3 K30 Spherical Roller Bearing
The Nachi 24024E C3 K30 is a high-capacity spherical roller bearing engineered for heavy-duty industrial applications. Designed with a K30 tapered bore (1:30) and C3 clearance, it delivers superior alignment capability, high-speed performance, and enhanced durability under extreme loads. The brass cage ensures optimal stability and strength in high-vibration environments.
Manufacturer: Nachi
Type: Spherical Roller Bearing
Model: 24024E C3 K30
| Bore Diameter (d) | 120 mm |
| Outer Diameter (D) | 180 mm |
| Width (B) | 60 mm |
| Dynamic Load Rating (Cr) | 540000 N |
| Static Load Rating (C0r) | 683000 N |
| Grease Limit Speed | 2550 rpm |
| Oil Limit Speed | 3450 rpm |
| Cage Type | Brass |
| Bore Type | K30, Tapered Bore 1:30 |
| Clearance | C3 |
