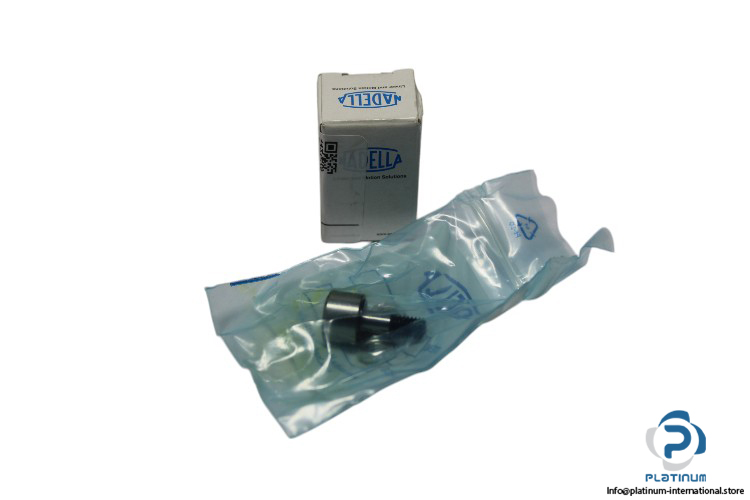

Nadella GCL 14 Stud Type CAM Follower
신제품
재고 있음2 단위즉시 배송 가능
스터드 타입 캠 팔로워 Nadella GCL 14 스터드 타입 캠 팔로워는 14mm 외경, M6x1 나사산 스터드 및 산업용 애플리케이션을 위한 1500N 동적 하중 용량을 특징으로 합니다.
방대한 재고
글로벌 배송
전문 지원
품질 보장
Nadella GCL 14 Stud Type Cam Follower (with Cylindrical Outer Ring)
The Nadella GCL 14 Stud Type Cam Follower is designed for high-load applications in industrial automation and machinery. Featuring a cylindrical outer ring, M6x1 threaded stud, and robust load-bearing capacity, this cam follower ensures smooth motion and durability.
Manufacturer: Nadella
Type: Stud Type Cam Follower (with Cylindrical Outer Ring)
Model: GCL 14
Basic Load Ratings:
| Outside Diameter (D) | 14 mm |
| Attachment Diameter (d) | 6 mm |
| Total Length (B1) | 26 mm |
| Width Outer Ring (C) | 9 mm |
| Thread Stud (G) | M6x1 |
| Dynamic Load (Fr) | 1500 N |
| Static Load (F0r) | 2800 N |
| Speed Limits (Grease Lubrication) | 5500 rpm |
