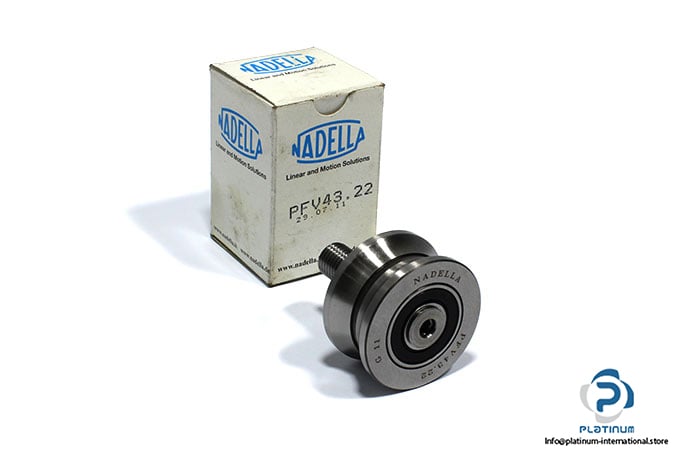

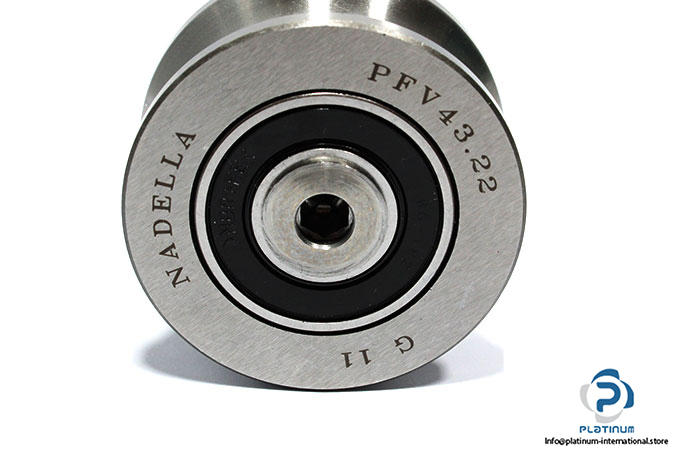

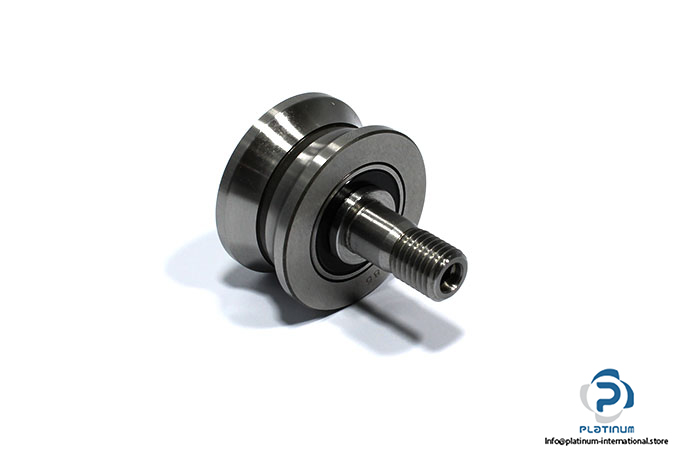

Nadella PFV43.22 Guide Roller

Manufacturer: NADELLA

Type: Guide rollers PFV with gothic arch profile

Model: PFV 43.22

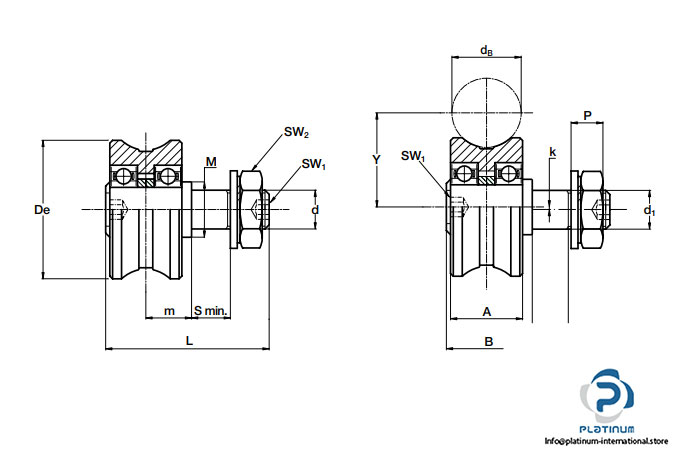

Dimensions

Outside diameter De: 43 mm

Guide Rail shaft diameter d_B: 22 mm

Stud diameter d₁: 12 mm

Total length L: 52 mm

Width outer ring A: 23 mm

Thread stud d: M12x1.5

Basic load ratings:

Dynamic C_w: 7600 N

Limit loads of the bearing:

Radial C_or: 4000 N

axial C_oa: 780 N

Limit loads of the stud:

Radial F_r: 3150 N

axial F_a: 820 N
