Nordson Problue 7 Adhesive Melter
중고
요청 시 제공 가능
Adhesive Melter
The Nordson PROBLUE 7 is a compact, high-efficiency adhesive melter with a 7-liter tank, 8.2 kg melt rate, and 14:1 piston pump, engineered for precise hot melt delivery in industrial settings.
방대한 재고
글로벌 배송
전문 지원
품질 보장

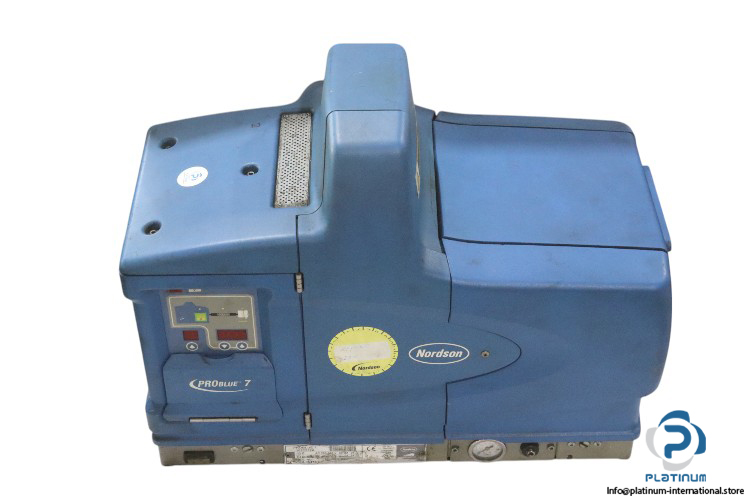

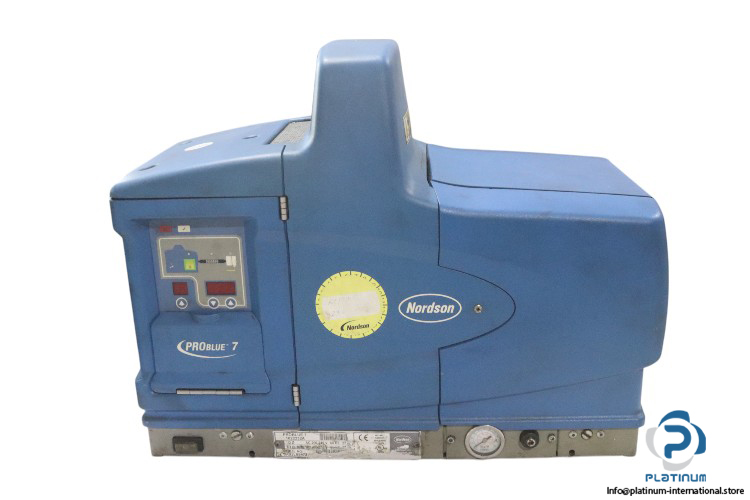

Nordson PROBLUE 7 Adhesive Melter
The Nordson PROBLUE 7 Adhesive Melter is a high-performance hot melt system built for consistent, efficient, and precise adhesive application in industrial environments. With a non-circulating tank design and a 14:1 SP-style piston pump, this unit is engineered for durability, safety, and optimal melt flow.
Manufacturer: Nordson
Type: Adhesive Melter
Model: PROBLUE 7

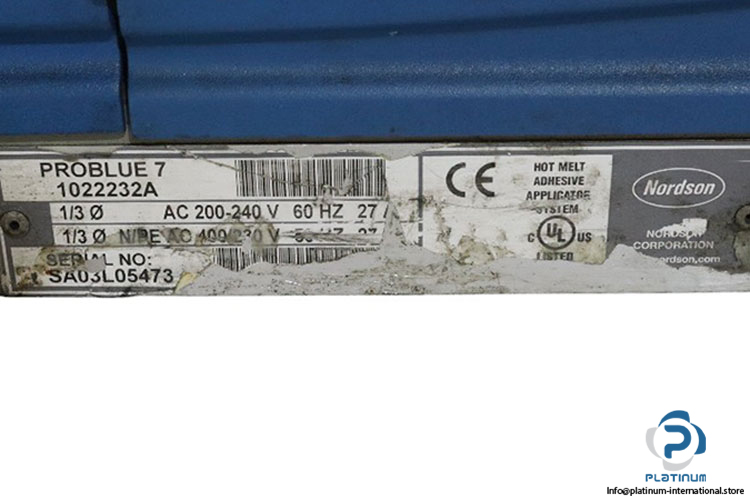

Part No.: 1022232A
Serial No.: SA03L05473
System Power Capacity:
Electrical Service Standard:
“ 200 to 240 VAC, 1 or 3 phase, 50/60 Hz
“ 200 to 240 VAC, 1 phase N/PE, 50/60 Hz
“ 400/230 VAC, 3 phase N/PE, 50/60 Hz
| Type of System | Non-circulating tank (14:1 SP-style piston pump) |
| Tank Volume | 7 liters |
| Holding Capacity | 6.8 kg (15 lb) |
| Throughput | 10.9 kg (24 lb) |
| Melt Rate | 8.2 kg (18 lb) |
| Maximum Pump Rate | 32.7 kg/hr (72 lb/hr) |
| Rated Current | 27 A |
| Hose Ports | 5 |
| “ 2 hoses/guns | 4200 watts |
| “ 4 hoses/guns | 6200 watts |
| “ 6 hoses/guns | N/A |
| Filter Type | Saturn® basket-style filter |
| Hydraulic Pressure | 8.7 MPa (1260 psi) |
| Operating Temperature Range | 40 to 230 °C |
| Ambient Temperature Range | 0 to 50 °C |
| Unit Dimensions (L x W x H) | 609 x 469 x 322 mm |
