Norgren RM/92080/M/80 Compact Cylinder
신제품
재고 있음2 단위즉시 배송 가능
Compact Cylinder
The NORGREN RM/92080/M/80 Compact Cylinder features an 80mm diameter and 80mm stroke length. It operates within 1-10 bar pressure, with a magnetic piston for reliable performance in industrial compressed air systems.3016N80mmActingAirAluminiumAnodizedBarrelCompactComponentsCompressedCylinderDoubleForceG1/4IndustrialMagneticPistonPneumatic
방대한 재고
글로벌 배송
전문 지원
품질 보장
NORGEN RM/92080/M/80 Compact Cylinder

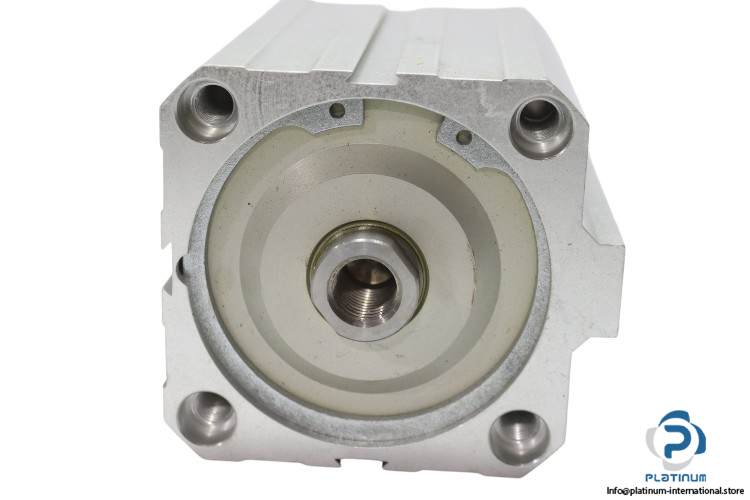

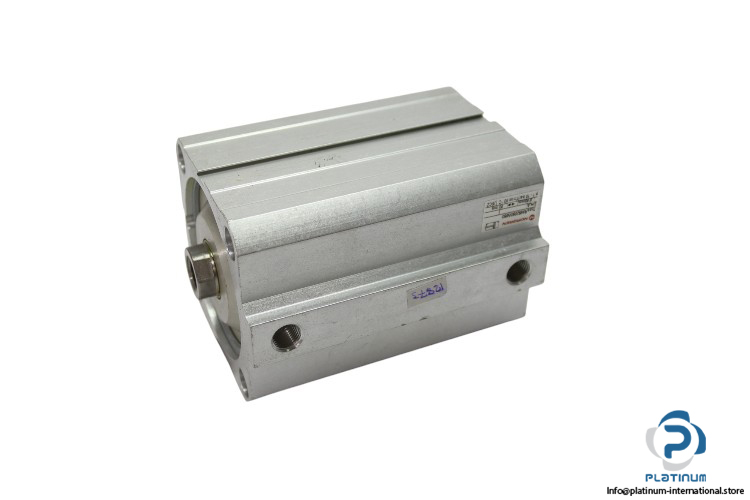

The **NORGREN RM/92080/M/80 Compact Cylinder** is a high-performance pneumatic cylinder designed for reliable operation in industrial applications. This double-acting cylinder is built with a magnetic piston and anodized aluminium barrel for enhanced durability and performance in compressed air systems.
Manufacturer: NORGREN
Type: Compact Cylinder

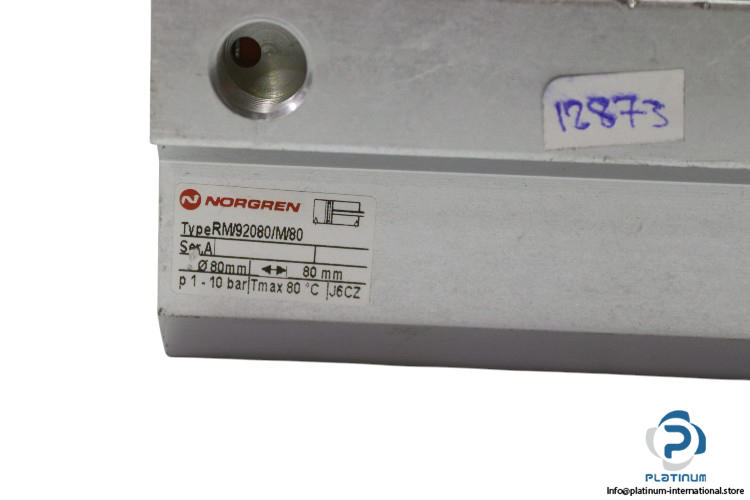

Model: RM/92080/M/80
Technical Data:
- Medium: Compressed air
- Operating Temperature: -5 … 80 °C, 23 … 176 °F
- Operating Pressure: 1 … 10 bar, 15 … 145 psi
- Port Size: G1/4
- Cylinder Diameter: 80 mm
- Stroke Length: 80 mm
- Operation: Double acting
- Cushioning: No cushioning
- Magnetic/Non-magnetic: Magnetic
- Theoretical Force: 3016 N
- Materials “ Barrel: Anodized aluminium
- Materials “ Piston Rod: Stainless steel (martensitic)
- Dimensions: 104 mm X 146 mm X 94 mm
