Novotechnik TS 150 Linear Encoder
중고
재고 있음1 단위즉시 배송 가능
포지션 트랜스듀서 Siedle Novotechnik TS 150은 152mm 전기 스트로크 및 5 kΩ 저항을 가진 정밀 포지션 트랜스듀서입니다. 견고한 산업용 사용을 위해 스테인리스강 막대 및 알루미늄 하우징으로 설계되었습니다.
150152mm3035kΩAdjustableAisiClampDeviceIndustrialLinearMeasurementNovotechnikPositionRODSensorSiedleStrokeTransducerTS
방대한 재고
글로벌 배송
전문 지원
품질 보장

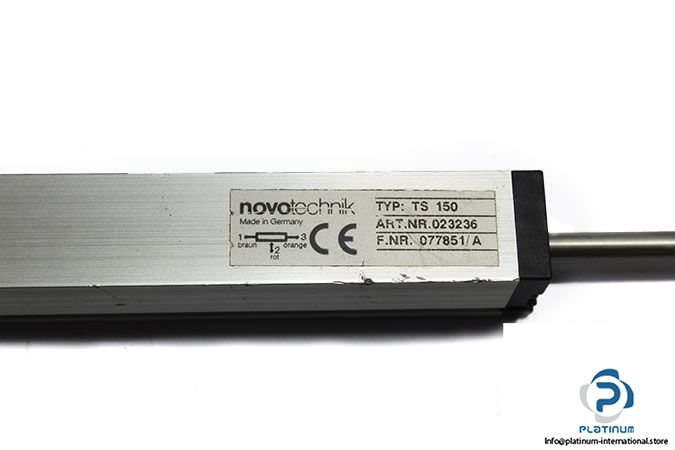

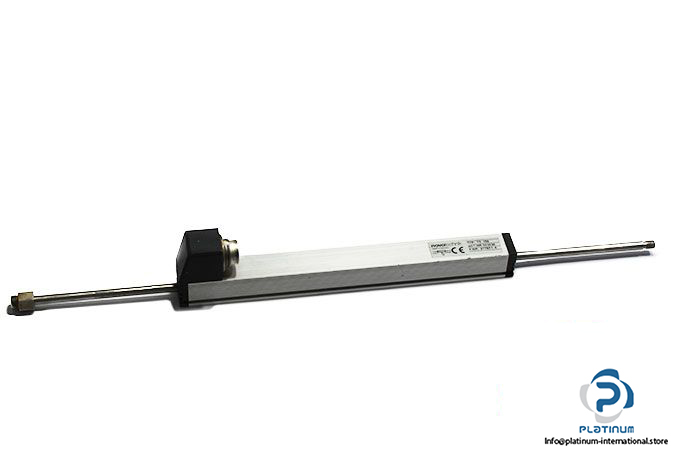

SIEDLE NOVOTECHNIK TS 150 POSITION TRANSDUCER
The TS 150 from Siedle Novotechnik is a high-precision position transducer engineered for accurate linear displacement measurements in industrial environments. With a robust aluminum housing and stainless steel actuating rod, this transducer ensures durability and long-term reliability in harsh conditions.
Manufacturer: Siedle Novotechnik
Type: Position Transducer
Model: TS 150
Part No.: 023236
REF NO: 077851/A
| Mounting | Adjustable clamps |
| Actuating rod | Stainless steel AISI 303 |
| Electrical Connection | 5-pin round connector IEC 130-9 |
| Electrical Stroke | 152 mm |
| Mechanical Stroke | 155 ±1.5 mm |
| Nominal Resistance | 5 kΩ |
| Body Length | 188 +1 mm |
| Housing | Aluminum |
| Operating Temperature | -30 / +100°C |
