NSK UCT206 N AV2S Take UP Ball Bearing Unit

Name: NSK UCT206 N AV2S TAKE UP BALL BEARING UNIT
SKU: 1030960
Availability: LimitedAvailability

nsk-UCT206-N-AV2S-take-up-ball-bearing-unit-(new)-(carton)

nsk-UCT206-N-AV2S-take-up-ball-bearing-unit-(new)-(carton)-1

nsk-UCT206-N-AV2S-take-up-ball-bearing-unit-(new)-(carton)-2

nsk-UCT204-N-AV2S-take-up-ball-bearing-unit-(new)-(carton)-4

신제품

재고 있음1 단위즉시 배송 가능

제조사: NSK 유형: 테이크업 볼 베어링 유닛 모델: UCT 206 N AV2S 하우징 번호: T206 베어링 번호: UC206

제조업체

NSK

SKU

1030960

카테고리

Plummer Block Housing Units

상태

신제품

bearing Block flanged NSK Pillow Take UCT Unit up

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: NSK
Type: take up ball bearing unit
Model: UCT 206 N AV2S
Housing No.: T206
Bearing No.: UC206

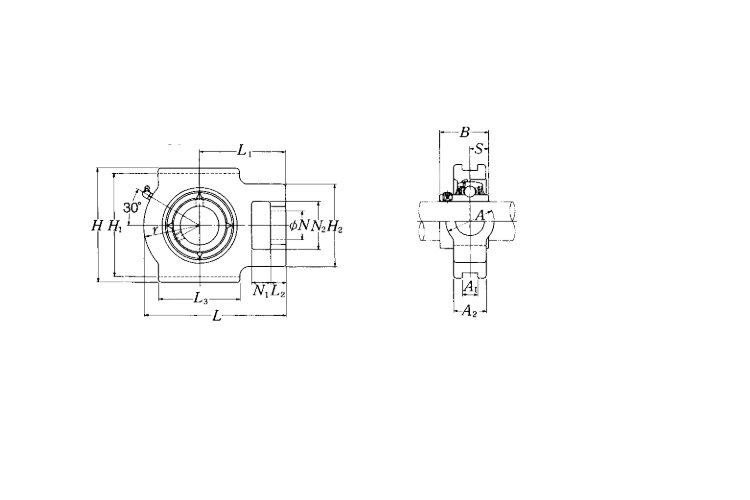

Shaft diameter: 30 mm
Overall width A: 37 mm
Width of inner ring B: 38.1 mm
Width of piloting groove A1: 12 mm
Overall height H: 102 mm
Height of attachment end H2: 56 mm
Overall length L: 113 mm
Diameter of attachment bolt hole N: 22 mm
Length of attachment slot N1: 16 mm
Height of attachment slot N2: 37 mm
Length of piloting groove L3: 57 mm
Housing type: Take-up
Material, housing: Cast iron
Locking Device: set screw locking
