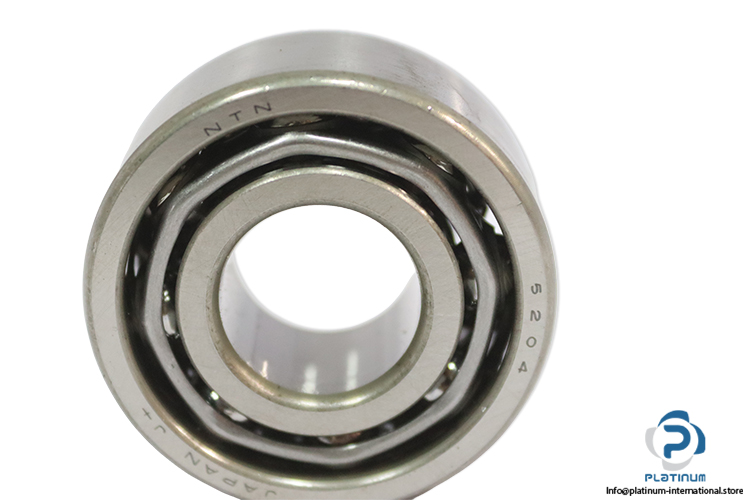

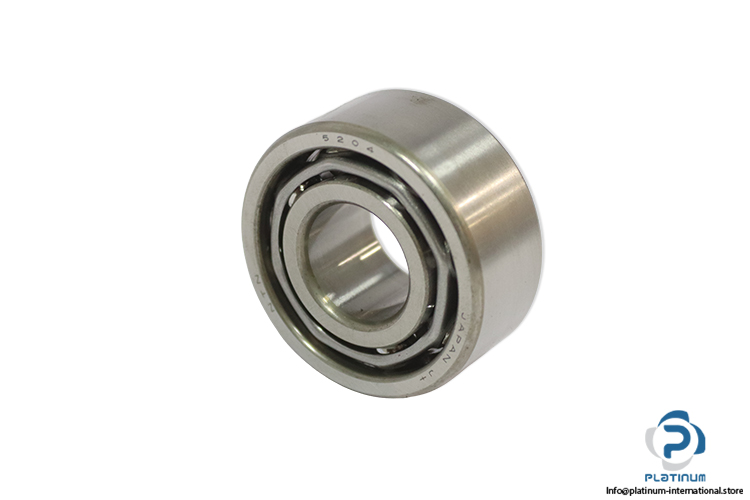

NTN 5204 Angular Contact Ball Bearing
NTN 5204 Angular Contact Ball Bearing
The NTN 5204 is a single row angular contact ball bearing designed to support combined radial and axial loads. It offers stable performance, precise operation, and reliable service life for industrial and mechanical applications.
Manufacturer: NTN
Type: Single Row Angular Contact Ball Bearing
Model: 5204
| Bore Diameter | 20 mm |
| Outer Diameter | 47 mm |
| Width | 20.6 mm |
| Contact Angle | 25 Degree |
| Basic Dynamic Load Rating | 19.6 kN |
| Basic Static Load Rating | 12.4 kN |
| Fatigue Load Limit | 0.75 kN |
| Oil Lubrication Limit Speed | 13,000 tr/min |
| Grease Lubrication Limit Speed | 10,000 tr/min |
| Cage | Steel Cage |
| Radial Clearance Class | CN |
| Precision Class | P0 |
