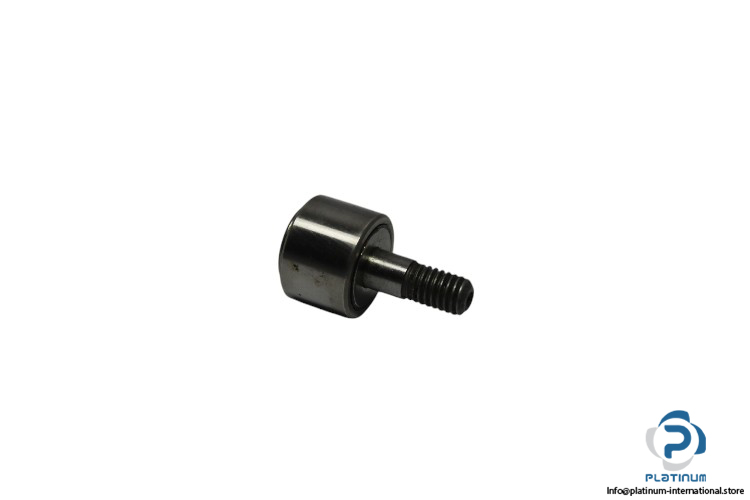

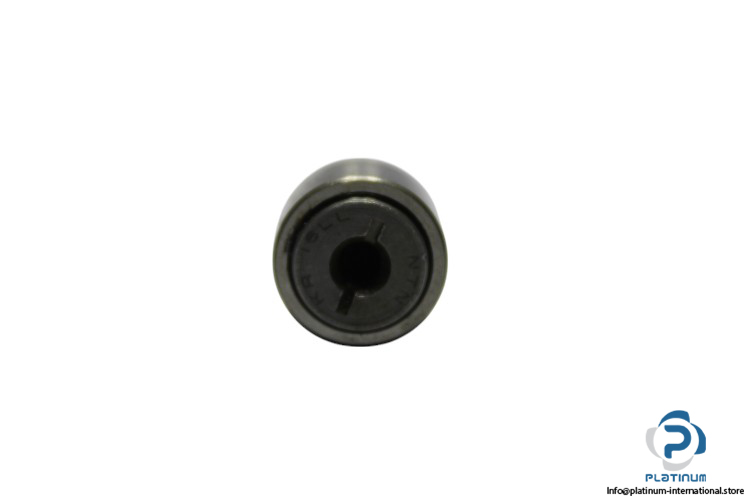

NTN KR 16LL Stud Type Track Roller
NTN KR 16LL Stud Type Track Roller
The NTN KR 16LL Stud Type Track Roller is designed for high-load capacity and smooth operation in cam mechanisms, linear motion systems, and conveyor applications. Featuring a sealed design for enhanced durability, this track roller provides optimal performance in demanding industrial environments.
Manufacturer: NTN
Type: Stud Type Track Roller
Model: KR 16LL
Basic Load Ratings, Radial:
Limiting Speed:
| Outside Diameter (D) | 16 mm |
| Diameter of Roller Stud (d1) | 6 mm |
| Inner Ring Width | 12 mm |
| Width Outer Ring | 11 mm |
| Thread (G) | M6x1 |
| Dynamic (Cr w) | 4050 N |
| Static (C0r w) | 4200 N |
| Grease Lubrication | 10,000 RPM |
| Oil Lubrication | 10,000 RPM |
| Sealing | LL, sealed on both sides |
