NTN M-ASPF202 Three Bolt Round Flange Unit
삼볼트 원형 플랜지 유닛 NTN M-ASPF202 유닛은 내구성이 뛰어난 PF203 하우징과 AS202 베어링을 특징으로 합니다. 정밀성과 효율성을 위해 설계되었으며 견고한 프레스 강철 구조와 원통형 보어 설계를 통해 신뢰할 수 있는 성능을 제공합니다.
NTN M-ASPF202 Three-Bolt Round Flange Unit

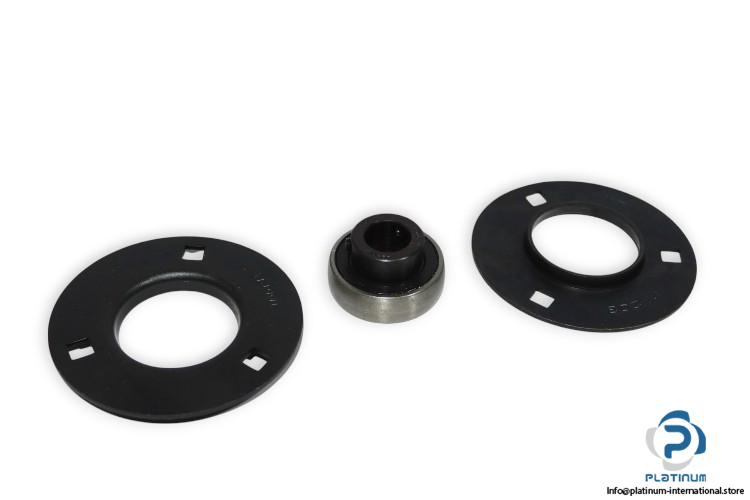

The NTN M-ASPF202 Three-Bolt Round Flange Unit is a precision-engineered solution for industrial applications requiring durability and reliability. Designed with the PF203 housing and AS202 bearing, this unit offers consistent performance and efficient operation under demanding conditions.
Manufacturer: NTN
Type: THREE BOLT ROUND FLANGE UNIT
Model: M-ASPF202
With its robust pressed steel construction and reliable locking mechanism, the NTN M-ASPF202 unit is ideal for a variety of industrial systems requiring stable and precise operation.

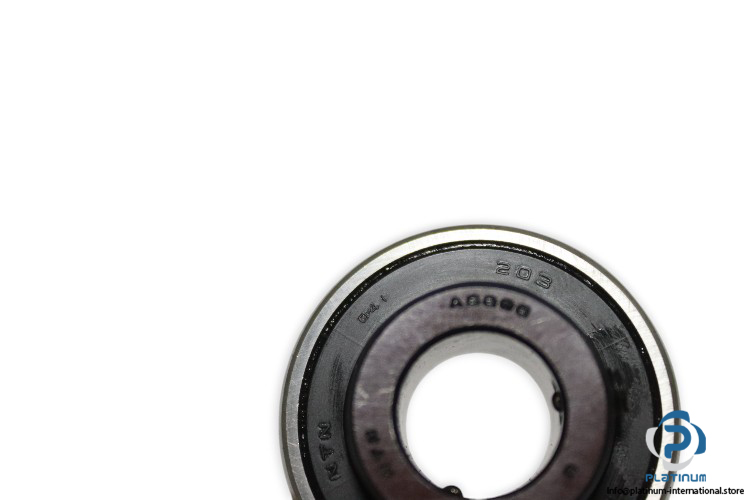

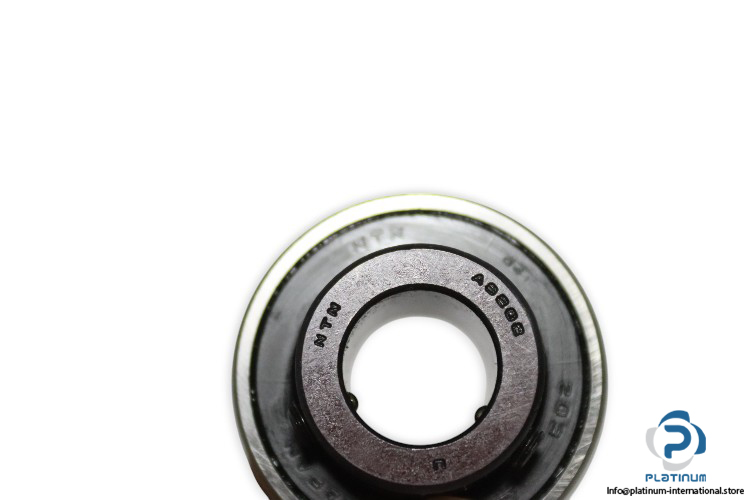

| Bearing Number | AS202 |

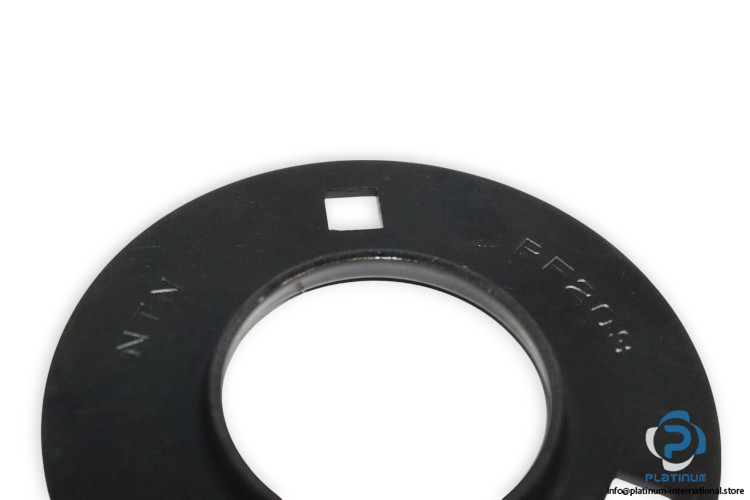

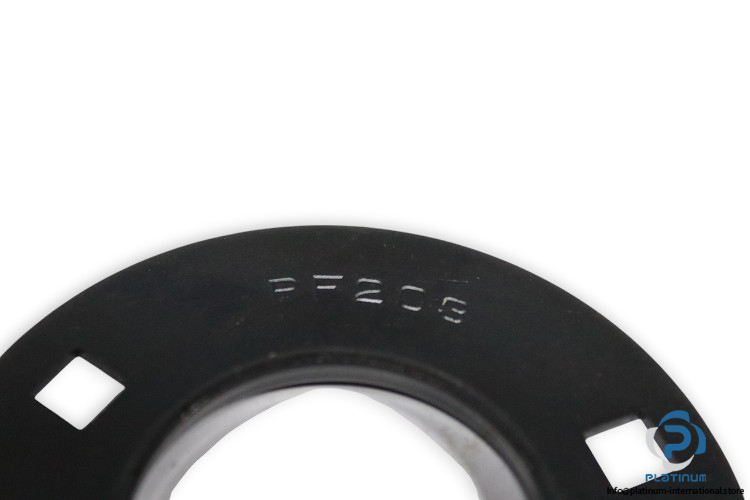

| Housing Number | PF203 |
| Bore Diameter | 15 mm |
| H | 40 mm |
| A | 14 mm |
| B | 22 mm |
| Outside Ring Width | 20 mm |
| Inside Ring Width | 20 mm |
| Static Load Rating | 4600 N |
| Dynamic Load Rating | 9600 N |
| Rotational Speed | 10000 RPM |
| Bore Type | Cylindrical |
| Mounting Type | Three-Bolt Flange |
| Locking Device | Set Screw |
| Material | Pressed Steel Housing |
