OEM Automatic JRM3R Photoelectric Sensor
중고
재고 있음1 단위즉시 배송 가능
Photoelectric Sensor
The OEM Automatic JRM3R photoelectric sensor offers reliable long-distance detection (up to 10,000 mm) with red LED light, NPN/PNP outputs, and IP66 protection. Perfect for industrial automation needs.00010DetectionDistanceIndustrialIP66LEDlongmmNPNOutputPhotocellPhotoelectricPNPReceiverRedSensortechnologyTransmitter
방대한 재고
글로벌 배송
전문 지원
품질 보장

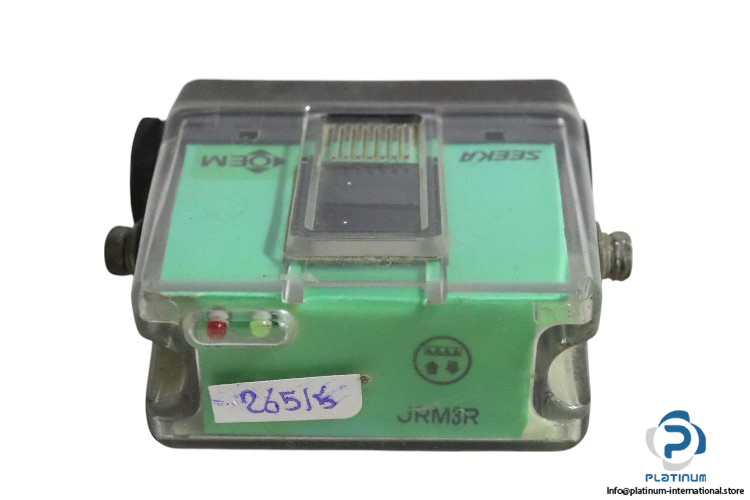

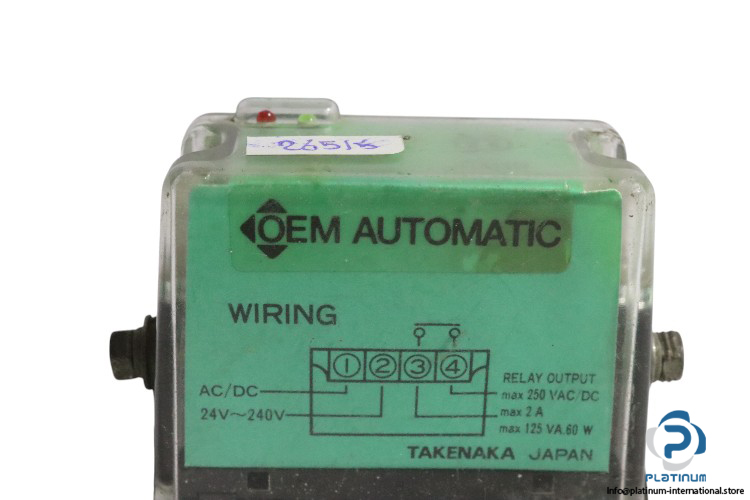

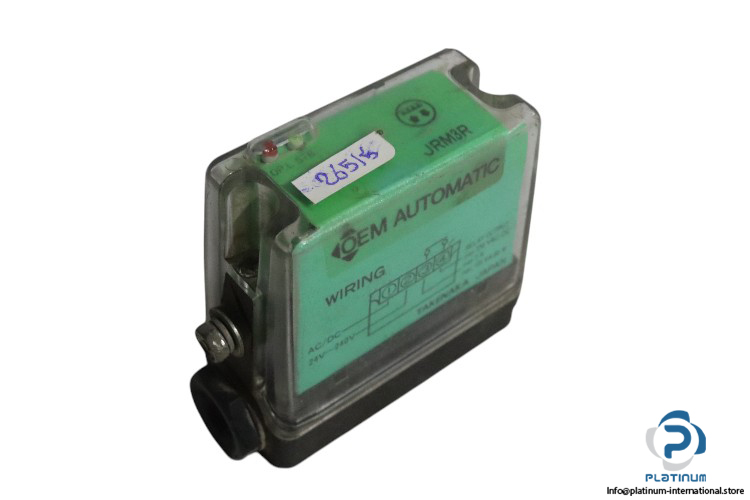

OEM Automatic JRM3R Photoelectric Sensor
The OEM Automatic JRM3R is a high-performance photoelectric sensor designed for reliable object detection over long distances. With a maximum detection range of 10,000 mm and featuring a red LED light type, this sensor offers precise operation with both NPN and PNP outputs. Built with IP66 protection class, it is durable and capable of operating in harsh industrial environments.
Manufacturer: OEM AUTOMATIC
Type: Photoelectric Sensor
Series: J
Model: JRM3R
Technical Data:
- Max Distance: 10000 mm
- Electrical Connection: Cable Entry
- Function: Dark On/Light On
- IP Class: IP66
- Lens Material: Polyacrylic
- Light Type: Red LED
- Output: NPN, PNP
- Output Current Max: 0.1 A
- Photocell Technology: Transmitter / Receiver
- Reaction Time: 0.5 ms
- Temperature Range: -25 to 55 °C
- Voltage DC: 12 to 24 V
- Voltage AC: 240 V
